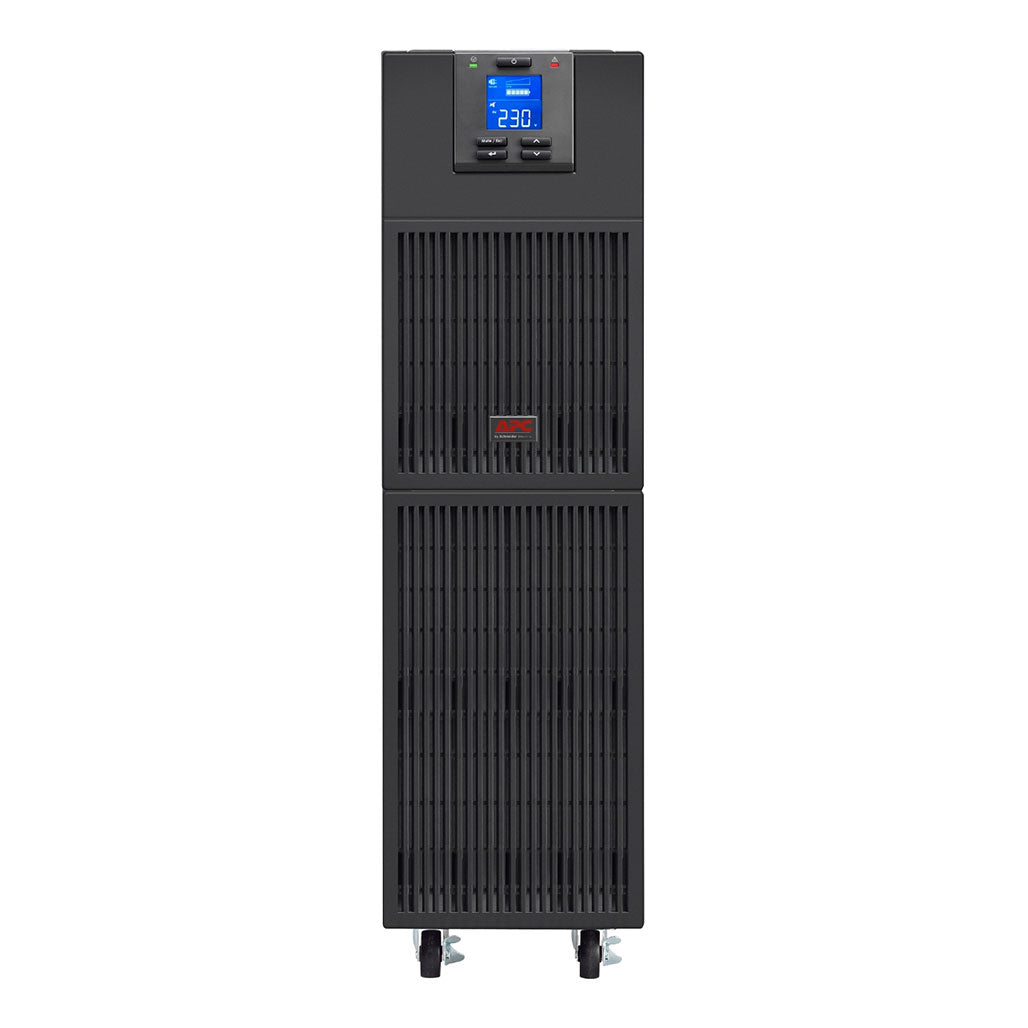

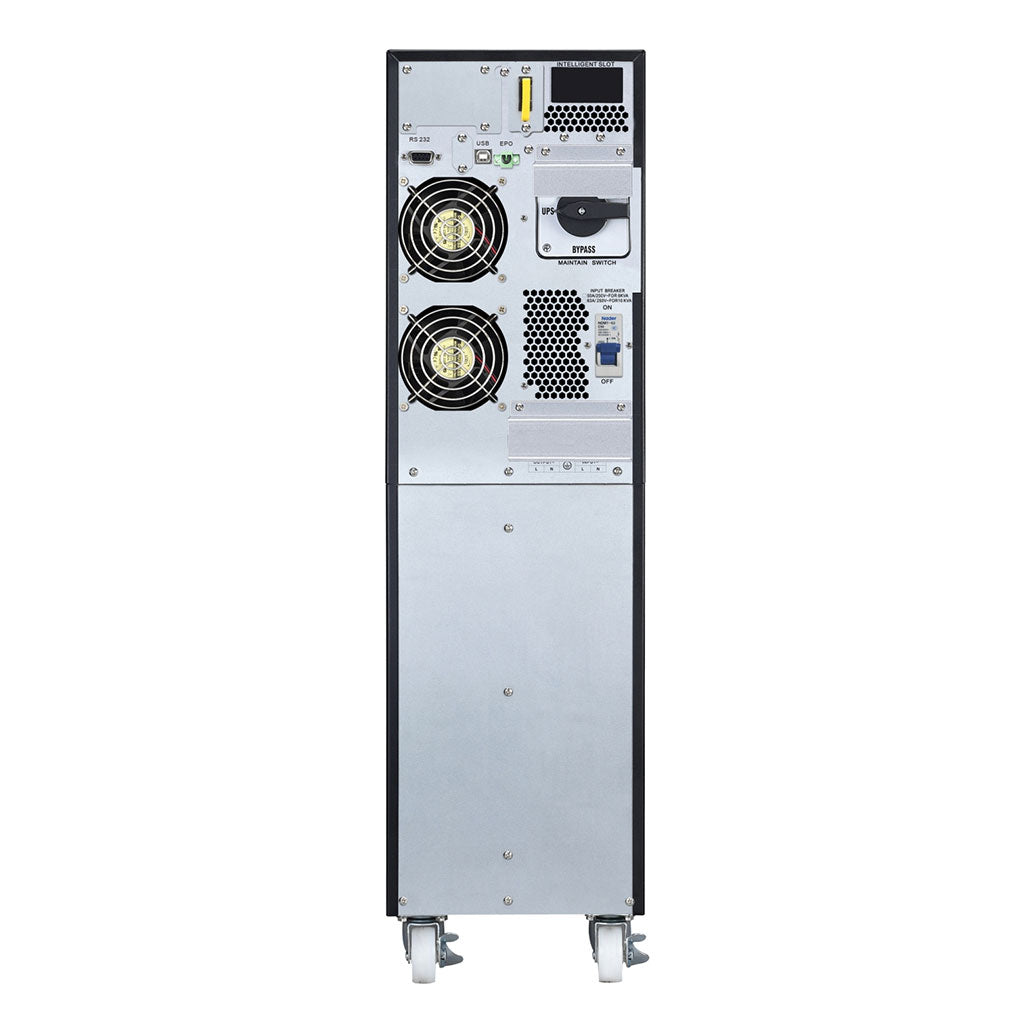

APC Easy UPS On-Line 6kVA/6kW Tower 230V - Advanced Power Protection for Critical Systems
The APC Easy UPS On-Line 6kVA/6kW Tower is engineered to deliver high-quality double-conversion online power protection, ensuring reliable operation for essential systems even in unstable power conditions.
Key Features:
- Rated Power: Delivers 6000 W / 6000 VA, making it ideal for critical applications requiring robust power protection.
- Output Voltage: Configurable for 220V, 230V, or 240V nominal output voltage to fit your specific requirements.
- Efficiency: Achieves 94% efficiency at full load, optimizing energy usage and reducing operational costs.
- Output Voltage Distortion: Maintains a low 1% harmonic distortion for clean and stable power delivery.
- Output Frequency: Synchronizes with mains at 50/60 Hz ± 3 Hz for consistent power supply.
- Load Crest Factor: Supports a 3:1 crest factor for handling peak loads effectively.
- UPS Type: Features double conversion online technology for superior power protection.
- Wave Type: Provides a pure sine wave output, ensuring compatibility with sensitive electronic equipment.
- Bypass: Includes internal automatic and manual bypass to ensure uninterrupted power supply during maintenance.
Input Specifications:
- Main Input Voltage: 230V, with additional support for 220V and 240V.
- Voltage Range: Accommodates a wide input voltage range of 110 - 300V at 60% load and 176 - 300V at full load.
- Input Frequency: Auto-sensing from 40 - 70 Hz for flexible power input.
- Connector Type: Hard wire 3-wire (1P + N + E) for secure connections.
Battery and Runtime:
- Battery Type: Reliable lead-acid battery for consistent power backup.
- Battery Voltage: Operates at 192V for optimal performance.
- Recharge Time: Typical recharge time of 4 hours for efficient recovery.
- Battery Life: Expected life of 3 - 5 years, ensuring long-term reliability.
- Battery Charger Power: Capable of charging at 235W to maintain battery health.
Communications and Management:
- Interface Ports: Equipped with a multifunction LCD status and control console for easy monitoring and management.
- Alarm System: Provides distinct alarms for battery operation, low battery, and overload conditions.
- Free Slots: Includes one available slot for additional management options.
- Surge Protection: Offers a 600 Joules surge energy rating for enhanced protection against power surges.
Physical Specifications:
- Dimensions: Features a compact design with a height of 68.5 cm, width of 19 cm, and depth of 37.4 cm.
- Weight: Net weight of 54 kg, with a shipping weight of 66 kg for efficient handling and installation.
- Color: Elegant black (RAL 7010) finish for a professional look.
- Mounting Position: Vertical installation with no preference for mounting location.
Environmental and Safety Standards:
- Operating Temperature: Designed for operation in temperatures ranging from 0 to 40 °C.
- Humidity: Operates effectively in environments with 0 - 95% relative humidity (non-condensing).
- Elevation: Suitable for use up to 3000 meters above sea level.
- Storage Conditions: Can be stored in temperatures from -15 to 60 °C and humidity levels from 0 - 95% (non-condensing).
- Noise Level: Operates quietly with an acoustic level of 55 dBA.
- Thermal Dissipation: Manages 1172 BTU/hr of thermal dissipation for effective heat management.
- Protection Class: IP20 rating ensures solid object protection.
Included Accessories:
- Cables: Includes 1 USB cable, 1 RS-232 configuration cable, and 1 user manual for easy setup and use.
Ensure your critical systems are protected with the APC Easy UPS On-Line 6kVA/6kW Tower, offering high efficiency, reliable performance, and comprehensive management features.
