Main Input Voltage | 230 V |
---|---|
Product or component type | Uninterruptible power supply (UPS) |
Other Input Voltage | 220 V 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V 240 V |
Rated power in W | 800 W |
Rated power in VA | 1000 VA |

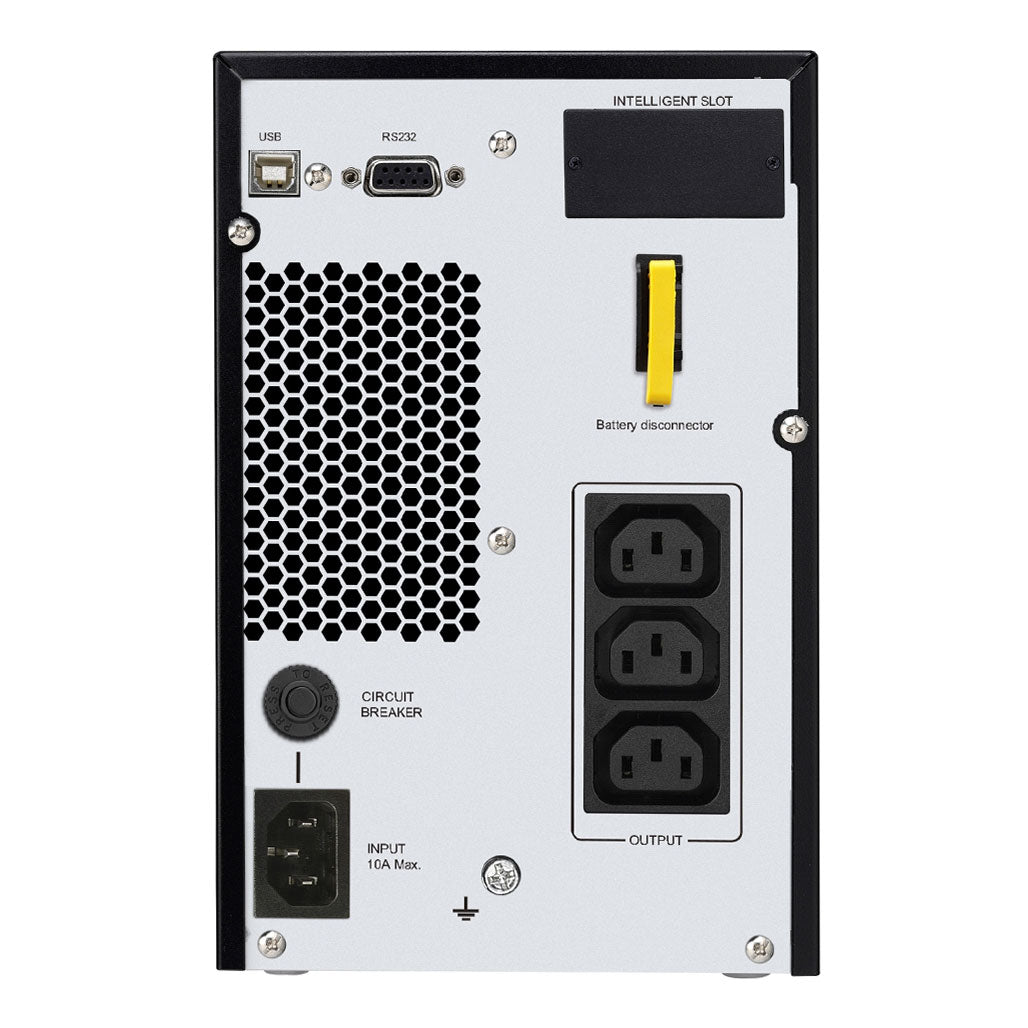

Input Connection Type | IEC 60320 C14 |
output connection type | 3 IEC 60320 C13 |
Cable length | 1.50 m |
Number of cables | 1 |
Provided equipment | 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable user manual |
Run Time |
View Runtime Graph
|
---|---|
Efficiency |
View Efficiency Graph
|
battery type | Lead-acid battery |
battery voltage | 24 V |
Number of battery filled slots | 1 |
Number of battery free slots | 0 |
Battery recharge time | 4 h |
Battery life | 3…5 year(s) |
Replacement battery |
APCRBCV203
|
Battery charger power | 30 W rated |
Max runtime | 4 min |
---|---|
Number of power module filled slots | 0 |
Number of power module free slots | 0 |
Redundant | No |
Colour | Black (RAL 7010) |
---|---|
Height | 22.3 cm |
Width | 14.5 cm |
Depth | 28.8 cm |
Net weight | 9.3 kg |
Mounting location | Front |
Mounting support | Floor |
Mounting preference | No preference |
Mounting mode | Not rack-mountable |
USB compatible | Yes |
Mounting position | Vertical |
Input voltage limits | 110...285 V half load 160...280 V full load |
---|---|
Network frequency | 40...70 Hz auto sensing |
Maximum configurable power in VA | 1000 VA |
---|---|
Maximum configurable power in W | 800 W |
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
Harmonic distortion | 3 % |
UPS type | Double conversion online |
Wave type | Sine wave |
Efficiency | 88 % (full load) |
additional information | Configurable for 220 : 230 or 240 nominal output voltage |
bypass type | Internal bypass (automatic and manual) |
Crest factor | 3 : 1 |
product certifications | CE UKCA EAC TISI |
---|---|
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Ambient air temperature for operation | 0…40 °C |
---|---|
Relative humidity | 0…95 % non-condensing |
Operating altitude | 0...3000 m |
Ambient air temperature for storage | -20…50 °C |
Storage Relative Humidity | 0…95 % non-condensing |
Storage altitude | 0…15000 m |
Acoustic level | 50 dBA |
Heat dissipation | 372 Btu/h |
IP degree of protection | IP20 |
Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
---|---|
Free slots | 1 |
control panel | Multifunction LCD status and control console |
Surge energy rate | 600 J |
---|
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 33 cm |
Package 1 Width | 23.5 cm |
Package 1 Length | 36.5 cm |
Package 1 Weight | 10.6 kg |
