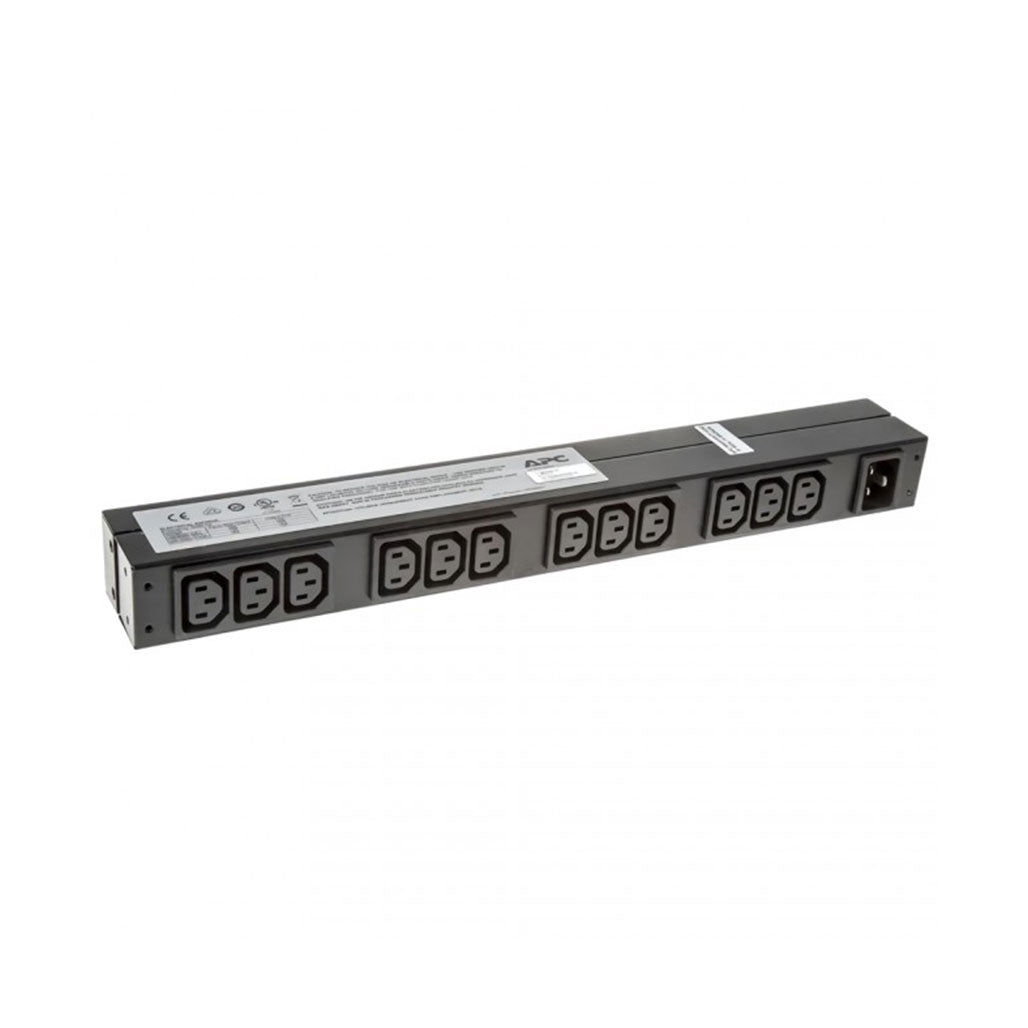

APC NetShelter Basic Rack PDU – Efficient Power Distribution for Data Centers
The APC NetShelter Basic Rack PDU is designed to enhance manageability and efficiency in your data center or server room. With a robust power distribution setup, this PDU offers reliable performance and essential monitoring capabilities.
Key Features:
- Main Input Voltage: 200V, 208V, 230V
- Main Output Voltage: 208V, 230V
- Load Capacity: 3.7kW at 230V or 3.3kW at 208V
- Input Connection Type: IEC 60320 C20
- Number of Rack Units: 1U
- Cable Length: 8.2 ft (2.50 m)
- Number of Cables: 1
- Number of Power Outlets: 12 x IEC 60320 C13
Physical Characteristics:
- Color: Black
- Height: 1.73 in (4.4 cm)
- Width: 17.60 in (44.7 cm)
- Depth: 2.24 in (5.7 cm)
- Net Weight: 4.52 lb (2.05 kg)
- Mounting Location: Front or Rear
- Mounting Mode: Rack-mounted
- Mounting Position: Horizontal
Input and Output:
- Input Current Limits: 16 A
- Input Frequency: 50/60 Hz
- Number of Outlets: 12 IEC 60320 C13
- Real-Time Monitoring: Monitors connected loads and provides user-defined alarms to prevent circuit overloads.
Certifications and Standards:
- Certifications: CUL Listed, CE, UL Listed, VDE
- Standards: UL 60950
Environmental Specifications:
- Ambient Temperature for Operation: 32…113 °F (0…45 °C)
- Relative Humidity for Operation: 0…95 %
- Operating Altitude: Up to 10,000 ft
- Ambient Temperature for Storage: -13…149 °F (-25…65 °C)
- Storage Relative Humidity: 0…95 %
- Storage Altitude: Up to 50,000 ft (15,240 m)
Included Accessories:
- Installation Guide
- Rack Mounting Brackets
Ordering and Shipping Details:
- GTIN: 731304213055
-
Packaging:
- Unit Type: PCE
- Number of Units in Package: 1
- Package Dimensions: Height 2.76 in (7 cm), Width 18.27 in (46.4 cm), Length 9.02 in (22.9 cm)
- Package Weight: 8.01 lb (3.632 kg)
Ensure efficient power management and protection for your critical equipment with the APC NetShelter Basic Rack PDU. Ideal for data centers and server rooms, it provides reliable power distribution and essential monitoring capabilities.
