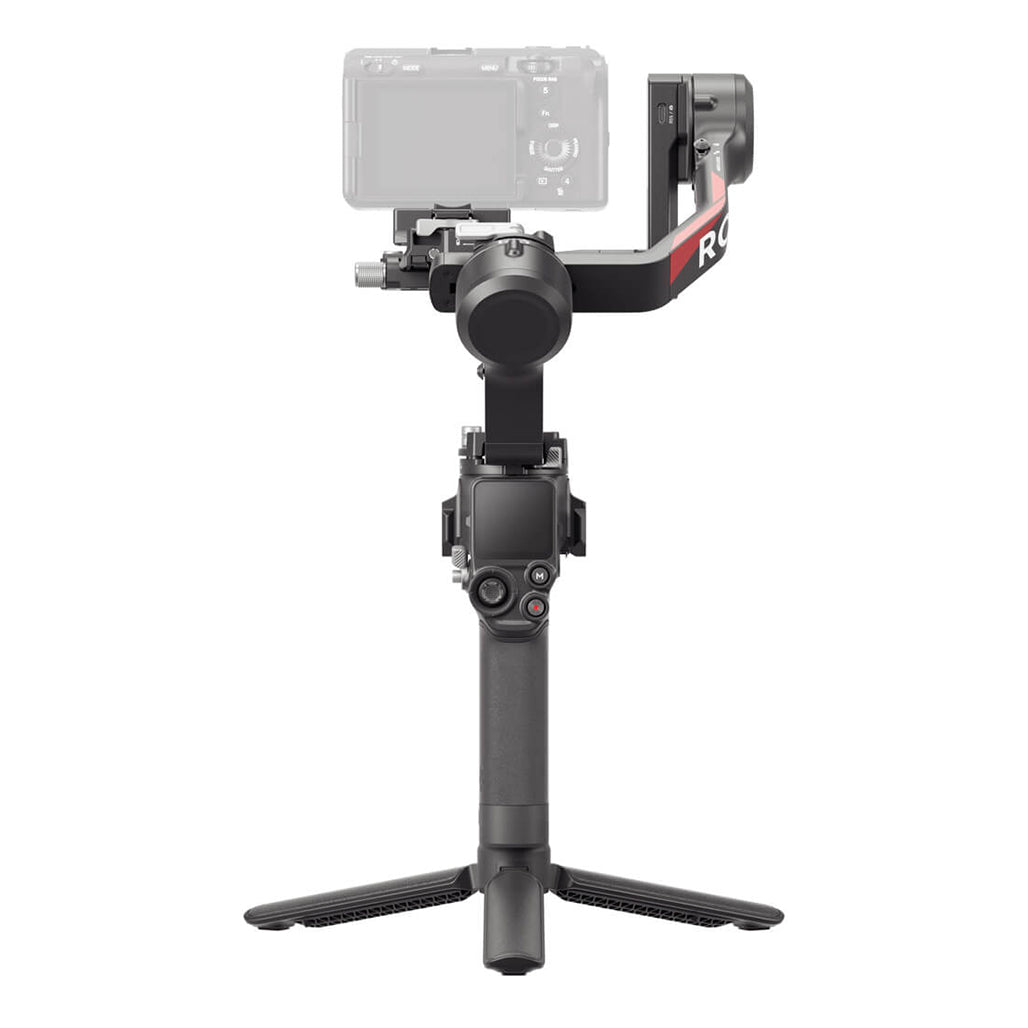

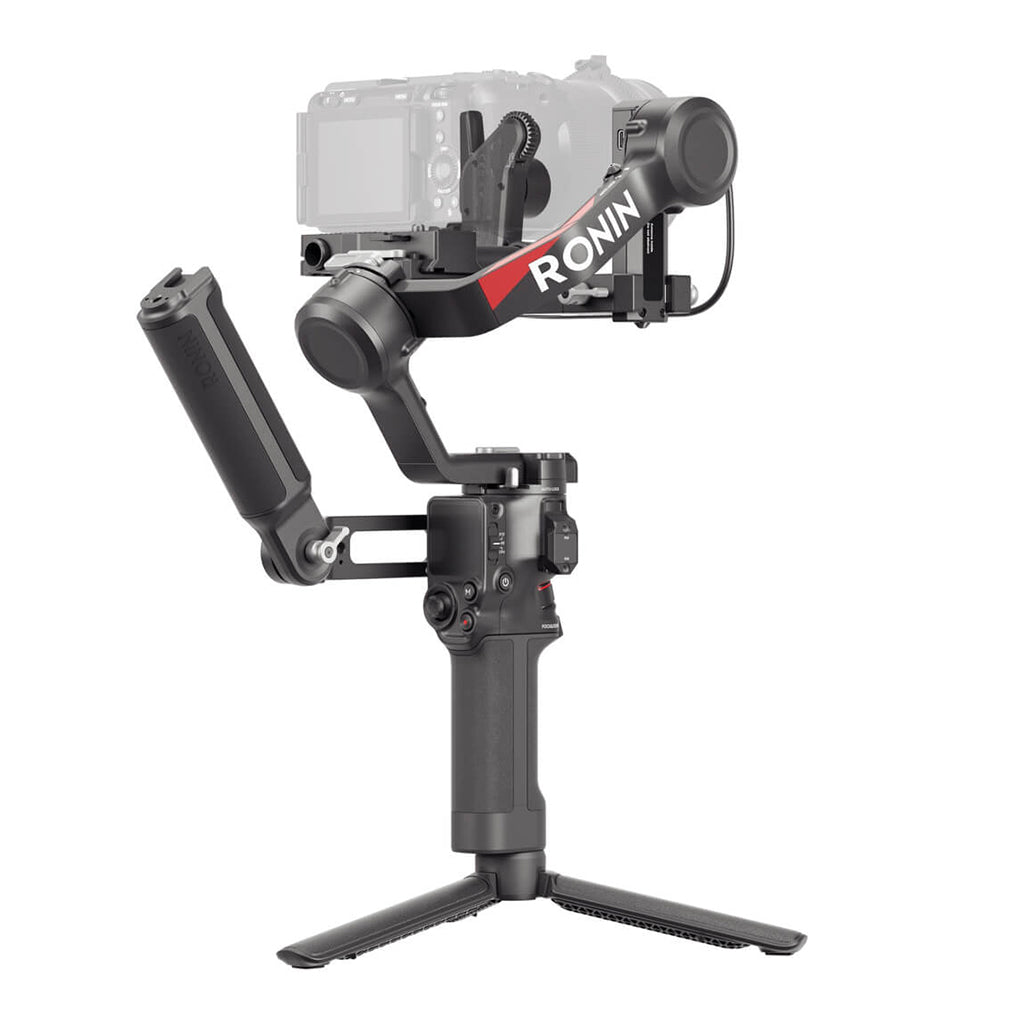

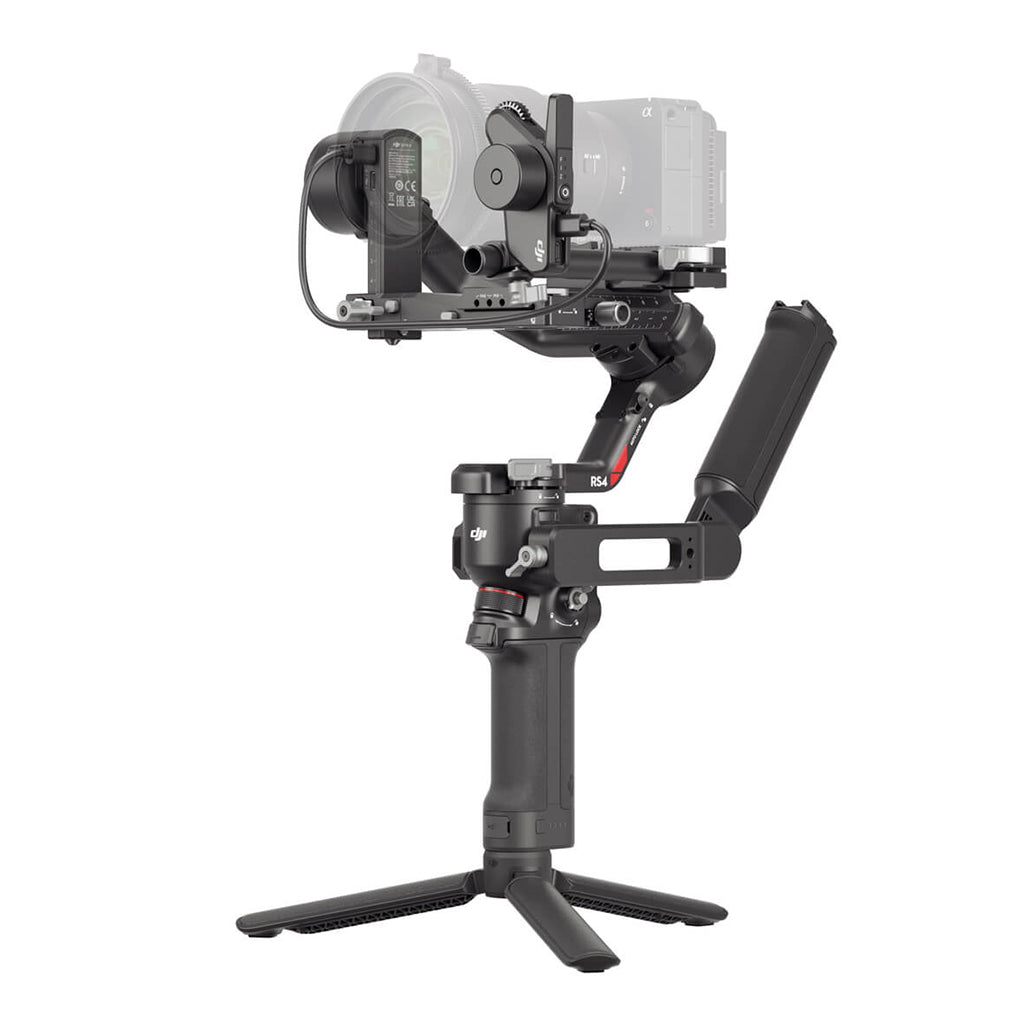

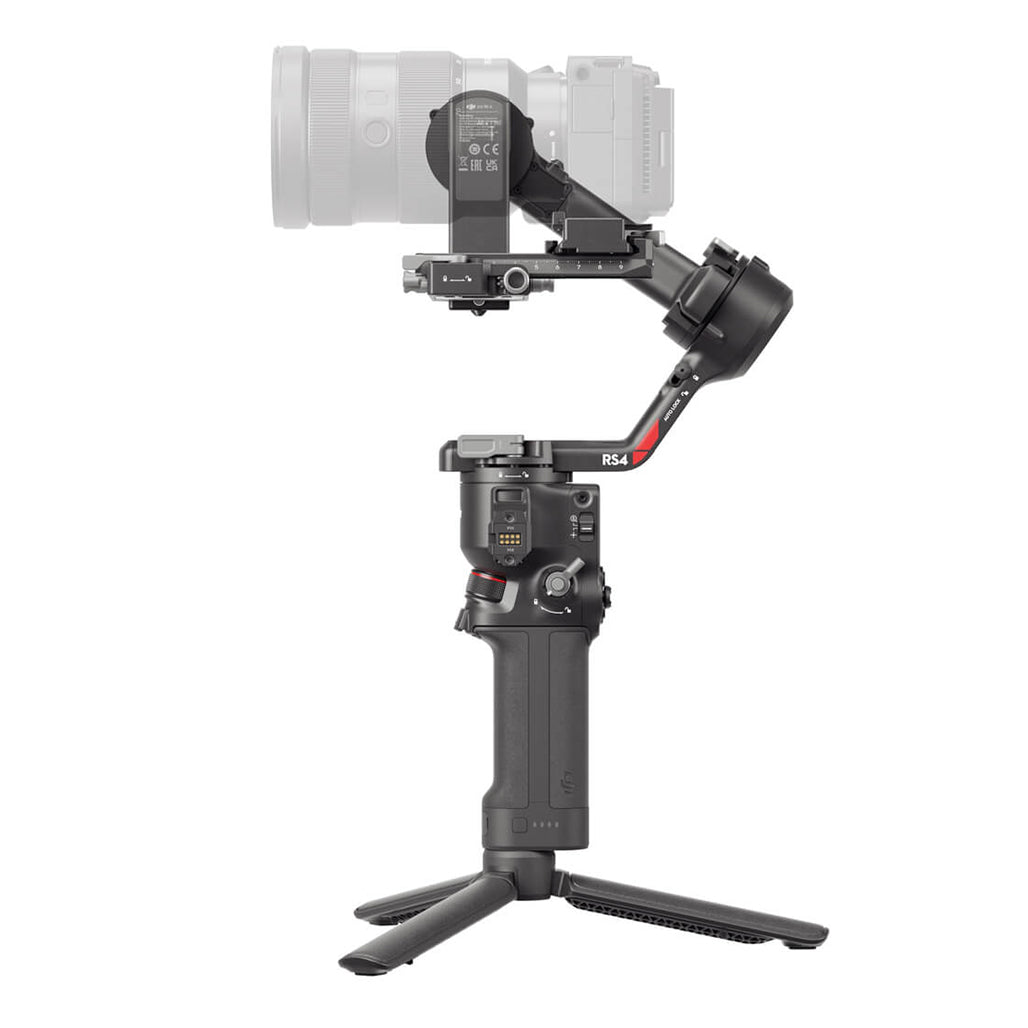

DJI RS 4 Combo - Gimbal Stabilizer

The DJI RS 4 Combo is your gateway to cinematic excellence, offering a seamless blend of power, versatility, and precision. Designed for filmmakers who seek to push the boundaries of their creativity, this advanced gimbal stabilizer is engineered to deliver smooth, stable, and professional-grade footage. Its lightweight yet durable construction ensures that you can capture stunning visuals in any environment, while its intuitive design allows for effortless operation, making it an essential tool for both seasoned professionals and aspiring creators alike.

One of the standout features of the DJI RS 4 Combo is its second-generation native vertical shooting capability, which simplifies the process of switching between horizontal and vertical shooting modes. This innovative feature eliminates the need for additional accessories, allowing you to transition smoothly and focus on capturing the perfect shot. Additionally, the advanced stabilization algorithm, combined with Teflon™-coated axis arms, provides superior stability, even during dynamic movements, ensuring that every frame is captured with unparalleled clarity.

Key Features:

• Second-Gen Vertical Shooting: The DJI RS 4 Combo introduces a new level of convenience with its second-generation native vertical shooting, enabling quick and easy transitions between shooting modes.

• Advanced Stabilization: Equipped with the fourth-generation RS stabilization algorithm and Teflon™-coated axis arms, this gimbal delivers smooth, stable footage in even the most challenging shooting scenarios.

• Automated Axis Locks: The second-generation automated axis locks simplify the setup process, allowing for rapid startup and sleep mode activation, ensuring you never miss a moment.

• Intuitive OLED Touchscreen: The RS 4 Combo features an OLED touchscreen with an auto-lock function, providing easy access to settings and preventing accidental adjustments during filming.

• Bluetooth Wireless Control: Dual-Mode Bluetooth technology enables seamless control of camera functions, including focus, zoom, and shutter release, all from the gimbal’s interface.

• Customizable Trigger Function: Tailor the gimbal's response to your shooting style with customizable trigger functions, including FPV mode for immersive first-person footage.

• Extensive Accessory Compatibility: The DJI RS 4 Combo is compatible with a wide range of accessories, from focus motors to carrying cases, enhancing your creative capabilities.

• Long-Lasting Battery Life: The high-capacity battery grip offers up to 12 hours of runtime, with support for fast charging, ensuring you're always ready to shoot.

Specifications:

• Peripheral:

  • Accessory Port: Ronin Series Accessories (RSA)/NATO Ports
  • 1/4"-20 Mounting Hole
  • Cold Shoe
  • Video Transmission Port (USB-C)
  • RSS Camera Control Port (USB-C)
  • Focus Motor Port (USB-C)

• Battery:

  • Model: BHX711-3000-7.2‌‌V
  • Type: LiPo 2S
  • Capacity: 3000 mAh
  • Energy: 21 Wh
  • Max Runtime: 12 hours
  • Charging Time: Approx. 2.5 hours
  • Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

• Connections:

  • Bluetooth 5.1
  • Charging Port (USB-C)
  • Ronin App Requirements: iOS 11.0 or above, Android 8.0 or above

• Languages Supported by the Touchscreen:

  • English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

• Working Performance:

  • Tested Payload: 3 kg (6.6 lbs)
  • Maximum Controlled Rotation Speed: Pan: 360°/s, Tilt: 360°/s, Roll: 360°/s

• Mechanical Range:

  • Pan Axis: 360° continuous rotation
  • Roll Axis: -95° to +240°
  • Tilt Axis: -112° to +214°

• Mechanical & Electrical Properties:

  • Operating Frequency: 400-2.4835 GHz
  • Bluetooth Transmitter Power: < 8 dBm
  • Operating Temperature: -20° to 45° C (-4° to 113° F)

• Weight:

  • Gimbal: Approx. 1066 g (2.35 lbs)
  • Grip: Approx. 203 g (0.45 lbs)
  • Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
  • Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)

• Dimensions:

  • Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
  • Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

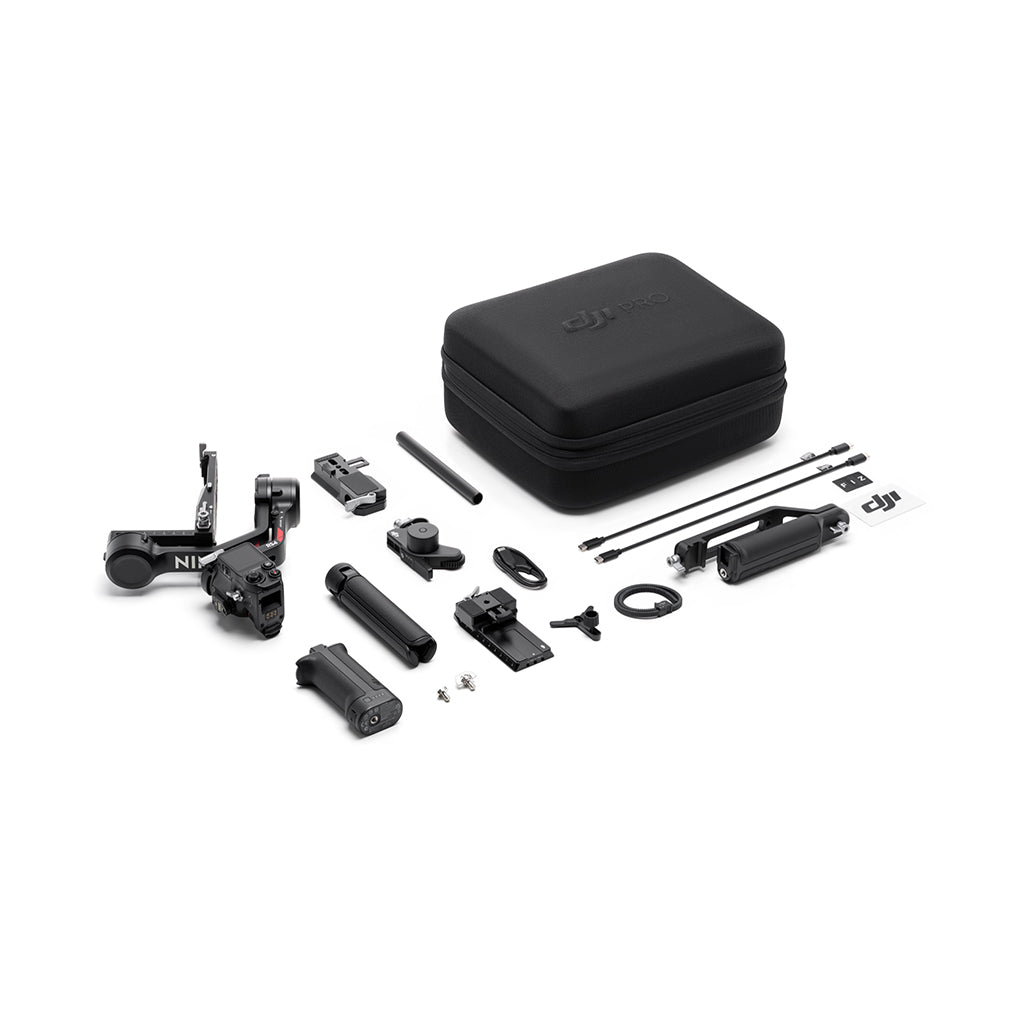

In the Box:

• Gimbal x 1
• BG21 Battery Grip x 1
• Quick-Release Plate (Arca-Swiss/Manfrotto) x 1
• Extended Grip/Tripod (Plastic) x 1
• Lens-Fastening Support x 1
• USB-C Charging Cable (40 cm) x 1
• Multi-Camera Control Cable (USB-C, 30 cm) x 1
• Screw Kit x 1
• DJI Logo Sticker x 1
• Briefcase Handle x 1
• Carrying Case x 1
• Focus Pro Motor x 1
• Focus Pro Motor Rod Mount Kit x 1
• FIZ Sticker x 1
• Focus Gear Strip x 1

The DJI RS 4 Combo is the perfect choice for filmmakers who demand precision, versatility, and reliability in their equipment. Its advanced features, intuitive controls, and robust build make it an indispensable tool for capturing professional-grade cinematic footage, whether you're working on a large-scale production or a personal project. With the DJI RS 4 Combo, every shot will reflect the highest level of craftsmanship and creativity.
