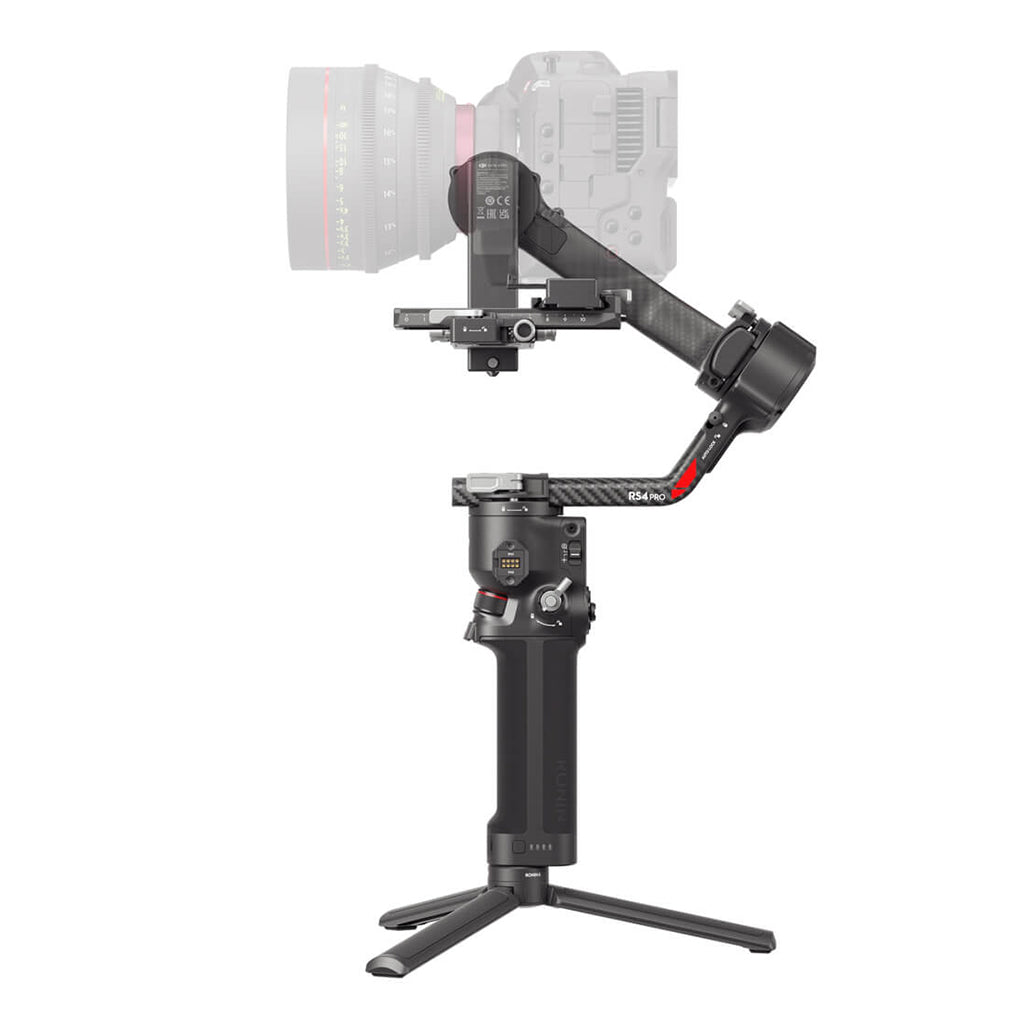

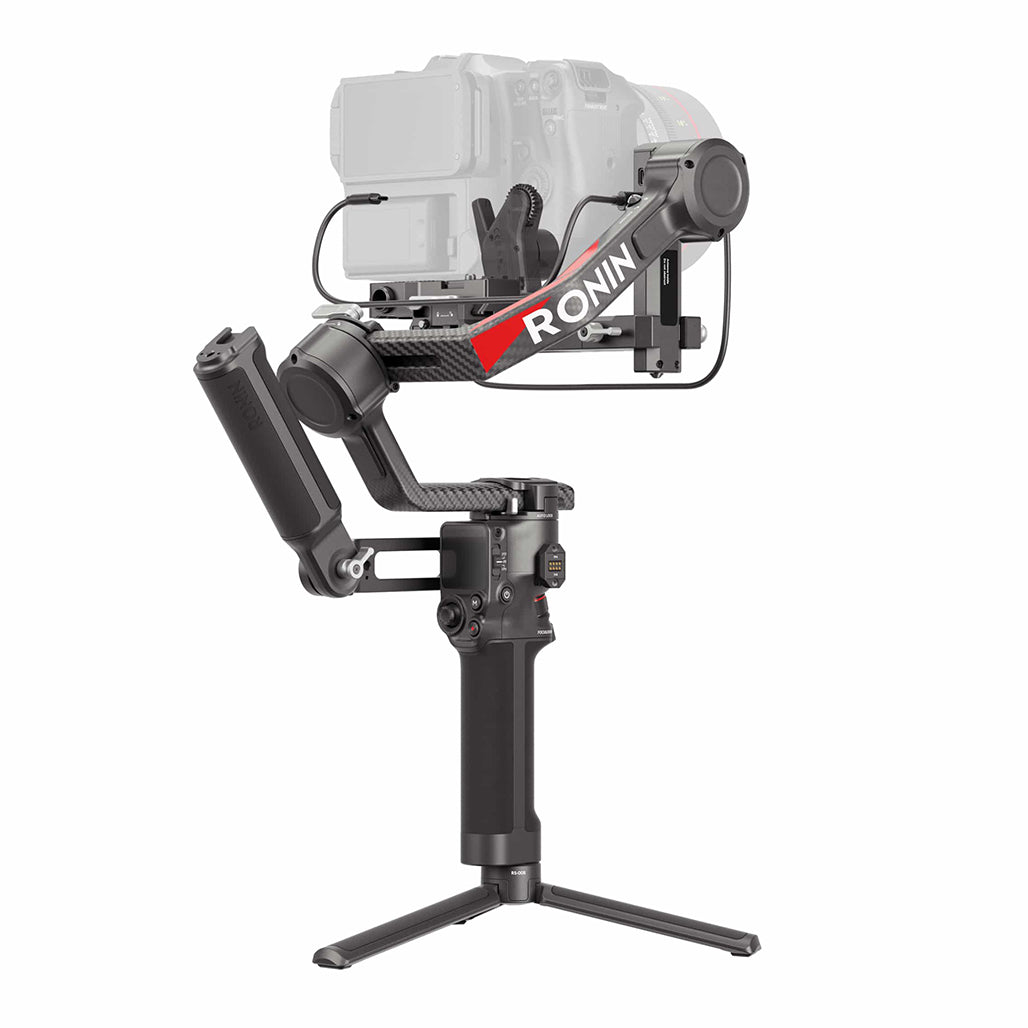

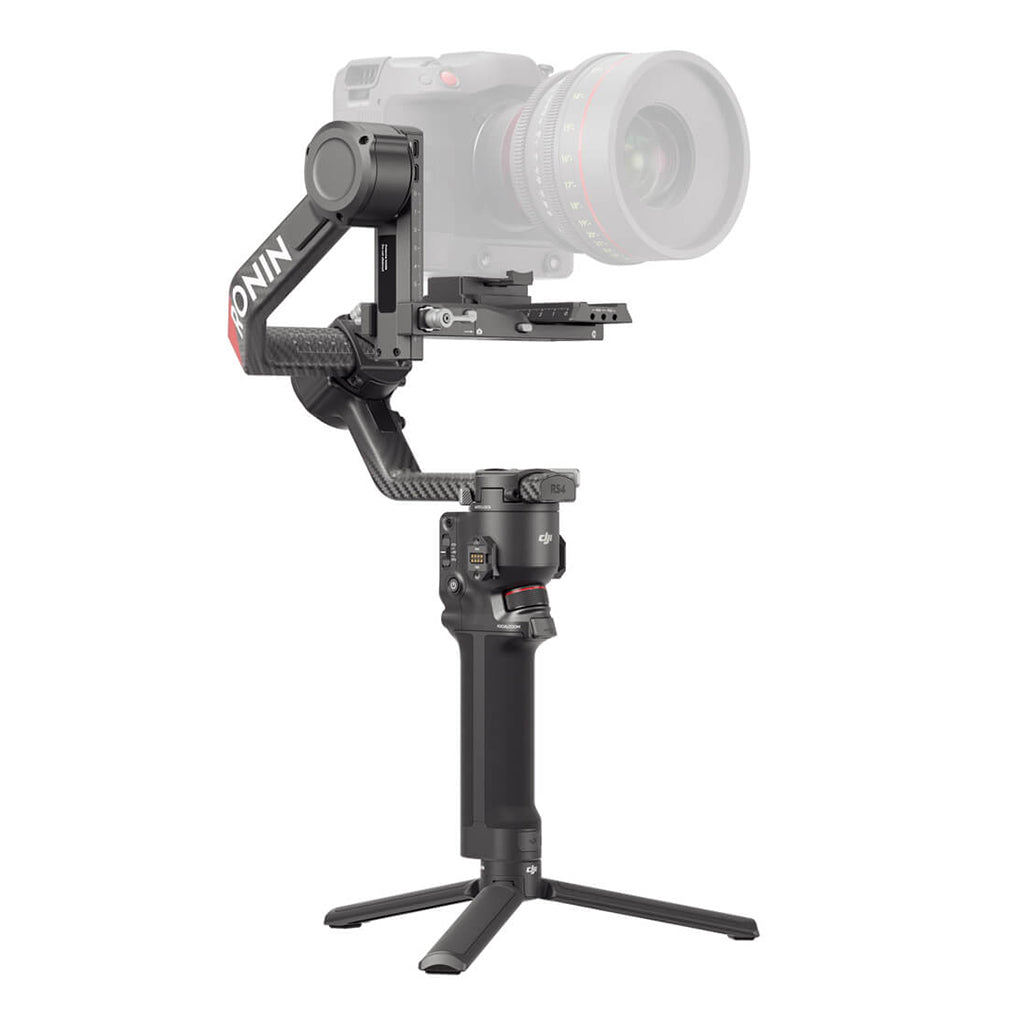

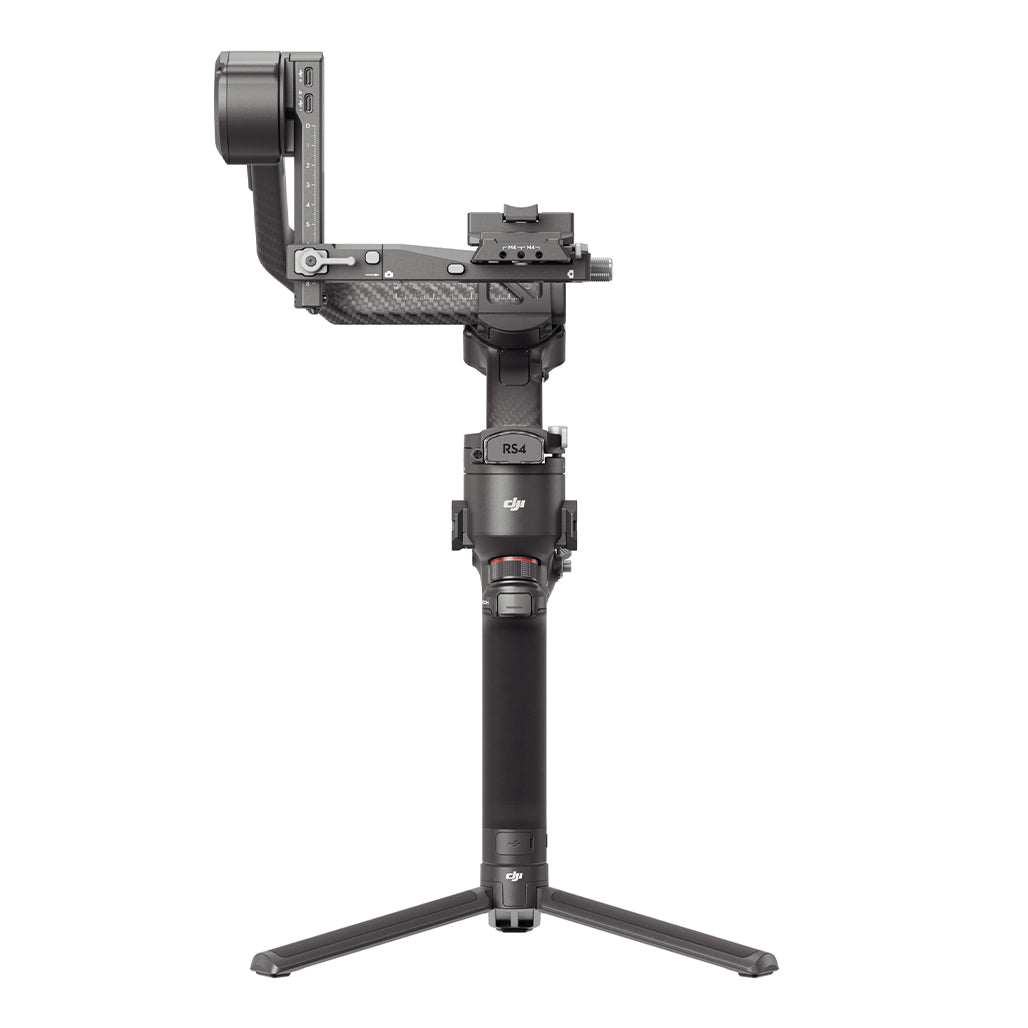

The DJI RS 4 Pro Combo is a state-of-the-art gimbal stabilizer designed for professional filmmakers and content creators seeking unparalleled stabilization and control. Combining advanced technology with a comprehensive accessory package, this combo offers everything needed to achieve flawless, cinematic shots with ease. From its powerful payload capacity to its versatile shooting modes, the RS 4 Pro Combo is engineered to enhance every aspect of your filmmaking process.
Equipped with carbon fiber axis arms and a substantial 4.5kg (10lbs) payload capacity, the RS 4 Pro Combo ensures optimal performance with various mirrorless and cinema cameras. The innovative horizontal plate design facilitates native vertical shooting, allowing for a seamless transition between shooting orientations. Enhanced balance is achieved through dual rolling bearings on the roll axis and a Teflon™ coating on all three axes, ensuring smooth operation even with heavier camera setups.
Key Features:
- High Payload Capacity: Supports up to 4.5kg (10lbs), accommodating a range of camera and lens configurations.
- Carbon Fiber Construction: Lightweight yet sturdy design for enhanced durability and stability.
- Innovative Vertical Shooting: Native vertical shooting capability with no need for additional accessories.
- Dual Rolling Bearings: Smooth roll axis adjustments with dual bearings for greater stability.
- Teflon™ Coating: Reduces friction for effortless balancing of heavy cameras.
- OLED Touchscreen: Features auto-lock functionality to prevent accidental touches and extend battery life.
- Automated Axis Locks: Next-generation locks enhance efficiency and reduce gimbal shakes.
- Increased Motor Torque: 20% increase in torque across all axes for greater responsiveness and tracking accuracy.
- Versatile Shooting Modes: Includes Car Mount mode and 4th-Gen RS Stabilization Algorithm for diverse shooting scenarios.
- Precise Lens Control: Joystick mode switch supports Power Zoom and Clear Image Zoom for precise lens adjustments.
- Comprehensive Accessory Kit: Includes gimbal, battery grip, mounting plates, cables, and more, including the Ronin Image Transmitter and Focus Pro Motor.
Specifications:
Peripheral Ports:
- Accessory Port
- Ronin Series Accessories (RSA)/NATO Ports
- 1/4"-20 Mounting Hole
- Cold Shoe
- Video Transmission/LiDAR Range Finder Port (USB-C)
- RSS Camera Control Port (USB-C)
- Focus Motor Port (USB-C)
Battery:
- Model: BG30-1950mAh-15.4V
- Type: LiPo 4S
- Capacity: 1950 mAh
- Energy: 30 Wh
- Max Runtime: 13 hours
- Charging Time: Approx. 1.5 hours
- Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections:
- Bluetooth 5.1
- Charging Port (USB-C)
- Ronin App Requirements: iOS 11.0 or above, Android 8.0 or above
- Languages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance:
- Tested Payload: 5 kg (10 lbs)
- Maximum Controlled Rotation Speed: Pan: 360°/s, Tilt: 360°/s, Roll: 360°/s
- Mechanical Range: Pan Axis: 360° continuous rotation, Roll Axis: -95° to +240°, Tilt Axis: -112° to +214°
Mechanical & Electrical Properties:
- Operating Frequency: 400-2.4835 GHz
- Bluetooth Transmitter Power: < 8 dBm
- Operating Temperature: -20° to 45° C (-4° to 113° F)
- Weight:
- Gimbal: Approx. 1242 g (2.74 lbs)
- Grip: Approx. 265 g (0.58 lbs)
- Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
- Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs)
- Dimensions:
- Folded: 271×283×75 mm (L×W×H)
- Unfolded: 416×223×202 mm (L×W×H)
DJI Ronin Image Transmitter:
- Connections: Power/Communication Port (USB-C), HDMI Port (Mini HDMI), RSS Camera Control Port (USB-C), Expansion Port, Cold Shoe
- Operating Frequency: 2.400-2.4835 GHz, 725-5.850 GHz
- Weight: 126 g (0.27 lbs)
- Dimensions: 82×63×24 mm (L×W×H)
- Transmitter Power (EIRP):
- 2.400-2.4835 GHz: < 25 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
- 725-5.850 GHz: < 25 dBm (FCC/SRRC), < 14 dBm (CE)
- Battery:
- Capacity: 2970 mAh
- Compatible Charger: 5 V/2 A
- Charging Time: Approx. 2.5 hours
- Operating Time: Approx. 3.5 hours
- Transmission Range:
- 200 m (SRRC/FCC)
- 100 m (CE)
- Latency: 60 ms
- Operating Current/Voltage: 900 mA/3.7 V
- Operating Temperature: 0° to 45° C (32° to 113° F)

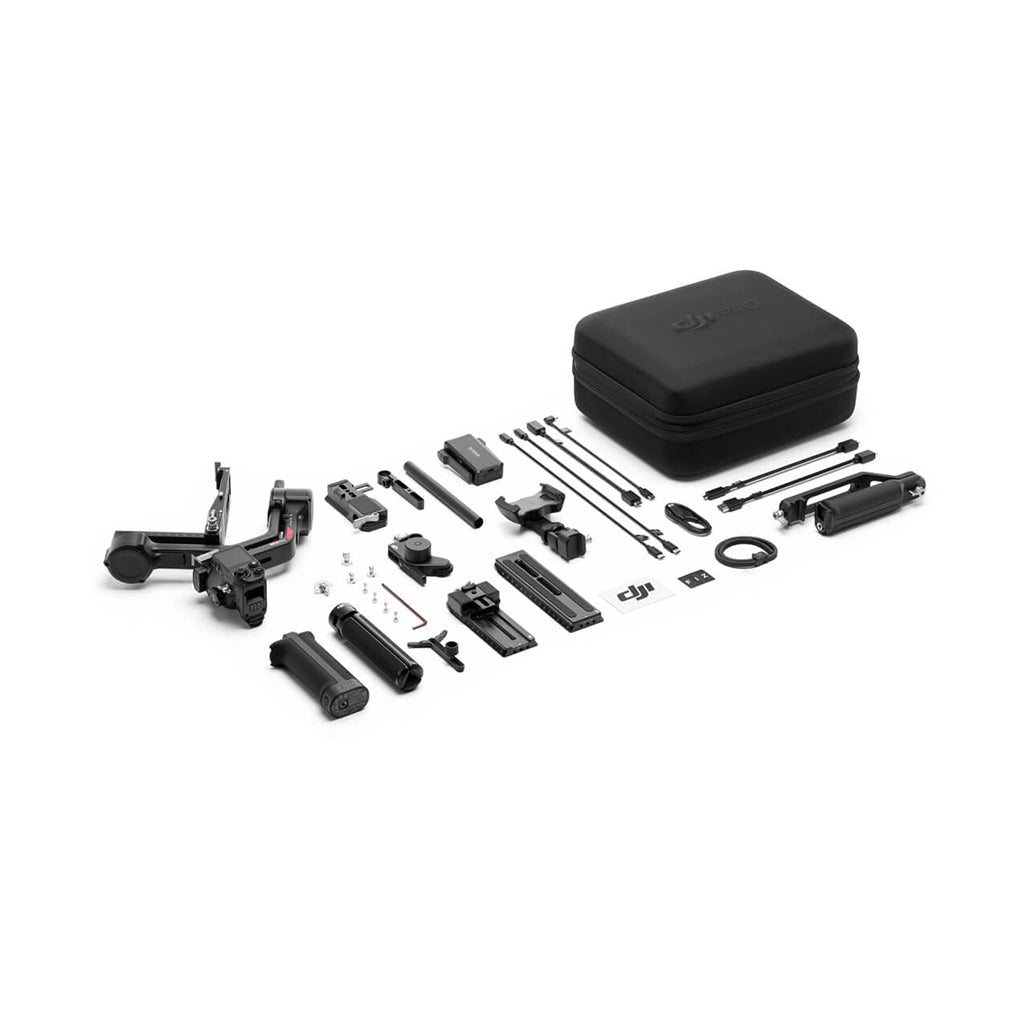

In the Box:
- Gimbal × 1
- BG30 Battery Grip × 1
- Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
- Extended Grip/Tripod (Metal) × 1
- Briefcase Handle × 1
- Lens-Fastening Support (Extended) × 1
- Multi-Camera Control Cable (USB-C, 30 cm) × 2
- USB-C Charging Cable (40 cm) × 1
- Screw Kit × 1
- Carrying Case × 1
- DJI Logo Sticker × 1
- USB-C Power Cable (20 cm) × 1
- Mini-HDMI to Mini-HDMI Cable (20 cm) × 1
- Mini-HDMI to HDMI Cable (20 cm) × 1
- Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
- Ronin Image Transmitter × 1
- Focus Pro Motor × 1
- FIZ Sticker × 1
- Focus Pro Motor Rod Mount Kit × 1
- Focus Gear Strip × 1
- Lower Quick-Release Plate (Extended) × 1
- Phone Holder × 1
The DJI RS 4 Pro Combo provides a comprehensive and advanced solution for filmmakers seeking to enhance their production capabilities. Its blend of powerful features, extensive accessories, and versatile shooting modes makes it an essential tool for capturing stunning, stable footage in any filming environment.
