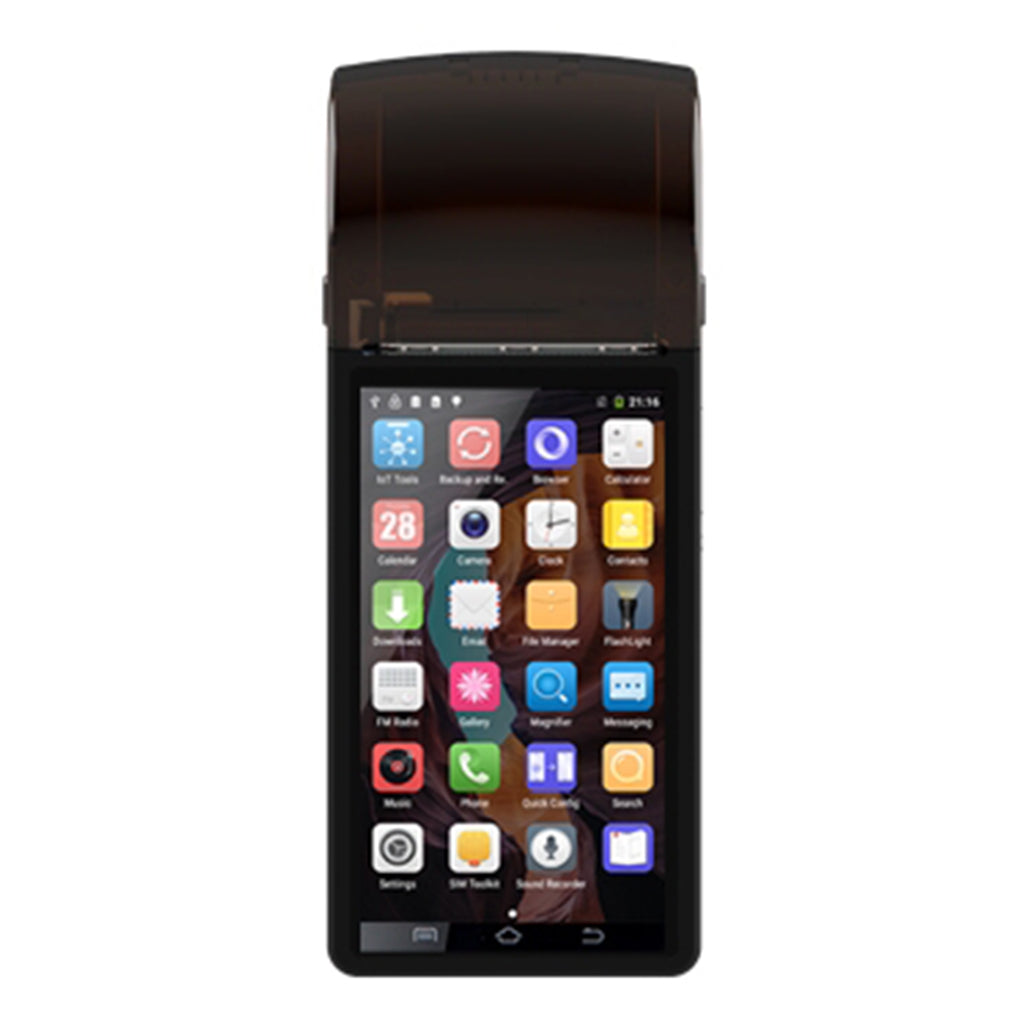

The iMachine AP02 Mobile POS Terminal offers a comprehensive solution for retail and service environments with its versatile features and robust performance. Designed for efficiency and convenience, this mobile POS terminal integrates essential functions such as a built-in thermal receipt printer and a high-capacity battery to support extended use throughout the day. The terminal’s 5-inch capacitive touch display provides clear and responsive interaction, while its connectivity options ensure reliable operation in various settings.
Equipped with a high-resolution rear camera and comprehensive data communication capabilities, the iMachine AP02 is ideal for both transaction processing and data collection. Its durable build and user-friendly interface make it a valuable tool for managing point-of-sale operations effectively.
Key Features:
- Built-In Thermal Receipt Printer: Includes a 58mm thermal receipt printer with a printing speed of 50mm/s, allowing for quick and efficient receipt generation.
- 5-Inch Capacitive Touch Display: Features a 480P capacitive touch screen, providing a responsive and clear interface for easy operation.
- Connectivity Options: Supports 3G full network and 2.4GHz Wi-Fi for reliable wireless communication. Also includes Bluetooth 4.0 for additional connectivity.
- High-Capacity Battery: Equipped with a 6000mAh lithium battery to ensure long-lasting performance throughout the day.
- Versatile Camera: Provides a choice between 2MP and 5MP rear cameras for high-quality image capture.
Specifications:
-
Performance Parameters:
- CPU: Cortex-A7 Quad-Core 1.3GHz
- OS: Android 6.0/7.0/8.1
- Memory: 1GB RAM + 8GB ROM
- SIM Card Slot: 1 x Micro SIM card
- Expansion Storage: 1 x Micro SD Card (up to 32GB)
-
Physical Parameters:
- Display: 5.0” HD, 480×854, Capacitive Touch
- Battery: Unremovable Lithium Battery, 3.7V/6000mAh
- Dimensions: 192mm × 80mm × 24mm
- Weight: 350 g
-
Ports:
- 1 x Micro USB
- 1 x φ3.5mm Earphone jack
- Expansion Ports: Back POGO PIN: 5V/1A
-
Buttons:
- 1 x Power (lock screen) button
- 1 x Volume (+/-) button
- Notification: Tone
- Audio: Speaker, Microphone
-
Built-in Printer:
- Paper Roll Width/Diameter: 58mm/40mm
- Printing Speed: 50mm/s
-
Environment Parameters:
- Working Temperature: -10℃ ～ +50℃
- Storage Temperature: -20℃ ~ +60℃
- Humidity: 5% ~ 95% RH (No condensation)
- ESD: ±10 kV air discharge, ±6 kV direct discharge
-
Data Collection:
- Camera: Rear camera 2/5 Megapixels
- GPS: GPS
- NFC (optional): Support ISO/ICE14443, ISO15693
-
Wireless Data Communication:
- WWAN: WCDMA (B1/B2/B5/B8), GSM/EDGE/GPRS (850/900/1800/1900)
- Wi-Fi: 2.4GHz Wi-Fi, Support IEEE 802.11 b/g/n
- Bluetooth: BT4.0
-
Accessories:
- Standard: Power Adapter ×1, USB Cable ×1
- Optional: Base charger
Conclusion:
The iMachine AP02 Mobile POS Terminal is designed to meet the needs of modern retail and service environments with its integrated thermal printer, robust battery, and versatile connectivity options. Its high-resolution display and reliable performance make it a practical choice for efficient point-of-sale operations. With comprehensive data collection capabilities and environmental resilience, the iMachine AP02 is well-suited for a variety of business applications, ensuring smooth and effective management of transactions and customer interactions.
