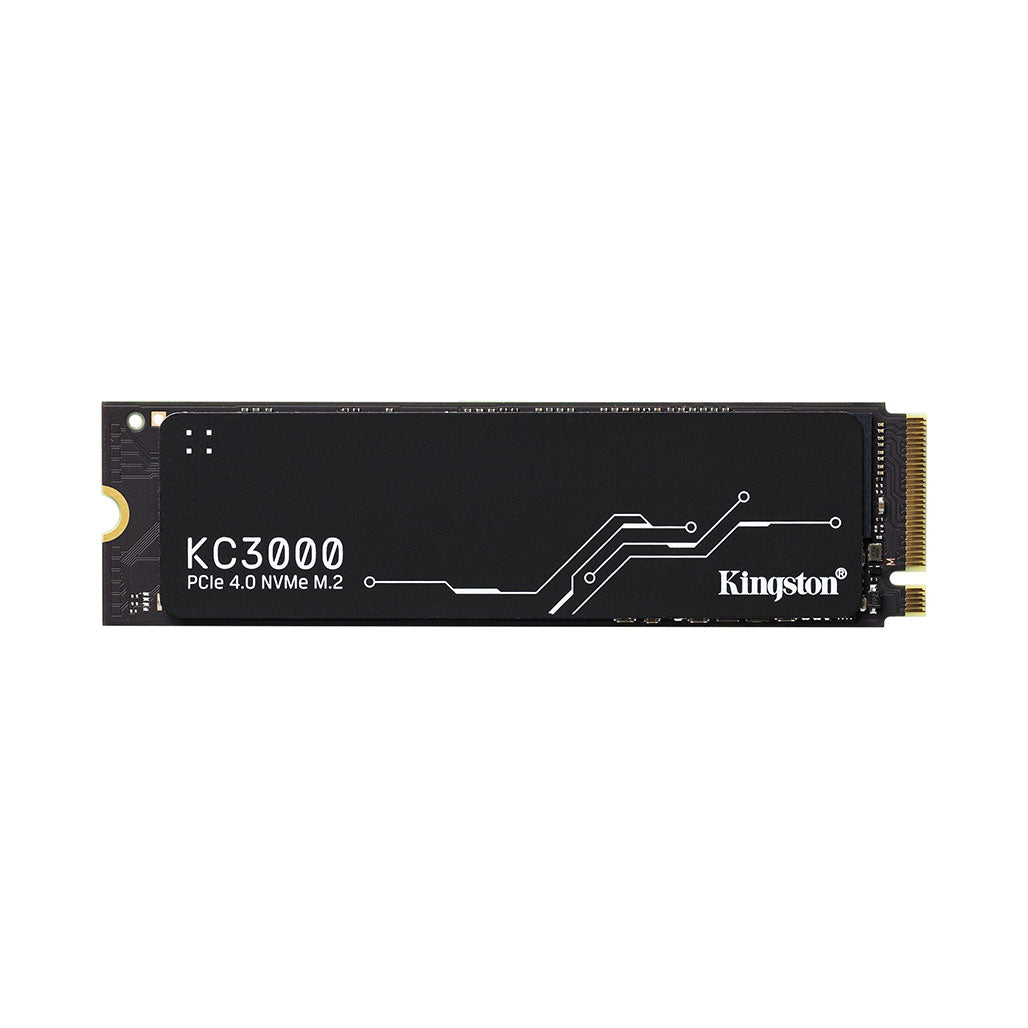

The Kingston KC3000 500GB PCIe 4.0 NVMe M.2 SSD is engineered to deliver exceptional performance, perfect for both desktop and laptop PCs. Featuring the advanced Gen 4x4 NVMe controller combined with 3D TLC NAND technology, this SSD ensures impressive data transfer speeds of up to 7,000MB/s for both read and write operations. It is an excellent choice for users who require swift and reliable storage for demanding applications, including 3D rendering and 4K+ content creation. This SSD is designed to enhance overall system responsiveness, offering a notable boost in performance for high-performance computing tasks.
With its compact M.2 2280 form factor, the Kingston KC3000 integrates seamlessly into a wide range of motherboard configurations, making it a versatile upgrade for both small-form-factor and standard systems. The SSD also includes a low-profile graphene aluminum heat spreader, which provides superior thermal management, ensuring the drive remains cool under heavy loads. This model is part of a full range of capacities, from 512GB to 4TB, catering to diverse data storage needs and providing the flexibility required for various computing environments.
Key Features:
- Exceptional Performance: Achieves read and write speeds of up to 7,000MB/s, optimizing data access and system performance.
- Compact Form Factor: The M.2 2280 design fits easily into various systems, including desktops and laptops.
- Advanced Thermal Management: Equipped with a graphene aluminum heat spreader to maintain optimal cooling and performance.
- Versatile Storage Options: Available in capacities ranging from 512GB to 4TB, meeting a wide range of storage needs.
Specifications:
- Form Factor: M.2 2280
- Interface: PCIe 4.0 x4 NVMe
- Capacities: 512GB, 1024GB, 2048GB, 4096GB
- Controller: Phison E18
- NAND: 3D TLC
-
Sequential Read/Write:
- 512GB: 7,000/3,900MB/s
- 1024GB: 7,000/6,000MB/s
- 2048GB: 7,000/7,000MB/s
- 4096GB: 7,000/7,000MB/s
-
Random 4K Read/Write:
- 512GB: Up to 450,000/900,000 IOPS
- 1024GB: Up to 900,000/1,000,000 IOPS
- 2048GB: Up to 1,000,000/1,000,000 IOPS
- 4096GB: Up to 1,000,000/1,000,000 IOPS
-
Total Bytes Written (TBW):
- 512GB: 400TBW
- 1024GB: 800TBW
- 2048GB: 1.6PBW
- 4096GB: 3.2PBW
-
Power Consumption:
- 512GB: 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
- 1024GB: 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
- 2048GB: 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
- 4096GB: 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
- Storage Temperature: -40°C to 85°C
- Operating Temperature: 0°C to 70°C
-
Dimensions:
- 512GB-1024GB: 80mm x 22mm x 2.21mm
- 2048GB-4096GB: 80mm x 22mm x 3.5mm
-
Weight:
- 512GB-1024GB: 7g
- 2048GB-4096GB: 9.7g
- Vibration Operating: 2.17G peak (7-800Hz)
- Vibration Non-Operating: 20G peak (20-1000Hz)
- MTBF: 2,000,000 hours
Conclusion:
The Kingston KC3000 500GB PCIe 4.0 NVMe M.2 SSD offers an outstanding combination of high-speed performance and compact design. It provides a significant upgrade for users seeking rapid data access and reliable storage. With its advanced technology and efficient thermal management, this SSD is well-suited for high-demand computing tasks, ensuring both speed and durability.
