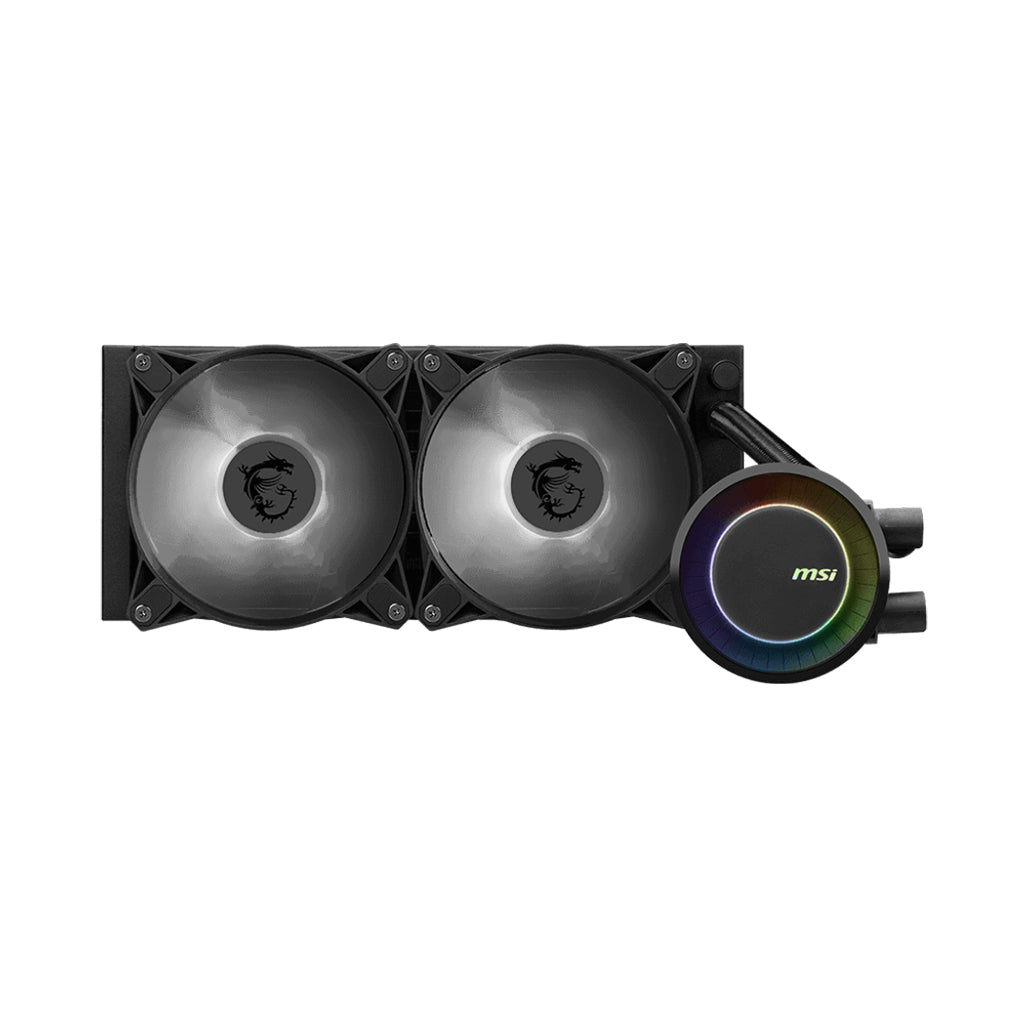

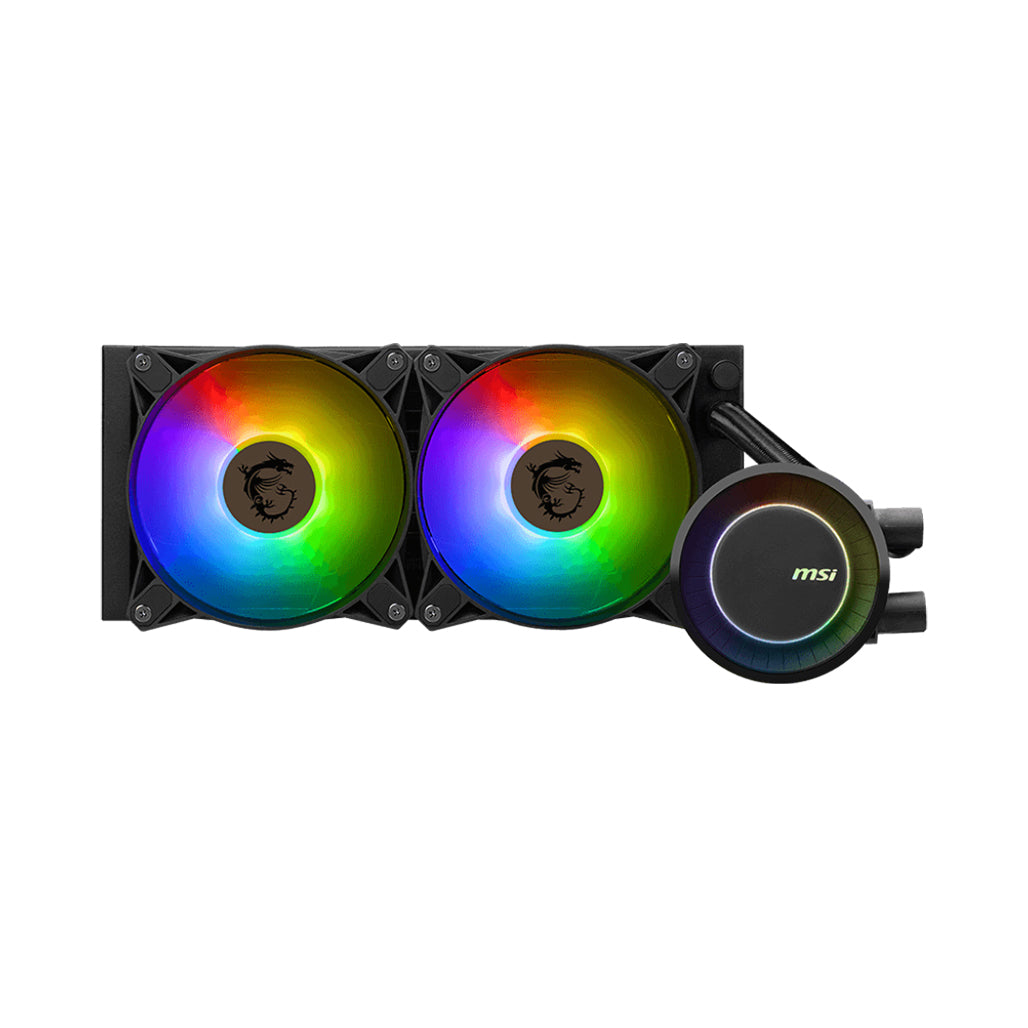

The MSI MAG CoreLiquid E240 offers advanced cooling solutions combined with striking aesthetics inspired by the solar eclipse. This liquid cooler is designed to provide superior thermal performance and visual appeal, making it an ideal choice for high-performance gaming setups.
Featuring a rotatable blockhead, the MAG CoreLiquid E240 allows for flexible mounting, ensuring the optimal orientation for cooling. Its expanded copper base and enhanced micro-channel design maximize heat dissipation, improving overall cooling efficiency. The pump is strategically integrated into the radiator to reduce noise and prolong its lifespan by moving it away from heat sources.
With a high thermal dissipation radiator, a durable three-phase motor that minimizes vibrations, and evaporation-proof tubing, the MAG CoreLiquid E240 stands out in both performance and reliability. The Fluid Dynamic Bearing (FDB) fans contribute to reduced noise levels while enhancing airflow and cooling efficiency.
Customize your cooling experience with MSI Mystic Light, offering full ARGB lighting control to match your system's aesthetics. The cooler integrates seamlessly with MSI CENTER software, allowing for precise control over fan and pump speeds.
Key Features:

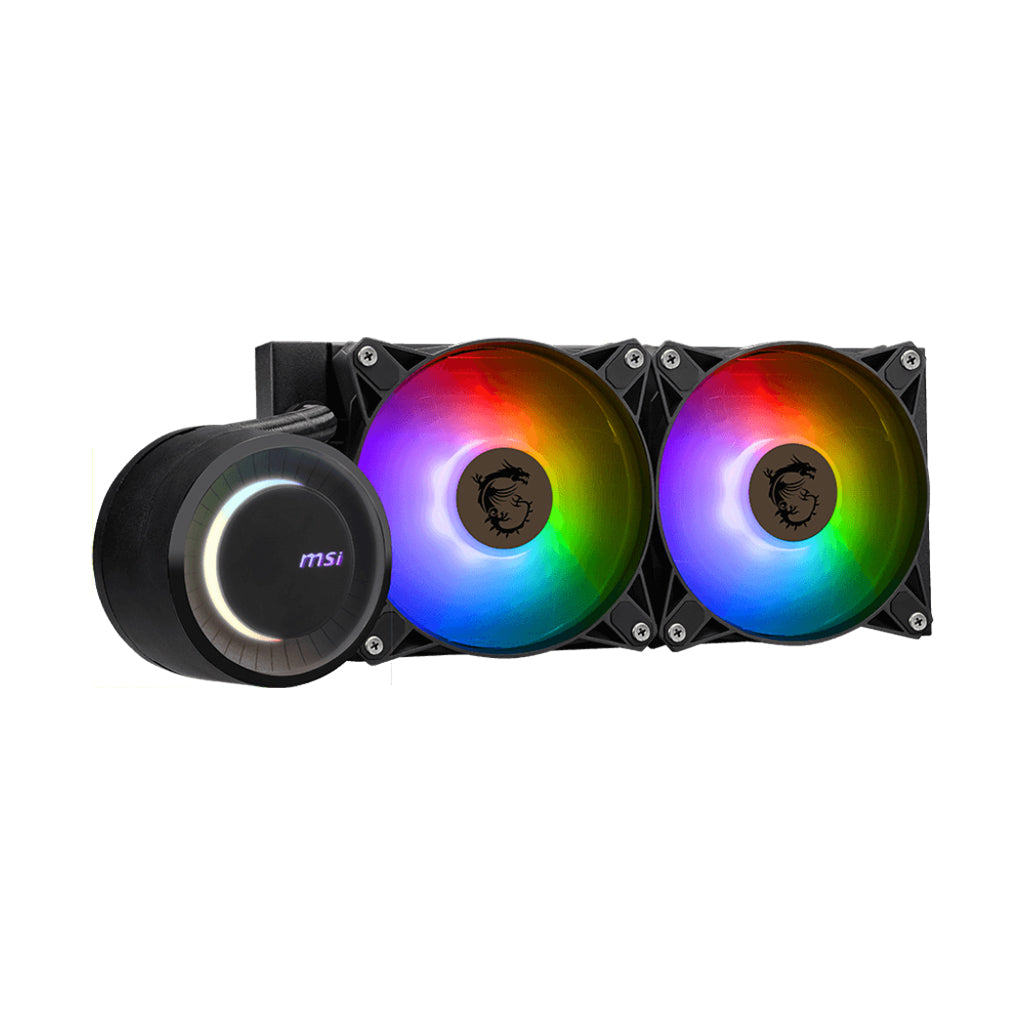

- Rotatable Blockhead: Mount the cold plate at any orientation with up to 270 degrees of rotation.
- Enhanced Heat Dissipation: Enlarged copper base and micro-channel design maximize CPU heat dissipation.
- Pump Cooling Design: Effectively reduces temperature at the heat source with optimized water delivery.
- Durable Pump Motor: Features a three-phase motor that minimizes vibrations for long-lasting performance.
- Evaporation-Proof Tubing: Multi-layer structure with reinforced mesh prevents liquid evaporation and enhances durability.
- Fluid Dynamic Bearing (FDB) Fans: Low noise and vibration with improved airflow and cooling efficiency.

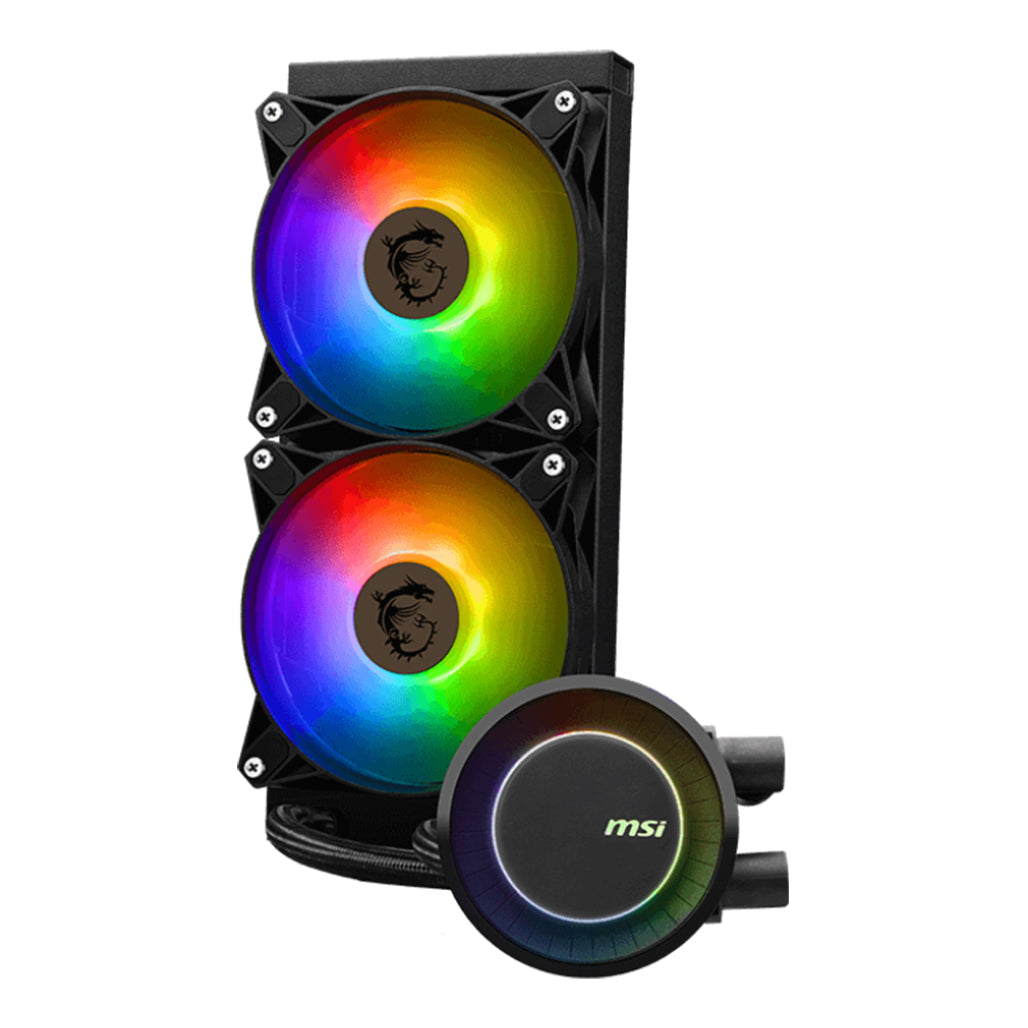

- ARGB Lighting: Fully customizable lighting with MSI Mystic Light, supporting 16.8 million colors.
- MSI CENTER Integration: Fine-tune fan and pump speeds through MSI CENTER software for optimal performance.
Specifications:
- Radiator Size: 240 mm
- Radiator Dimensions (W x D x H): 277 x 119.2 x 27 mm / 10.91 x 4.69 x 1.06 inches
- Radiator Material: Aluminum
- Water Cooling Tube Material: Black Rubber
- Number of Fans: 2
- Fan Dimensions (W x D x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches
- Fan Air Flow: 25.5 ~ 75.04 CFM
- Fan Bearing: Fluid Dynamic Bearing (FDB)
- Fan Life Expectancy: 50,000 hours @ 40°C
- Fan Rated Current: 0.25 A (Max: 0.4 A)
- Fan Power Consumption: 3 W (Max: 4.8 W)
- PWM Mode: Yes
- Cable Length (PWM Cable): 500 mm
- Fan Connector: 4-pin
- Fan Lighting: ARGB
- RGB Connector: 3-pin + Socket
- Pump Life Expectancy: 200,000 hours in typical use
- Pump Noise Level: 20 dBA (avg.)
- Pump Rated Current: 0.25 A (Max: 0.5 A)
- Pump Power Consumption: 3 W (Max: 6 W)
- Pump Speed: 3000 RPM ± 10%
- Pump Connector: 4-pin
- Cold Plate Material: Copper
- Block Dimensions (W x D x H): 41 ± 0.2 x 47.6 ± 0.2 mm
- Intel Socket Support: LGA 1150/1151/1155/1156/1200/1700
- AMD Socket Support: AM5/AM4
- Accessories: 1 x 1 to 2 Fan PWM cable, 1 x Molex 4-Pin to 4-Pin fan cable, 1 x Thermal paste
The MSI MAG CoreLiquid E240 delivers cutting-edge cooling performance with a robust design and customizable lighting, making it a top choice for enthusiasts looking to enhance their PC build.
