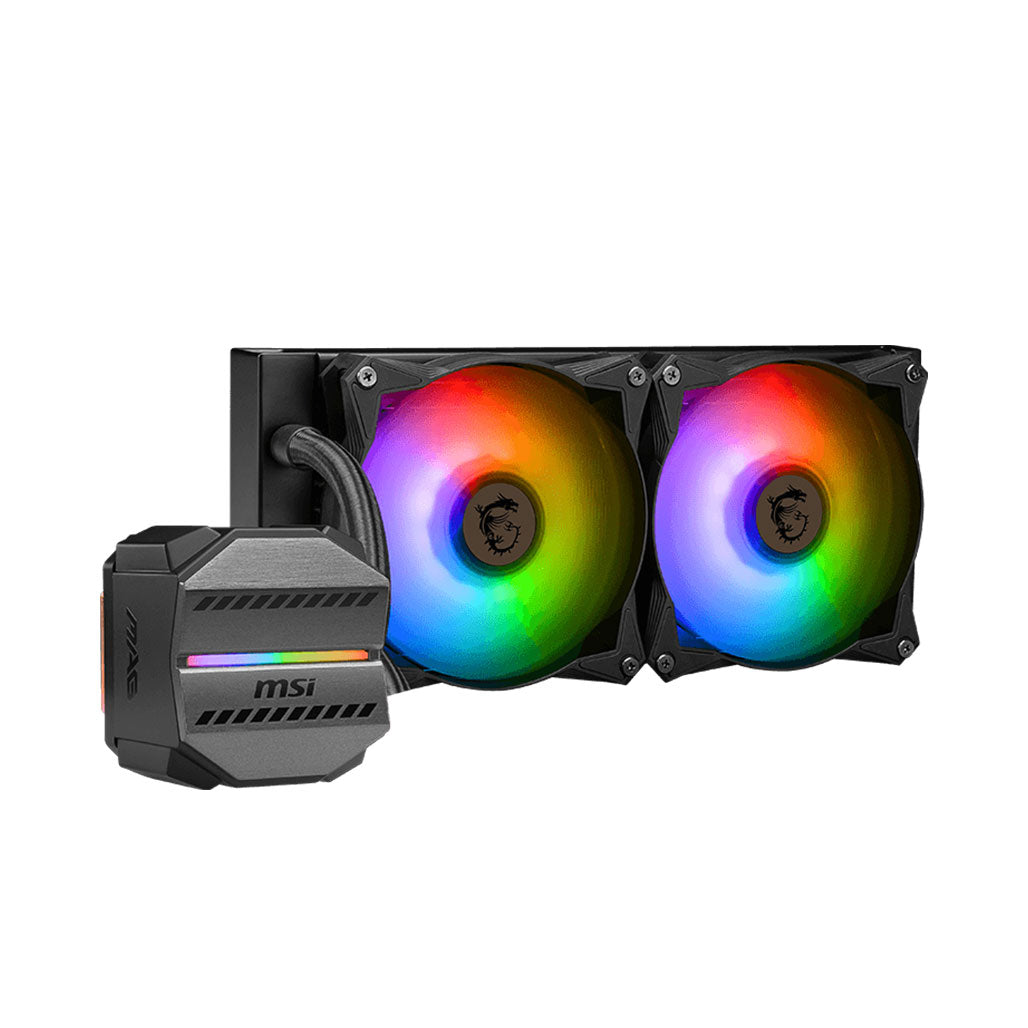

The MSI MAG CoreLiquid M240 is a high-performance 240mm liquid cooler designed to deliver superior CPU cooling with striking ARGB lighting effects. This cooler features a uniquely curved copper plate for optimal heat dissipation, ensuring efficient cooling even during intense computing tasks. With its durable construction and advanced thermal management features, the MAG CoreLiquid M240 is an excellent choice for gamers and PC builders seeking both reliability and style.
The cooler's innovative design includes a 12-pathway radiator and evaporation-proof tubing, enhancing heat dissipation and system durability. Its ARGB lighting, customizable via Mystic Light, adds a touch of flair to any build. The cooler is compatible with a wide range of Intel and AMD sockets, making it a versatile choice for various setups.
Key Features:
-
Efficient Heat Dissipation: The MAG CoreLiquid M240 features a unique curved copper plate that fully covers the CPU and ensures rapid heat dissipation. This design helps maintain optimal CPU temperatures even under heavy loads.
-
Durable Pump Motor: Equipped with a durable three-phase motor, the pump generates minimal vibrations, contributing to long-lasting and reliable operation. The pump's lifespan is rated at up to 100,000 hours.
-
Advanced Radiator Design: The 240mm radiator includes a 12-pathway design that facilitates rapid heat dissipation, ensuring efficient cooling performance.
-
Evaporation-Proof Tubing: The cooler’s tubing is constructed with three layers of netted plastic and a reinforced mesh exterior, providing excellent durability and preventing coolant evaporation.
-
Quality Fan Construction: The cooler features two high-performance fans with ball bearings for extended lifespan. The fan blades, made from low-impurity acrylic, enhance ARGB lighting effects and airflow.
-
Customizable ARGB Lighting: Mystic Light compatibility allows for full ARGB customization, letting users showcase their preferred lighting colors and effects.
-
Extensive Compatibility: The MAG CoreLiquid M240 supports a wide range of Intel and AMD sockets, including LGA 1150, 1151, 1155, 1156, 1200, 1700, 2011, 2011-3, 2066, and AM5, AM4, ensuring compatibility with various motherboard setups.
Specifications:
- Radiator Size: 240 mm
- Radiator Dimensions (WxDxH): 277 x 120 x 27mm / 10.9 x 4.7 x 1.06 inches
- Radiator Material: Aluminum
- Water Cooling Tube Material: Black Rubber + Mesh
- Number of Fans: 2
- Fan Dimensions (WxDxH): 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
- Fan Air Flow: 21.63 ~ 78.73 CFM
- Fan Bearing: Two Ball Bearing
- Fan Life Expectancy: 70,000 Hours
- Fan Rated Current: 0.35A
- Fan Power Consumption: 4.2W
- PWM Mode: Yes
- Cable Length (PWM Cable): 350mm / 13.78 inches
- Fan Connector: 4-Pin
- Fan Lighting: ARGB
- Pump Life Expectancy: 100,000 Hours
- Pump Noise Level: 20 dBA
- Pump Rated Current: 0.38A
- Pump Power Consumption: 4.56W
- Pump Speed: 3100 RPM ± 10%
- Pump Connector: 3-Pin
- Cold Plate Material: Copper + Plastic
- Block Dimensions (WxDxH): 67.26 x 59.95 x 55.9 mm
- Intel Socket Support: LGA 1150/1151/1155/1156/1200/1700, LGA 2011/2011-3/2066
- AMD Socket Support: AM5/AM4
Conclusion:
The MSI MAG CoreLiquid M240 combines advanced cooling technology with customizable ARGB lighting to provide both high performance and visual appeal. Its unique design features, including a curved copper plate and efficient radiator, ensure effective heat management and system stability. With wide socket compatibility and durable construction, this cooler is a robust choice for any high-performance build.
