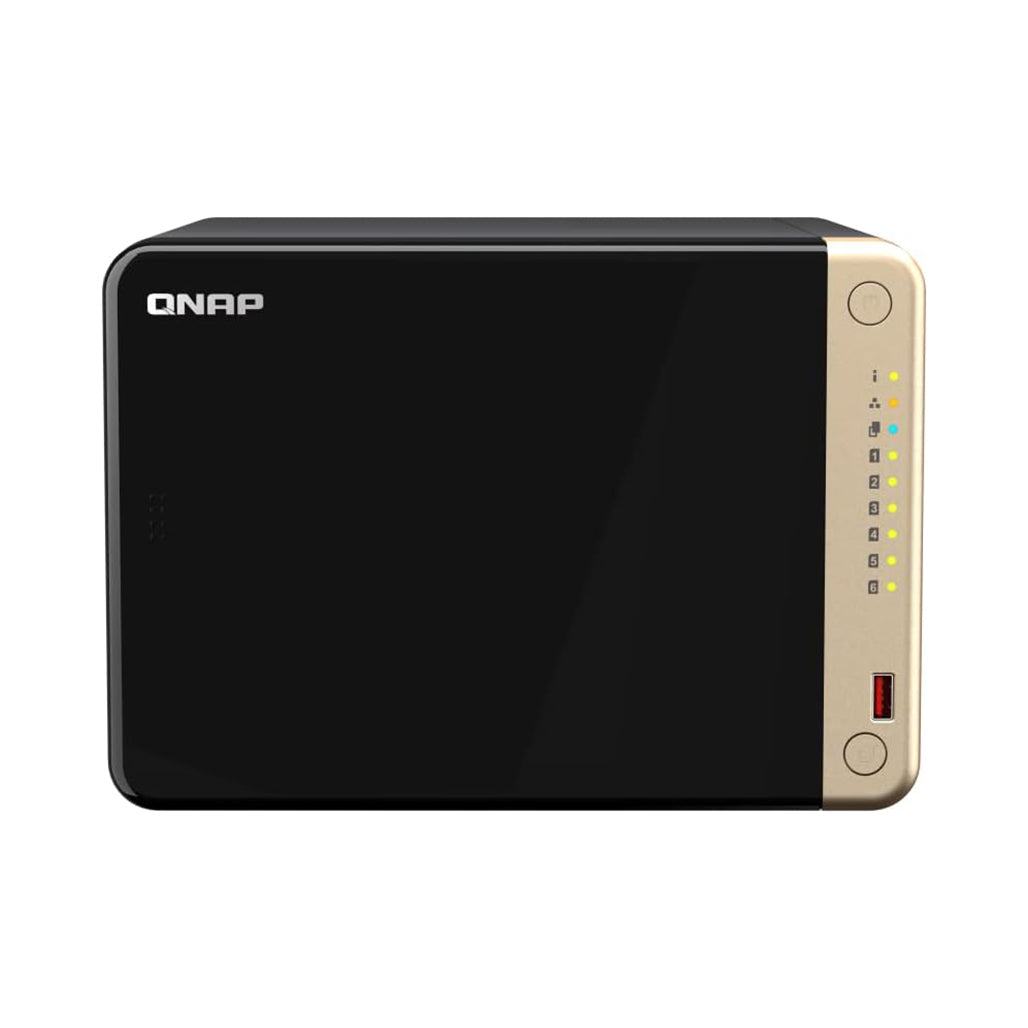

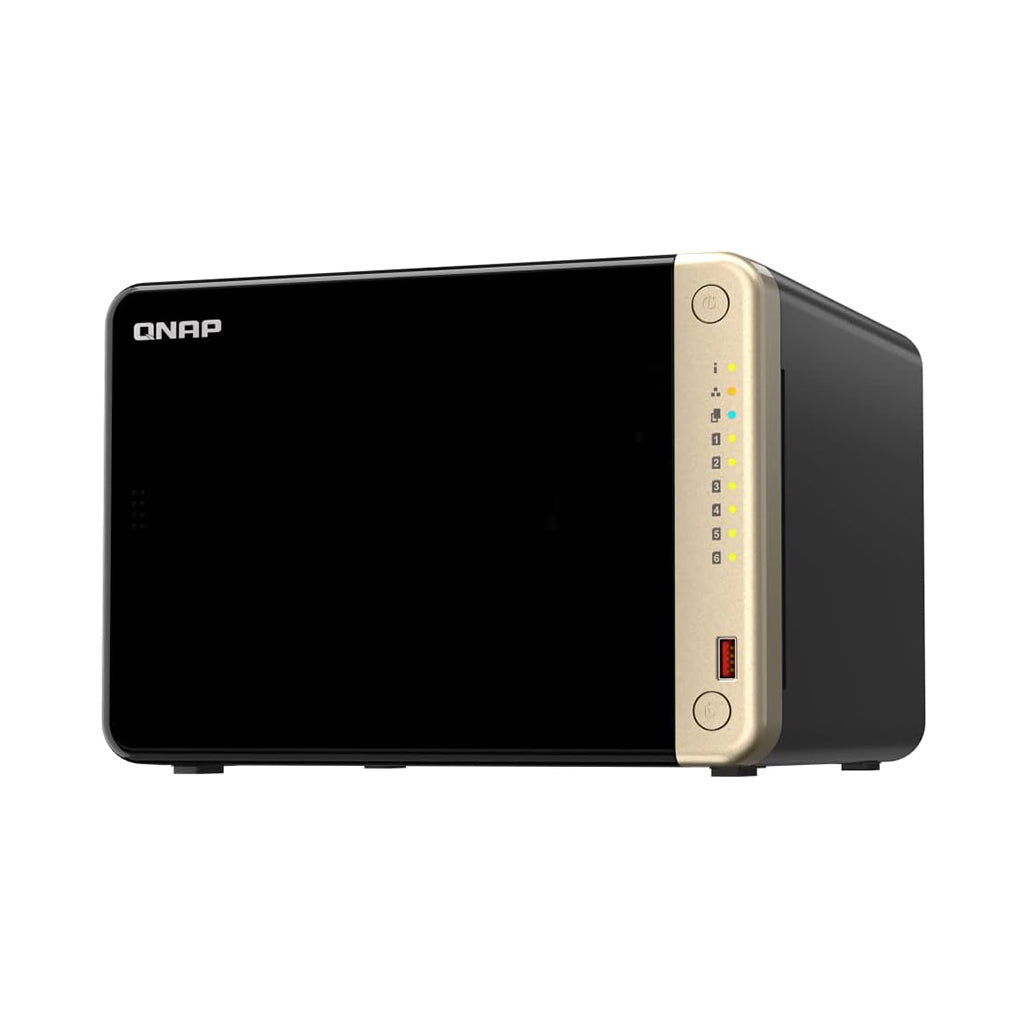

The QNAP TS-664-8G-US 6-Bay High-Performance Desktop NAS is a powerful and compact storage solution designed for businesses and professionals seeking to optimize file management, collaboration, backup, and multimedia tasks. Featuring a quad-core Intel® Celeron® N5095 processor with a burst speed of up to 2.9 GHz, this NAS is engineered to handle multitasking workloads efficiently. With 8GB of DDR4 RAM (expandable to 16GB), users can expect smooth performance, even during intensive operations. The built-in Intel® UHD Graphics enhances video conversion, allowing seamless video streaming to mobile devices and remote work environments.
Equipped with six 3.5-inch drive bays, the TS-664 offers up to 110TB of storage space, with the option to add M.2 SSD caching for improved access speeds. This NAS features dual 2.5GbE ports, delivering transfer speeds up to 589 MB/s through port trunking, making it as fast as single-port 10GbE NAS devices. Designed with future-proofing in mind, users can upgrade the system by adding a PCIe dual-port 10GbE card, expanding its network capabilities to meet evolving business needs.
Key Features:
- Processor: Powered by the Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz), ensuring efficient multitasking and media streaming.
- Memory: 8GB DDR4 RAM (1 x 8GB) with the ability to expand to 16GB (2 x 8GB) for handling larger workflows.
- Storage: Six 3.5-inch SATA bays for up to 110TB of total storage, compatible with 2.5-inch SATA SSDs for SSD caching and performance boosts.
- Networking: Dual 2.5GbE ports with port trunking support, offering up to 589 MB/s transfer speeds, with the option to add 5GbE or 10GbE connectivity via PCIe expansion.
- Video Conversion: Built-in Intel UHD Graphics provides hardware-accelerated video transcoding, ensuring smooth streaming of multimedia files to mobile devices.
- SSD Caching: Features two M.2 NVMe SSD slots for caching, with an optional expansion via a QM2 PCIe card to add additional M.2 slots for further speed enhancements.
- USB Connectivity: Two USB 3.2 Gen 2 ports (10Gbps) allow for faster backups and transfers to/from external USB devices.
- PCIe Expansion: One PCIe Gen 3 x2 slot supports the installation of network cards or additional M.2 SSD storage for greater flexibility.
- HDMI Output: HDMI™ 2.1 port for direct multimedia output, supporting resolutions up to 4096 x 2160 at 60Hz for high-quality display.
Specifications:
- CPU: Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
- CPU Architecture: 64-bit x86
- Graphics Processor: Intel® UHD Graphics
- System Memory: 8GB SODIMM DDR4 (1 x 8GB)
- Maximum Memory: 16GB (2 x 8GB)
- Flash Memory: 4GB (Dual boot OS protection)
-
Drive Bays: 6 x 3.5-inch SATA 6Gb/s
- Drive Compatibility: 3.5-inch SATA hard disk drives and 2.5-inch SATA solid state drives
- M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1 (compatible with NVMe SSDs PCIe Gen 3 and above)
- 2.5GbE Ethernet Ports: 2 (2.5G/1G/100M/10M)
-
Optional Ports via PCIe:
- 5GbE (5G/2.5G/1G/100M)
- 10GbE (optional via PCIe expansion card)
- Wake on LAN (WOL): Supported
-
PCIe Slot: 1 x PCIe Gen 3 x2
- Card Dimensions: 190 x 68.9 x 18.76 mm
-
USB Ports:
- 2 x USB 3.2 Gen 2 (10Gbps) Type-A
- 2 x USB 2.0 ports
- HDMI Output: 1 x HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)
- Form Factor: Tower
- LED Indicators: Power/Status, LAN, USB, HDD1-6
- Buttons: Power, USB Copy, Reset
- Dimensions (HxWxD): 165 × 235 × 226.5 mm (without foot pad)
- Weight (Net): 2.94 kg
- Weight (Gross): 5.1 kg
- Operating Temperature: 0 ~ 40˚C (32˚F ~ 104˚F)
- Storage Temperature: -20 ~ 70˚C (-4˚F ~ 158˚F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27˚C
- Power Supply: 120W adapter, 100-240V
-
Power Consumption:
- HDD Sleep Mode: 23.22 W
- Operating Mode (Typical): 44.02 W (with fully populated drives)
- Fans: 2 x 90mm, 12VDC
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Concurrent Connections (CIFS) with Max Memory: 1,500
- Standard Warranty: 3 years
Conclusion:
The QNAP TS-664-8G-US 6-Bay NAS offers a compact yet high-performance solution for businesses requiring efficient data management and multimedia streaming capabilities. With its robust Intel Celeron processor, built-in SSD caching, and dual 2.5GbE network ports, this NAS delivers fast file transfers, improved multitasking, and reliable data storage. Upgradable PCIe options, extensive storage capacity, and support for SSD caching ensure that this NAS can grow with your business’s evolving needs, making it an ideal investment for long-term scalability.
