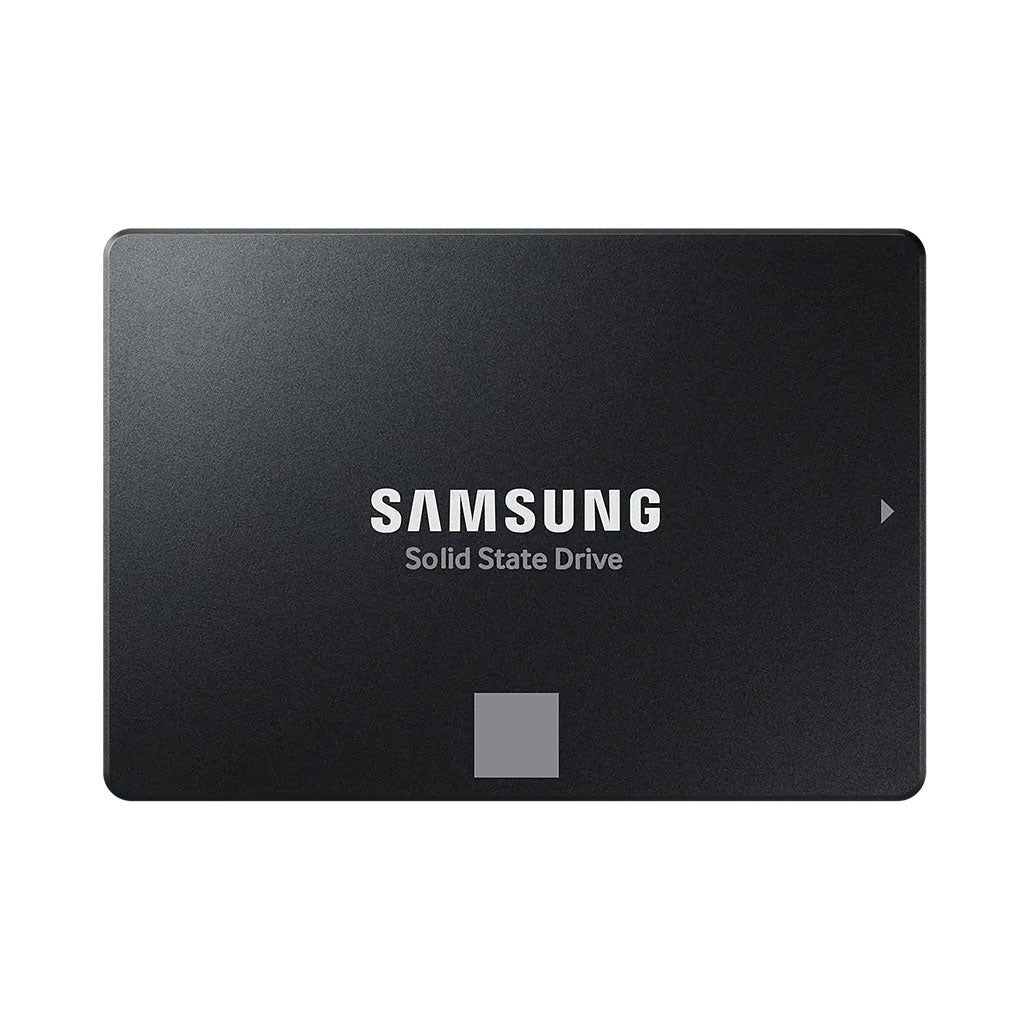

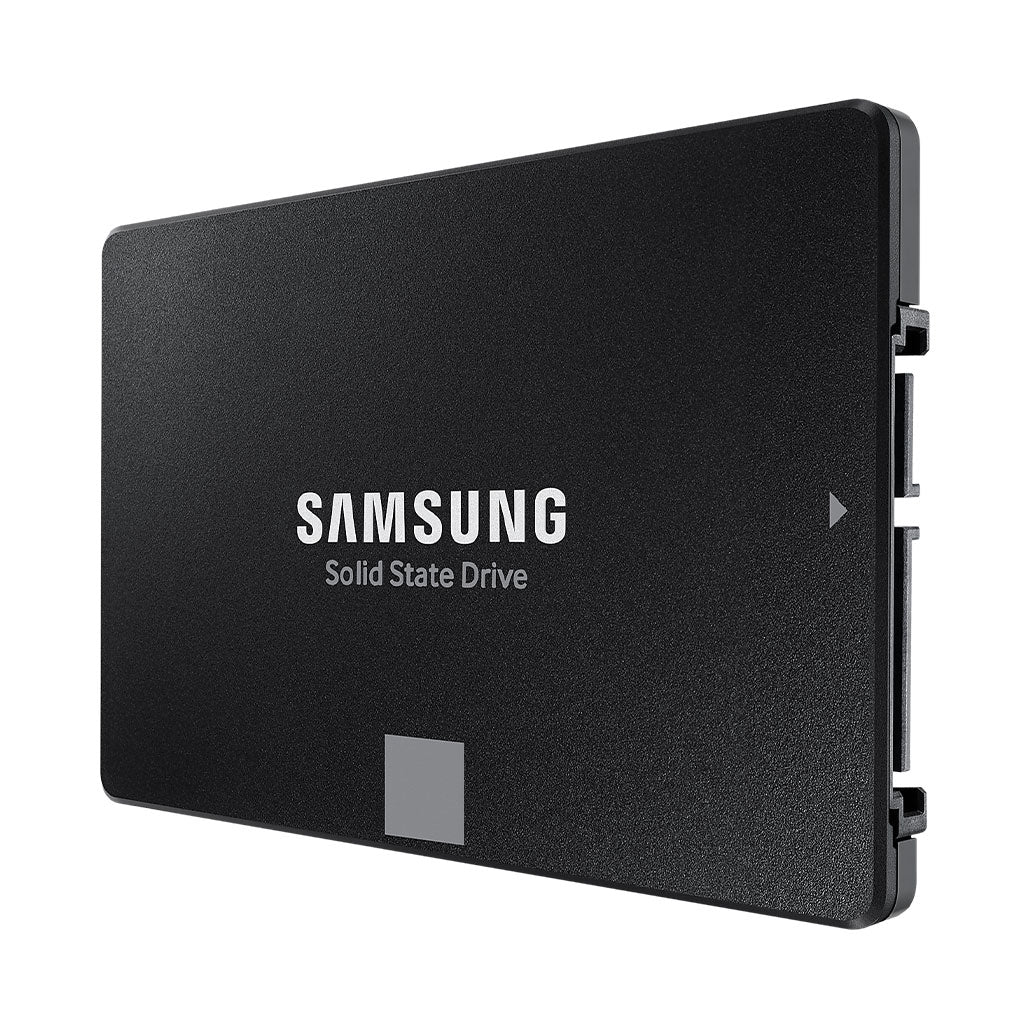

The Samsung 870 EVO SATA III 500GB SSD represents the pinnacle of storage technology, delivering top-tier performance and reliability for a wide range of applications. Designed for both everyday computing and intensive tasks, this SSD offers impressive read and write speeds, making it an excellent choice for users seeking to upgrade their systems with a high-performing solid-state drive.
The 870 EVO provides sequential read speeds of up to 560 MB/s and write speeds of up to 530 MB/s, ensuring rapid data access and transfer. With Intelligent TurboWrite technology, write speeds are accelerated, and sustained performance is guaranteed through a larger variable buffer. This SSD is built to withstand rigorous tasks, including high-resolution video processing, thanks to its 6th Gen. VNAND and MKX controller. Equipped with features like AES 256-bit encryption and auto garbage collection, the 870 EVO ensures data security and drive longevity.
Key Features:
- Exceptional Speed: Achieve fast data transfer rates with sequential read speeds up to 560 MB/s and sequential write speeds up to 530 MB/s. Intelligent TurboWrite enhances write performance and maintains high-speed operation with a larger buffer.
- Reliable Performance: The SSD offers up to 2,400 TBW and is covered by a 5-year limited warranty. Its 6th Gen. VNAND and MKX controller ensure stable performance and reliability for a variety of tasks, from everyday computing to demanding video processing.
- Broad Compatibility: Tested for compatibility with major host systems, including chipsets, motherboards, NAS devices, and video recording equipment. The 870 EVO integrates seamlessly into systems that support a 2.5-inch SATA form factor.
- Simple Upgrade: Installation is straightforward, requiring only insertion into a SATA slot on a desktop or laptop. The included migration software facilitates easy data transfer and setup.
- Samsung Magician Software: Manage and optimize your SSD with Samsung Magician 6 software, which provides tools for monitoring drive health, updating firmware, and enhancing performance.
Specifications:
-
General Feature:
- Application: Client PCs
- Capacity: 500 GB (1 GB = 1 Billion bytes by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications, or otherwise)
- Form Factor: 2.5 inch
- Interface: SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
- Dimension (WxHxD): 100 x 69.85 x 6.8 mm
- Weight: 45.0g
- Storage Memory: Samsung V-NAND 3bit MLC
- Controller: Samsung MKX Controller
- Cache Memory: Samsung 512 MB Low Power DDR4 SDRAM
-
Special Feature:
- TRIM Support: TRIM Supported
- M.A.R.T Support: S.M.A.R.T Supported
- GC (Garbage Collection): Auto Garbage Collection Algorithm
- Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
- WWN Support: World Wide Name supported
- Device Sleep Mode Support: Yes
-
Performance:
- Sequential Read: Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
- Sequential Write: Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD32): Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD32): Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Read (4KB, QD1): Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
- Random Write (4KB, QD1): Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
-
Environment:
- Average Power Consumption (system level): Average: 2.2 W * Maximum: 3.5 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
- Power Consumption (Idle): 30 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage: 5V ± 5%
- Reliability (MTBF): 5 Million Hours
- Operating Temperature: 0 - 70 ℃
- Shock: 1,500 G & 0.5 ms (Half sine)
-
Accessories:
- Installation Kit: Not Available
-
Software:
- Management SW: Magician Software for SSD management, Data Migration Software for SSD upgrade
Conclusion:
The Samsung 870 EVO SATA III 500GB SSD delivers superior performance and reliability, making it an excellent choice for both casual users and professionals. Its high-speed read and write capabilities, combined with robust security features and ease of installation, ensure that data is handled efficiently and safely. Ideal for upgrading existing systems or building new ones, the 870 EVO provides a dependable and powerful storage solution.
