Offering top performance

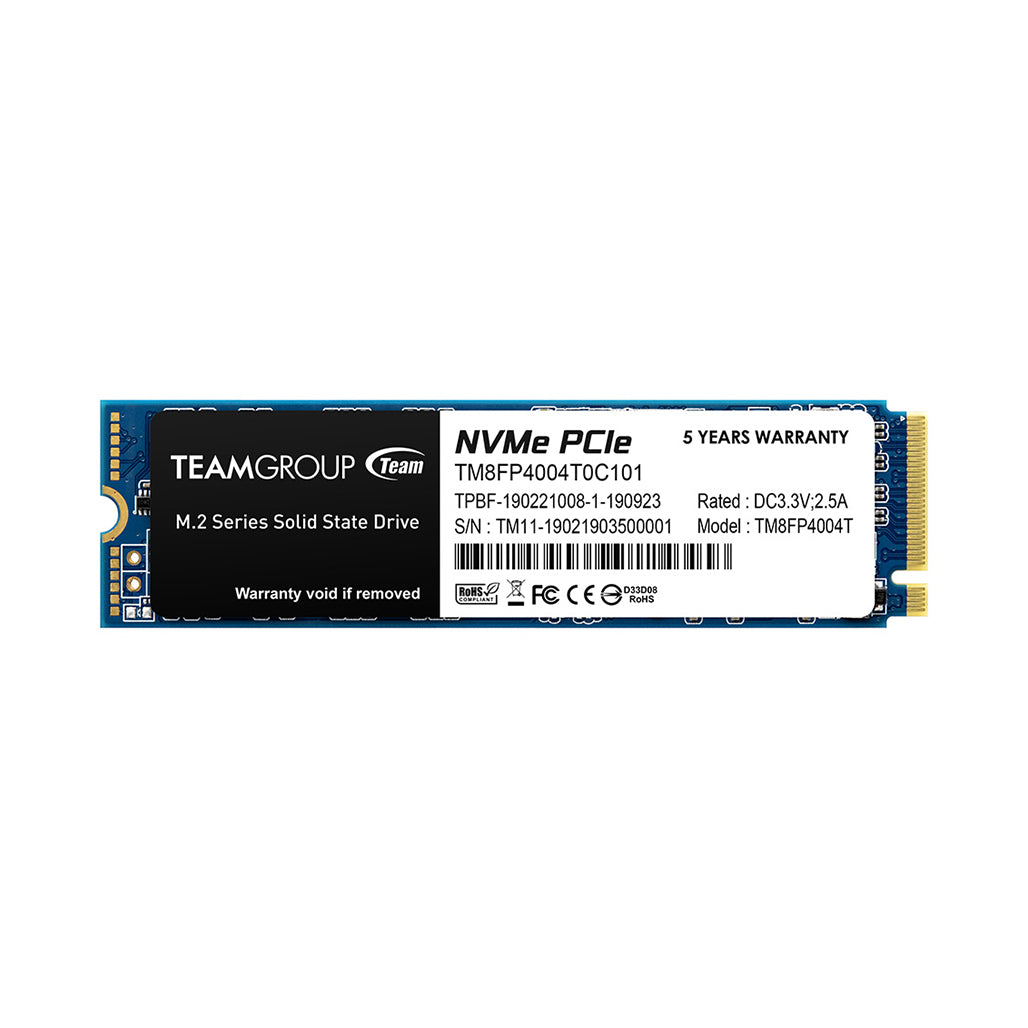

The new force, MP34 has joined TEAMGROUP's M.2 solid state drive series. MP34 supports the latest ultra-fast PCIe Gen3 x4 interface, NVMe1.3 specs, and M.2 2280 PCIe SSD specs. The MP34 is also equipped with DRAM Cache that delivers superior performance in continuous read/write speed of 3,000/2,600MB/s. It is capable of reducing operating delays of the operating system and game/software, and delivers the finest and smoothest gaming experience and an extreme high speed performance without any lag even reading/writing large amounts of game data, complex graphics and motion processing algorithms, or loading heavy duty video/graphics editing software.
Transfer performance is 5 times higher than the SATA III interface
In an era when speed matters, shifting to develop PCIe interface has become a trend for M.2 solid state drive. The MP34 M.2 PCIe SSD uses PCIe Gen3 x4 high speed transfer interface. With the support of PCIe bus bandwidth, it can offer a transfer speed of at least 2000MB/s, or up to over 3000MB/s, which is 5 times higher than the SATA III interface and allows you to hop on board the high speed train that straight to the core of performance.
Support NVMe1.3 standard
MP34 M.2 PCIe SSD supports the latest NVMe1.3 protocol. The system communicates with it through PCIe bus and connects to the built-in PCIe controller of the chipset or processor, so the signal transfer is as simple, precise as point to point, that offers you a pleasant high-performance transfer experience, without a bit of lag or delay.
Reliable advanced technology
The MP34 M.2 PCIe SSD supports S.M.A.R.T. function and its built-in smart algorithm management mechanism has functions are able to ensure operation efficiency, prolong the service life of the SSD and bring it to its maximum performance. Meanwhile, the powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the accuracy of data transfer and prolong the service life of flash memory.
Product Specifications
Interface: PCIe Gen3x4 with NVMe
Voltage: DC +3.3V
Operation Temperature: 0˚C ~ 70˚C
Storage Temperature: -40˚C ~ 80˚C
IOPS: Read/Write: 450K/400K IOPS Max
Weight: 6g
Dimensions: 80(L) x 22(W) x 3.8(H) mm
Humidity: RH 90% under 40°C (operational)
Vibration: 80Hz~2000Hz/20G
Shock: 1,800G/0.5ms
MTBF: 1,500,000 Hours
Operating System:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
