- 250GB Read/Write：up to 220K / 470K IOPS Max
- 500GB Read/Write：up to 440K / 545K IOPS Max
- 1TB Read/Write：up to 525K / 550K IOPS Max
- 2TB Read/Write：up to 525K / 550K IOPS Max
Heat dissipating graphene SSD label

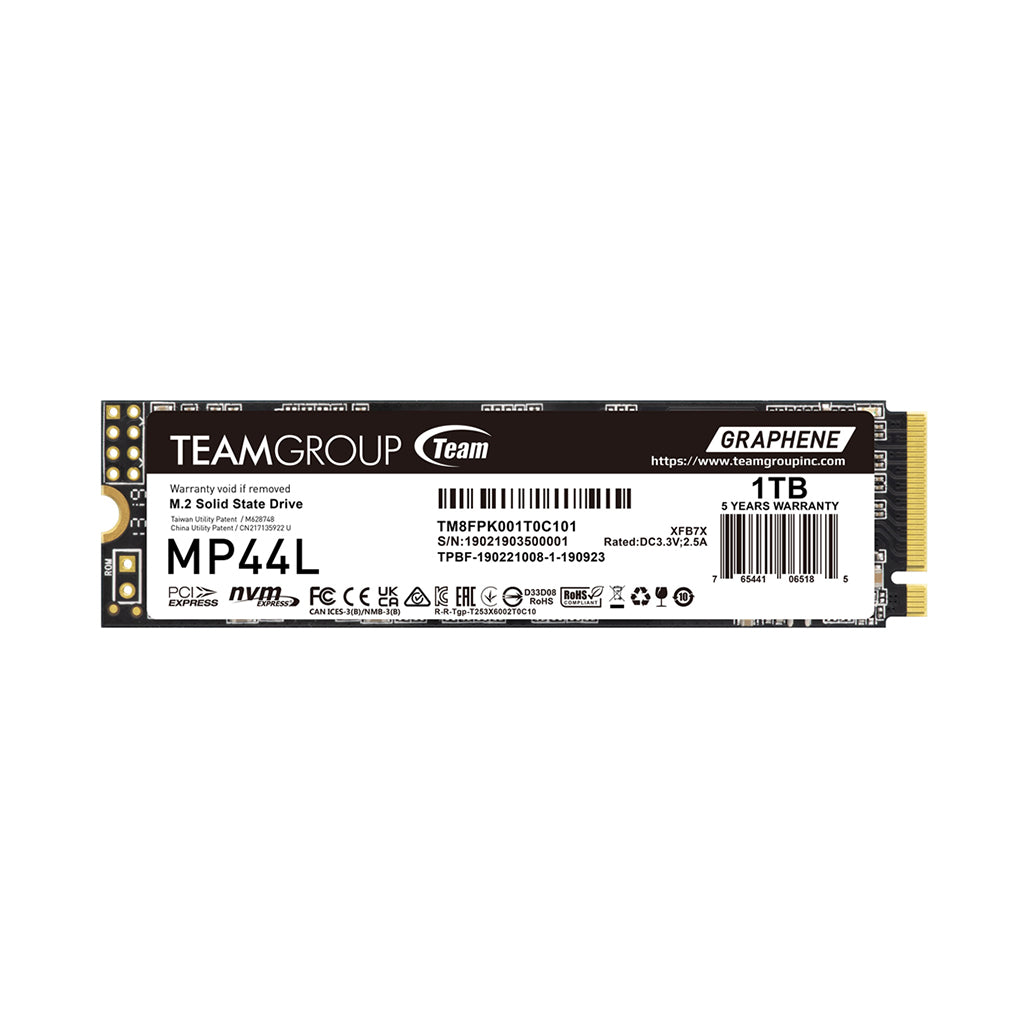

MP44L M.2 PCIe SSD is the first product to introduce conductive graphene coating on aluminum foil to the SSD label. Less than 1mm thick, the new label design eradicates mechanical interference when assembling. Moreover, together with the onboard M.2 heat sink, the heat dissipating performance is doubled!
Supporting SLC Cache enhancing work efficiency drastically
MP44L M.2 PCIe SSD adopts the PCIe Gen4x4 interface and supports SLC Cache. It delivers read/write speeds of up to 5,000/4,500MB/s . Compared with the PCIe Gen3 interface, the performance is more than doubled, and drastically enhances work efficiency.
Diversified optimization technology for stability, durability, and better reliability
It supports Windows TRIM optimization option and Low Density Parity Check Code (LDPC) , reducing wearing on SSD during high-speed read/write duties. It also features precise error correction capability, enabling MP44L M.2 PCIe SSD to operate at high speed with stability, durability, and reliability.
Supporting the latest NVMe standards
MP44L M.2 PCIe SSD supports the latest NVMe standards. Through NVM Sets, predictable latency mode (PLM), and the latest read recovery level (RRL) technology, wearing and latency on SSDs is reduced, expanding lifespan effectively.
S.M.A.R.T. monitoring software
The S.M.A.R.T. monitoring software exclusively developed by TEAMGROUP monitors product status at all times. Through fast and easy setting and inspection, it monitors product quality and performance.
Product Specifications
Interface: PCIe Gen4x4 with NVMe
Voltage: DC +3.3V
Operation Temperature: 0˚C ~ 70˚C
Storage Temperature: -40˚C ~ 85˚C
IOPS:
Weight: 7g
Dimensions: 80(L) x 22(W) x 2.25(H) mm
Humidity: RH 90% under 40°C (operational)
Vibration: 80Hz~2000Hz/20G
Shock: 1,500G/0.5ms
MTBF: 1,500,000 Hours
Operating System: Compatible with Intel and AMD platforms and has one of the following operating systems:
- Windows 11 / 10 / 8 / 7 / Vista
- Linux 2.6.33 or later
