The D-Link DGS-1005P is a versatile 5-port Gigabit desktop switch that includes 4 Power over Ethernet (PoE) ports, designed for efficient network expansion and PoE device integration. Ideal for home and small office environments, this switch offers high-performance connectivity while maintaining a compact, fanless design. It supports PoE+ standards, allowing for the deployment of devices such as wireless access points, IP cameras, and VoIP phones without the need for additional power sources.
Key Features:
-
Power Over Ethernet (PoE+): The DGS-1005P supports IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, delivering up to 30 watts of power per port with a total PoE budget of 60 watts. This capability enables the switch to power PoE-enabled devices through a single Ethernet cable, simplifying installation and reducing the need for extra power outlets.
-
Gigabit Speed and Performance: Each port on the DGS-1005P provides up to 2000 Mbps full-duplex bandwidth, contributing to a total switching capacity of 10 Gbps. Automatic MDI/MDI-X support and auto-negotiation ensure seamless connectivity and optimal performance across devices, making it suitable for high-speed data transfers and network efficiency.
-

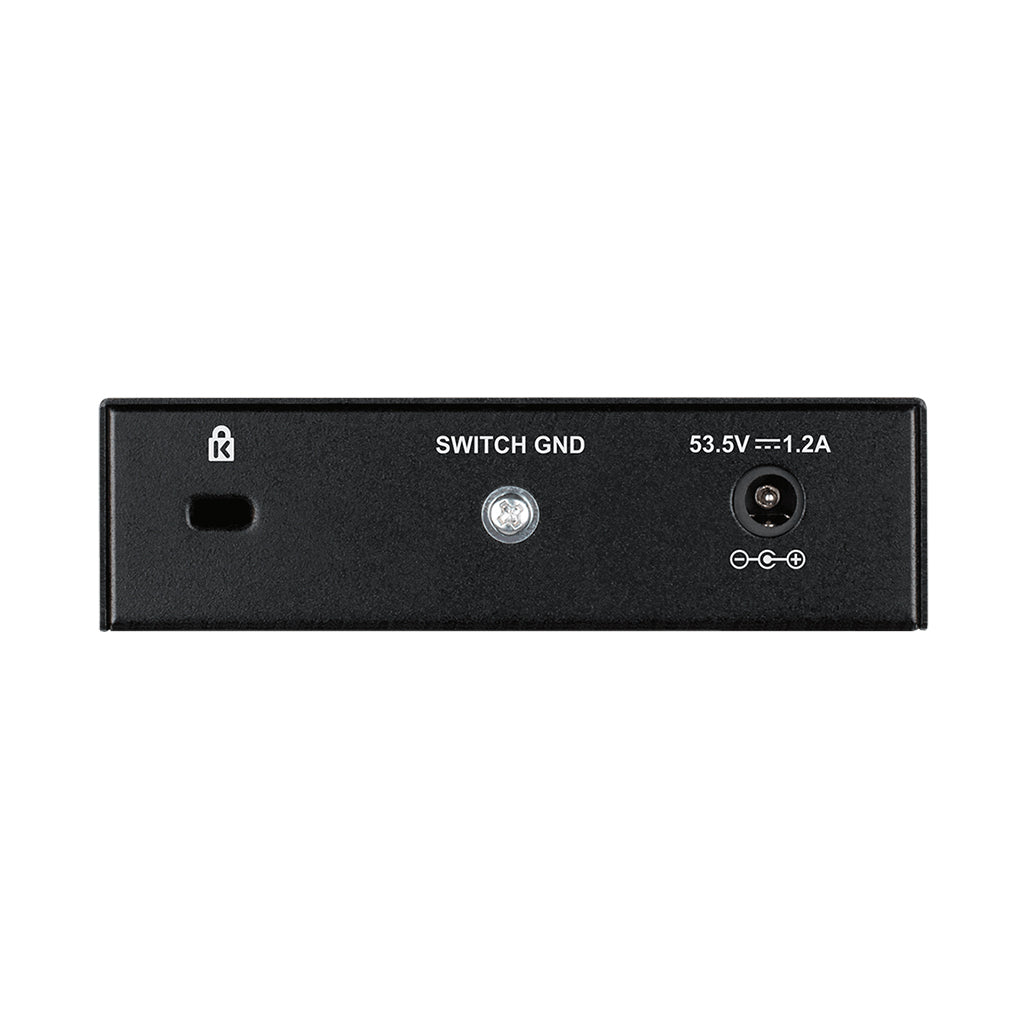

Compact and Fanless Design: The compact form factor of the DGS-1005P makes it ideal for space-constrained environments. Its fanless operation ensures silent performance, making it a suitable choice for noise-sensitive areas such as offices and meeting rooms. The switch is also wall-mountable for added flexibility in placement.
-
Energy-Efficient Operation: Featuring IEEE 802.3az Energy-Efficient Ethernet (EEE), the DGS-1005P automatically adjusts power consumption based on network activity. The switch can detect link status and cable length to minimize energy use when ports are inactive, contributing to overall energy savings and reduced operational costs.
Specifications:
- 1000Base-T Interface: 1
- 1000Base-T PoE Interface: 4
- Auto MDI/MDIX: Yes
- Switching Capacity: 10 Gbps
- Max. Packet Forwarding Rate: 7.44 Mpps
- Dimension: 100 x 98 x 28 mm
- Weight: 0.26 kg
- Operation Temperature: 0 ~ 40 °C
- Storage Temperature: -10 ~ 70 °C
- Operation Humidity: 0% ~ 95% RH
- Storage Humidity: 0% ~ 95% RH
- Operating Altitude: 2000 m
- Maximum Power Consumption: 65.4 W (PoE on), 3.08 W (PoE off)
- Packet Buffer Size: 192 KB
- FAN: Fanless
- Power Input: 53.5 V / 1.2 A
- Maximum PoE Budget: 60 W
The D-Link DGS-1005P offers an effective solution for adding Gigabit connectivity and PoE capabilities to your network. Its high performance, compact design, and energy-efficient features make it an excellent choice for enhancing network infrastructure while supporting power-hungry devices with ease.
