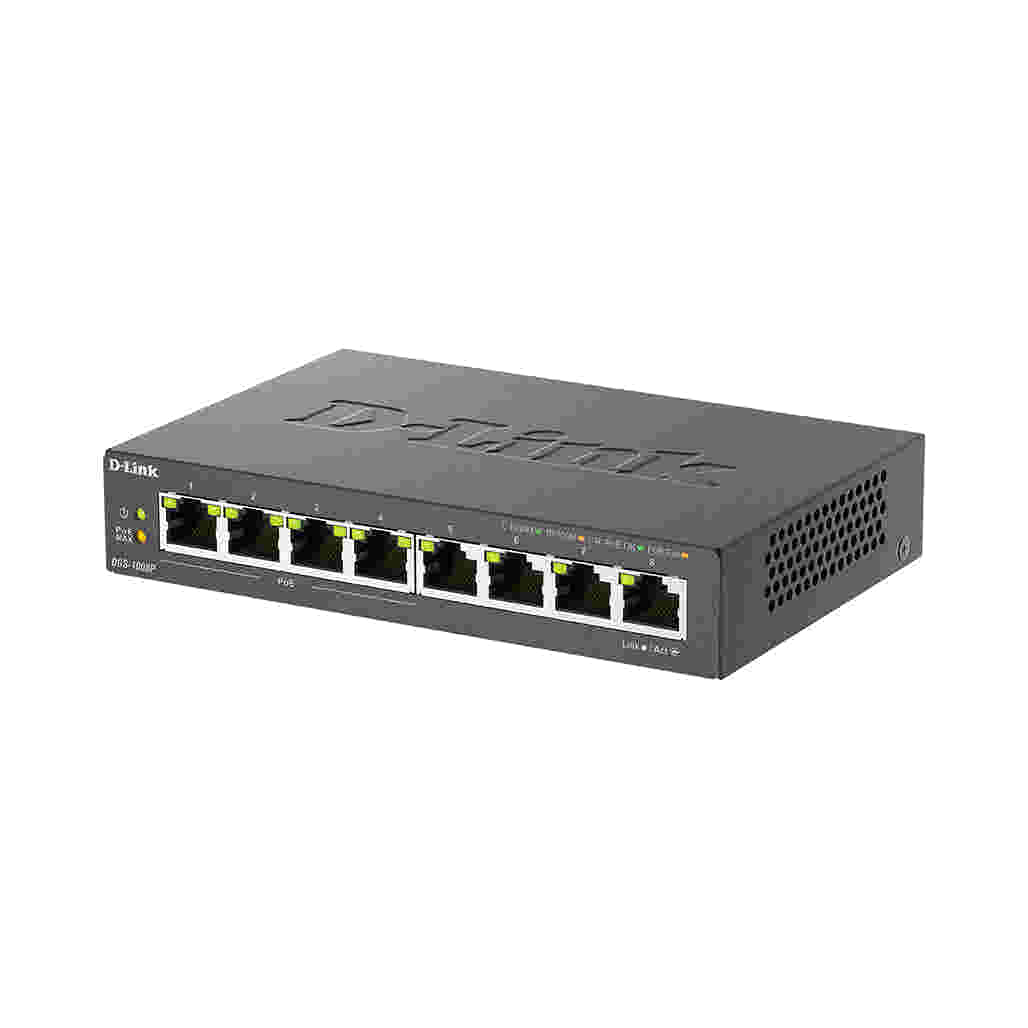

The D-Link DGS-1008P 8-Port Gigabit PoE Unmanaged Desktop Switch offers a cost-effective solution for both small to medium businesses and home users looking to enhance their network infrastructure. Featuring eight Gigabit Ethernet ports, this switch provides high-speed network connectivity and supports Power over Ethernet (PoE), enabling devices such as wireless access points, IP cameras, and IP phones to be powered through the same Ethernet cable used for data transmission. Its compact, fanless design ensures quiet operation, making it suitable for deployment in various environments including office spaces and home settings.
Incorporating advanced energy-saving technologies, the DGS-1008P uses D-Link Green™ eco-friendly features to optimize power consumption. It automatically adjusts power usage based on link status and cable length, significantly reducing energy waste. With a total PoE budget of 68 watts, this switch efficiently powers compatible devices without requiring additional power sources, minimizing cable clutter and simplifying installation.
Key Features:
-
Gigabit Performance with PoE Support: The DGS-1008P provides eight Gigabit Ethernet ports, ensuring high-speed connectivity for network-intensive applications. Four of these ports support IEEE 802.3at PoE+, delivering up to 30 watts of power per port with a total PoE budget of 68 watts, allowing for efficient operation of PoE-enabled devices such as IP cameras and wireless access points.
-
Automatic MDI/MDIX Crossover: All ports on the switch feature automatic MDI/MDIX crossover functionality, eliminating the need for specialized crossover cables. This feature simplifies network setup and allows for straightforward connections to servers, hubs, routers, or other switches using standard Ethernet cables.
-
Energy Efficiency: Utilizing D-Link Green™ technology, the DGS-1008P conserves energy through Link Status and Cable Length Detection. It automatically powers down inactive ports and adjusts power consumption based on the length of connected cables, contributing to reduced energy costs and a longer product lifespan. The fanless design further enhances energy efficiency and reduces operational noise.
-
Compact and Silent Operation: The switch’s compact desktop form factor makes it ideal for installation in space-constrained areas. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments such as workstations and meeting rooms.
Specifications:
- Type: Unmanaged
- Number of Ports: 8
- Main Type of Ports: 1000BASE-T Gigabit Ethernet
- Switching Capacity: 16 Gbps
- PoE Options: 802.3af, 802.3at
- Number of PoE Ports: 4
- PoE Power Budget: 68 watts
- Fanless: Yes
- D-Link Green: Yes
- 802.3az Energy-Efficient Ethernet Support: Yes
- Form Factor: Desktop
- Housing: Metal
- Jumbo Frame: Yes
- Cable Diagnostics: Yes
- MAC Address Table Size: 4,000
- Number of QoS Queues per Port: 4
The D-Link DGS-1008P 8-Port Gigabit PoE Unmanaged Desktop Switch delivers robust performance with advanced energy-saving features. It provides a reliable and efficient networking solution for a variety of environments, ensuring seamless connectivity and reduced power consumption while accommodating the needs of modern network setups.
