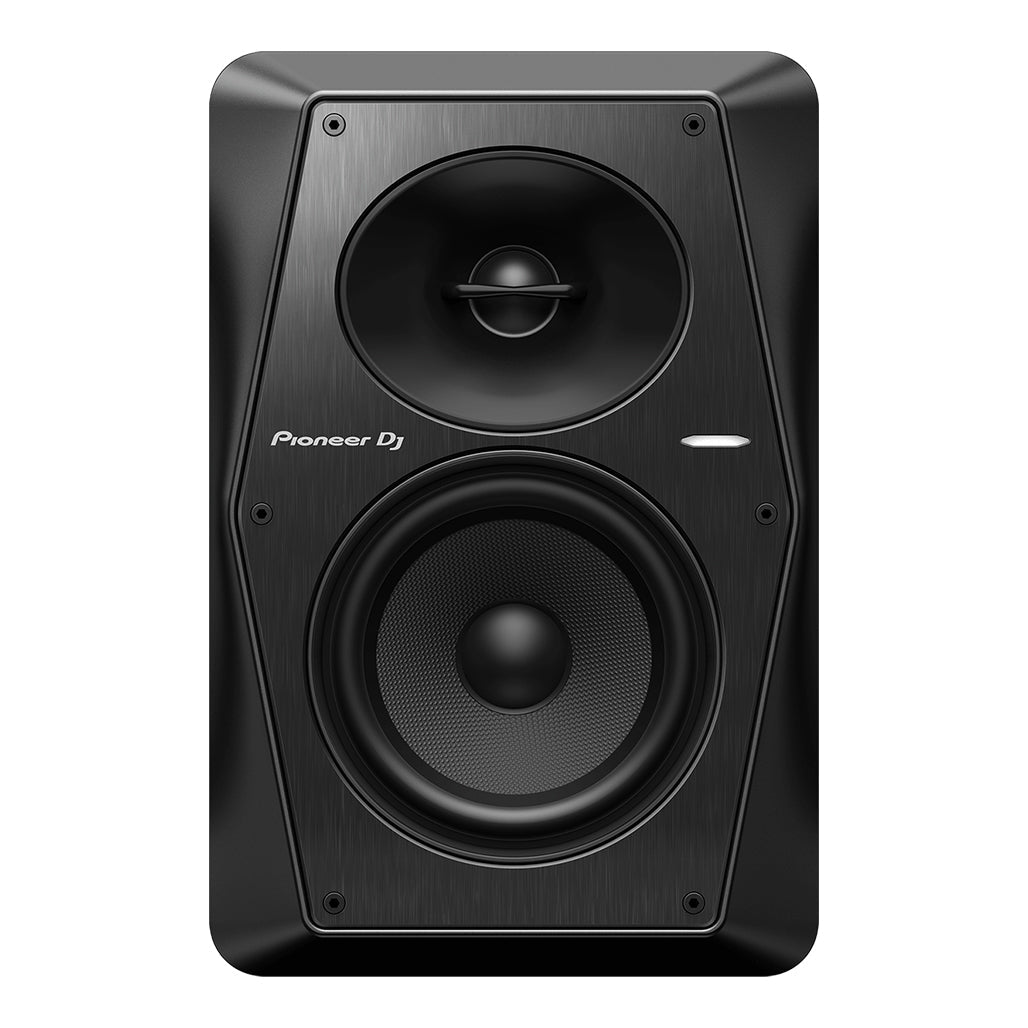

The Pioneer VM-50 is a premium active monitor speaker designed for high-precision audio reproduction in both professional and home studio environments. Featuring a Class D amplifier coupled with a 96 kHz sampling DSP, the VM-50 ensures that every sound detail is rendered with clarity and minimal distortion. The rigid 4-mm-thick aluminum front baffle effectively reduces resonance and vibrations, delivering audio that remains true to the original source. This meticulous design results in a monitor speaker that provides accurate and reliable sound, ideal for mixing, mastering, and general music production.
Equipped with cutting-edge components, the VM-50 utilizes aramid fiber woofer cones that are 30 percent lighter than traditional paper-lined cones. This innovation enhances the speaker’s strength and depth in low-frequency output. The Vortex Bass Accelerator, with its specialized bass reflex port design, further refines low-end performance by ensuring smooth air flow and minimizing unwanted vibrations. Additionally, the constant directivity horn optimizes mid and high-frequency sound, creating a uniform listening space and seamless crossover to the tweeter. With DSP control settings, users can easily adjust the Low and High EQ to match the acoustic characteristics of their room, providing a customized listening experience.
Key Features:
-
Class D Amplification with 96 kHz DSP: Delivers high-energy sound with low distortion, ensuring clear and accurate audio reproduction across a wide bandwidth.
-
Aramid Fiber Woofer Cones: Lighter and stronger than conventional cones, providing enhanced bass and low-mid frequency performance.
-
Vortex Bass Accelerator: Ensures tight, vibration-free low-end sound with an efficient bass reflex port design.
-
Constant Directivity Horn: Produces powerful mid and high-frequency sound with a broad and uniform listening area, enhancing the natural sound.
-
DSP Control Settings: Features Low EQ and High EQ knobs with 16 selectable positions, allowing for precise tuning to fit different room acoustics.
-
Professional Design: Includes a hexagonal aluminum front baffle that reduces vibrations and a tweeter protective guard, combining improved durability with a sleek appearance.
Specifications:
-
Dimensions: Width: 198 mm, Height: 300 mm, Depth: 265 mm
-
Weight: Not specified
-
Type: Bi-amp 2-way active speaker
-
Tweeter: 1-inch (25 mm) SILK soft dome
-
Woofer: 5.25-inch (133 mm) ARAMID cone
-
Auto Standby: Yes
-
Audio:
- Maximum Sound Pressure: 107 dB
- Amplifier Output: Class D with 96 kHz DSP
- LF: 30 W / 4 Ω
- HF: 30 W / 4 Ω
- Frequency Range: 40 Hz - 36 kHz
- Cross Over Frequency: 3 kHz
- Impedance: 10 kΩ
- High EQ: 4 selective EQs
- Low EQ: 4 selective EQs
-
Power Supply: AC 100-240 V, 50 Hz / 60 Hz
-
Construction:
- Enclosure: Bass reflex
- Enclosure Material: MDF vinyl laminate
- Baffle Material: HIPS with 4 mm aluminum plate
-
Terminals:
- Inputs: XLR/TRS combo x 1 (balanced input), RCA x 1 (unbalanced input)
Conclusion:
The Pioneer VM-50 offers a blend of advanced technology and robust construction, making it an excellent choice for audio professionals and enthusiasts. Its high-quality components and precision engineering ensure that every sound detail is accurately captured and reproduced. With customizable DSP settings and a sleek, durable design, the VM-50 is well-suited to meet the demands of modern audio production, delivering exceptional performance whether in a studio setting or home environment.
