The TP-Link TL-WPA4220 TKIT Powerline 600 Wi-Fi 3-Pack Kit is designed to enhance your home network by extending Wi-Fi and wired connections through your existing electrical wiring. This powerline kit provides a seamless and efficient way to deliver high-speed internet to every room without the need for new wiring or drilling.
Utilizing advanced HomePlug AV technology, the TL-WPA4220 TKIT offers data transfer speeds up to 600 Mbps and an impressive range of up to 300 meters over electrical circuits. This ensures stable and reliable performance for streaming HD content, online gaming, and large file downloads, all without interference from other electrical devices.

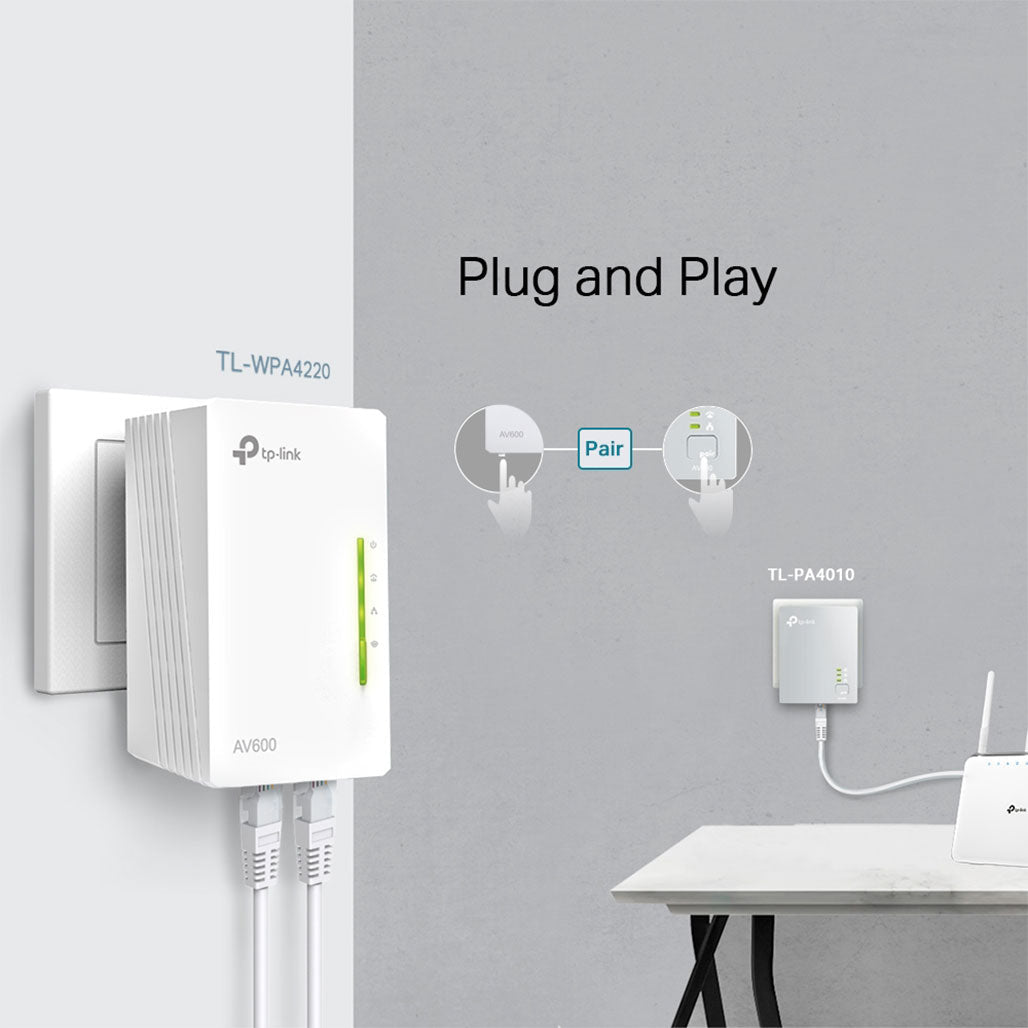

The setup process is straightforward: connect the TL-PA4010 to your router and plug the TL-WPA4220 units into power outlets wherever you need internet access. For added security, the “Pair” button on each adapter allows you to easily create a secure network. Additionally, the Wi-Fi Clone button enables you to copy your router's wireless settings for quick configuration.
Key Features:
-
Extended Coverage: Transform your home's electrical wiring into a high-speed network, reaching up to 300 meters and delivering consistent performance throughout your home.
-
High-Speed Data Transfer: Achieve speeds up to 600 Mbps using HomePlug AV technology, ideal for uninterrupted HD streaming and gaming.
-
Easy Setup: Plug and play design simplifies installation; just connect the TL-PA4010 to your router and place the TL-WPA4220 units where needed.
-
Enhanced Security: Use the “Pair” button for a secure network and the Wi-Fi Clone button to quickly replicate your existing wireless settings.
-

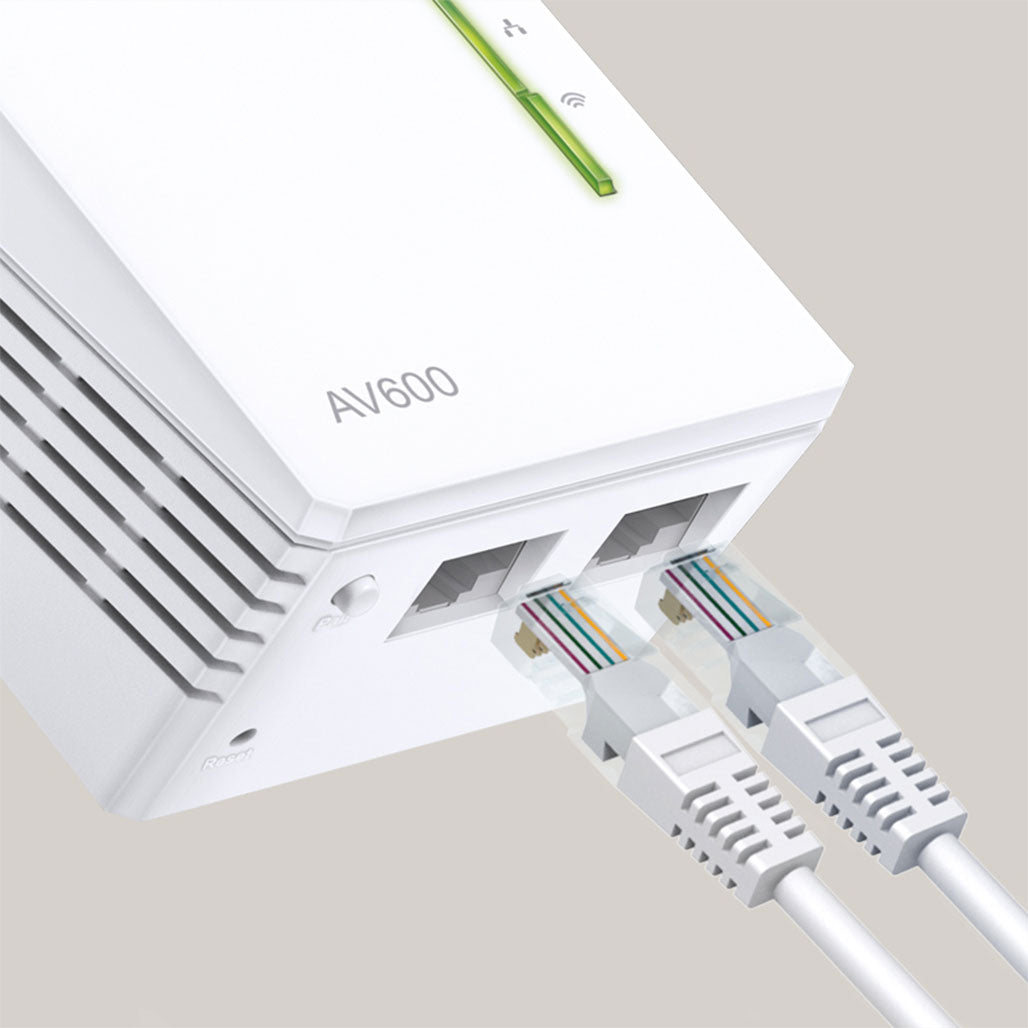

Multiple Ethernet Ports: Each TL-WPA4220 unit features two Ethernet ports, allowing you to connect wired devices like smart TVs and game consoles.
-
Smartphone Management: Manage your powerline network using the tpPLC app (for Android and iOS) or the tpPLC Utility on PCs.
Specifications:
-
Hardware Features:
- Plug Type: EU, UK
- Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
-
Interface:
- TL-WPA4220: 2× 10/100 Mbps Ethernet Port
- TL-PA4010: 1× 10/100 Mbps Ethernet Port
- Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
-
Power Consumption:
- Maximum: 12.916W (220V/50Hz)
- Typical: 12.302W (220V/50Hz)
- Standby: 8.780W (220V/50Hz)
- LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
-
Dimensions:
- TL-WPA4220: 2.1 x 1.6 x 3.7 in (54 x 40 x 94 mm)
- TL-PA4010: 2.0 x 1.1 x 2.6 in (52 x 28.5 x 65 mm)
- Range: 300 meters over electrical circuit
-
Wireless Features:
- Frequency: 2.4-2.4835 GHz
-
Signal Rate:
- 11n: Up to 300 Mbps (dynamic)
- 11g: Up to 54 Mbps (dynamic)
- 11b: Up to 11 Mbps (dynamic)
-
Reception Sensitivity:
- 270M: -68 dBm @10% PER
- 130M: -68 dBm @10% PER
- 108M: -68 dBm @10% PER
- 54M: -68 dBm @10% PER
- 11M: -85 dBm @8% PER
- 6M: -88 dBm @10% PER
- 1M: -90 dBm @8% PER
-
Wireless Security:
- 64/128/152-bit WEP
- WPA-PSK / WPA2-PSK
- WPA / WPA2
-
Transmission Power:
- CE: <20 dBm (2.4 GHz)
- FCC: <30 dBm
-
Software Features:
- Modulation Technology: OFDM (PLC)
-
Encryption:
- Powerline Security: 128-bit AES
- Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
-
Certification: CE, RoHS
-
Package Contents:
- 2× TL-WPA4220 Powerline Ethernet Adapters
- 1× TL-PA4010 Powerline Ethernet Adapter
- 3× 6.5 ft. (2 m) Ethernet Cables (RJ45)
- Quick Installation Guide
-
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
-
Environment:
- Operating Temperature: 0°C~40°C (32°F ~104°F)
- Storage Temperature: -40°C~70°C (-40°F ~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
The TP-Link TL-WPA4220 TKIT Powerline 600 Wi-Fi Kit is an ideal choice for extending your network coverage with minimal setup and maximum convenience. Enjoy reliable wired and wireless connections throughout your home, leveraging your existing electrical system for seamless internet access.
