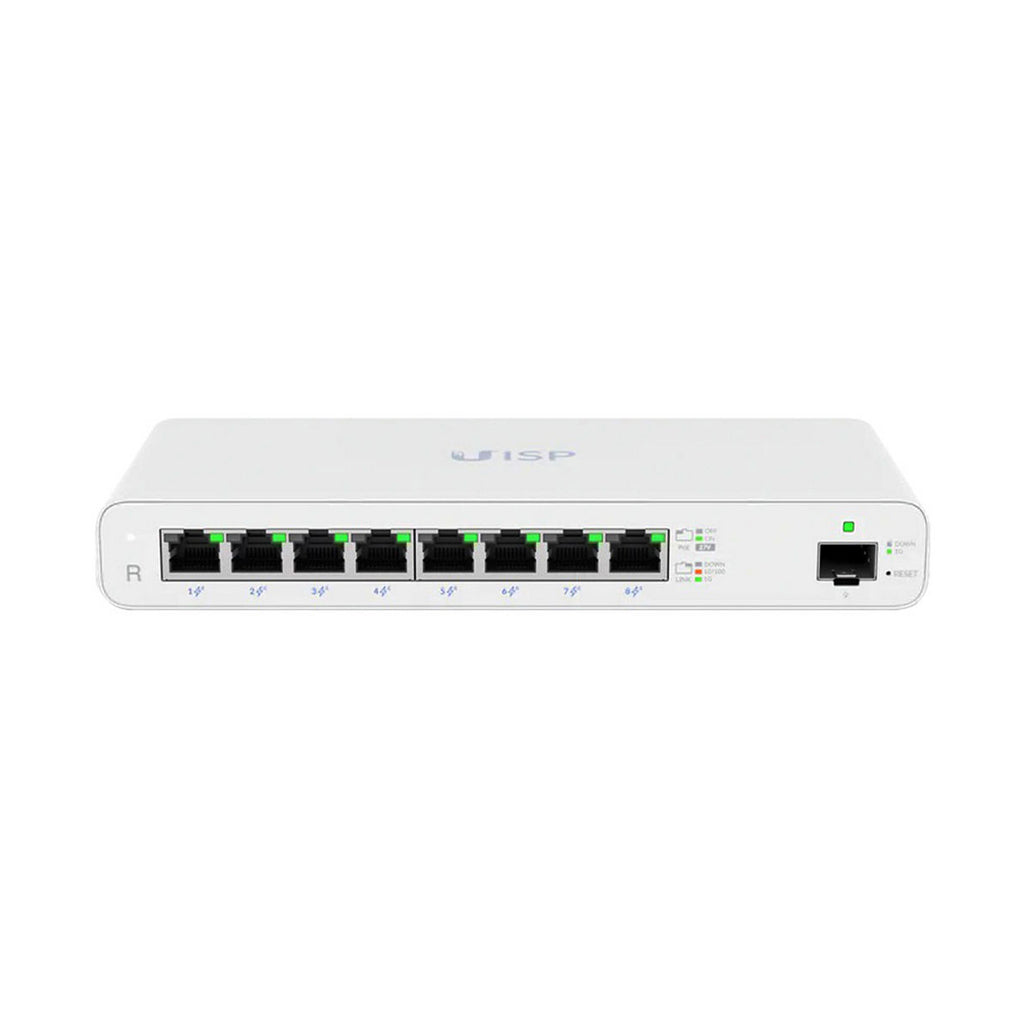

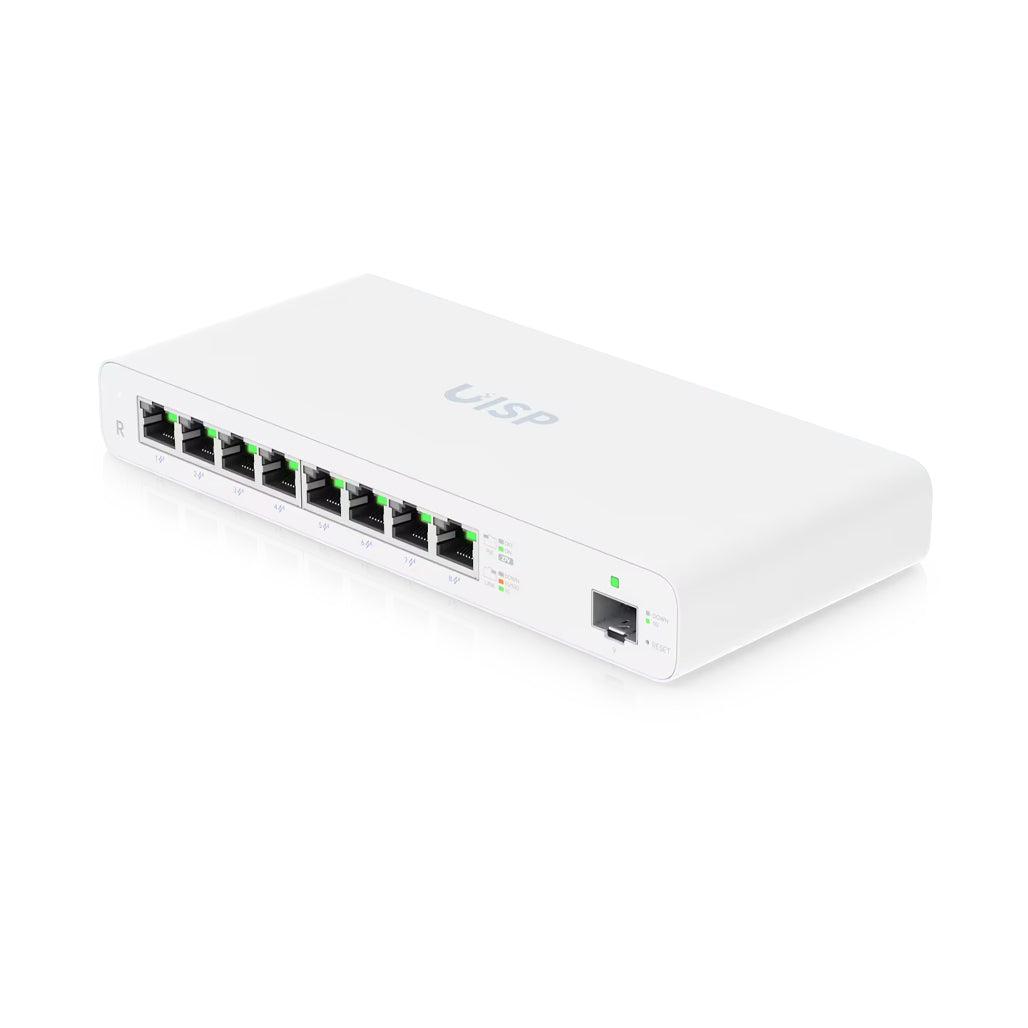

The Ubiquity UISP Router is engineered to support large-scale networks and MicroPoP applications with efficient Gigabit connectivity and robust PoE capabilities. This eight-port Gigabit Ethernet (GbE) router provides 27V passive PoE output across all ports, delivering up to 110W of power for versatile device connectivity. With a maximum throughput of 1 Gbps and advanced traffic management, this router ensures smooth and uninterrupted performance, even in high-demand environments. Its firewall and OSPF routing capabilities allow for reliable, secure connectivity and automated customer suspension, making it a versatile and valuable addition to any network.
Optimized for performance and durability, the UISP Router features a dual-core 880 MHz processor with 512 MB DDR3 memory and 512 MB of onboard NAND storage, designed to handle complex network tasks seamlessly. The addition of an SFP port enhances data transfer flexibility, while built-in ESD/EMP protection safeguards the system against potential disruptions. Housed in a durable polycarbonate enclosure, this router is well-suited for a wide range of environmental conditions. Management options via Ethernet In-Band and Bluetooth BLE offer ease of use and setup, allowing for efficient configuration through the latest UISP application.
Key Features:
- Eight GbE Ports: Supports passive PoE output for flexible device connections.
- 1 Gbps NAT Throughput: Offers high-speed data transfer and network performance.
- Advanced Traffic Shaping: Enables efficient management of network resources.
- Automated Suspension: Improves user management with automatic customer suspension capabilities.
- Secure Connectivity: Includes firewall and OSPF routing for protected, reliable connections.
- Flexible Management: Managed via Ethernet In-Band and Bluetooth BLE with UISP application support.
Specifications:
Mechanical
- Dimensions: 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1")
- Weight: 600 g (1.3 lb)
- Enclosure Material: Polycarbonate
Hardware
- Processor: Dual-core 880 MHz, MIPS1004Kc
- Memory: 512 MB DDR3
- Onboard Flash Storage: 512 MB NAND
- Networking Interface: (8) GbE RJ45 ports, (1) 1G SFP port
- Management Interface: Ethernet In-Band, Bluetooth BLE
- Power Method: External AC/DC adapter
- Power Supply: 27V DC, 4.4A power adapter (included)
- Supported Voltage Range: 24—28V DC
- Max. Power Consumption: 10W (Excluding PoE output)
- ESD/EMP Protection: Air: ± 15kV, contact: ± 8kV
- Ambient Operating Temperature: -10 to 50° C (14 to 122° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
PoE
- PoE Interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
- Max. Passive PoE Wattage per Port: 30W/27V DC
- Passive PoE Voltage Range: 27V DC
LEDs
- System: Status
- RJ45 Data Ports: PoE, Speed/link/activity
- SFP Data Port: Link/activity
Software
- Management Application: UISP: Version 1.4.0 and later
This Ubiquity UISP Router is ideal for businesses and network service providers needing reliable, high-performance network solutions with flexible management and robust PoE support. With advanced security and efficient traffic handling, this router provides a reliable backbone for modern, large-scale networking applications.
