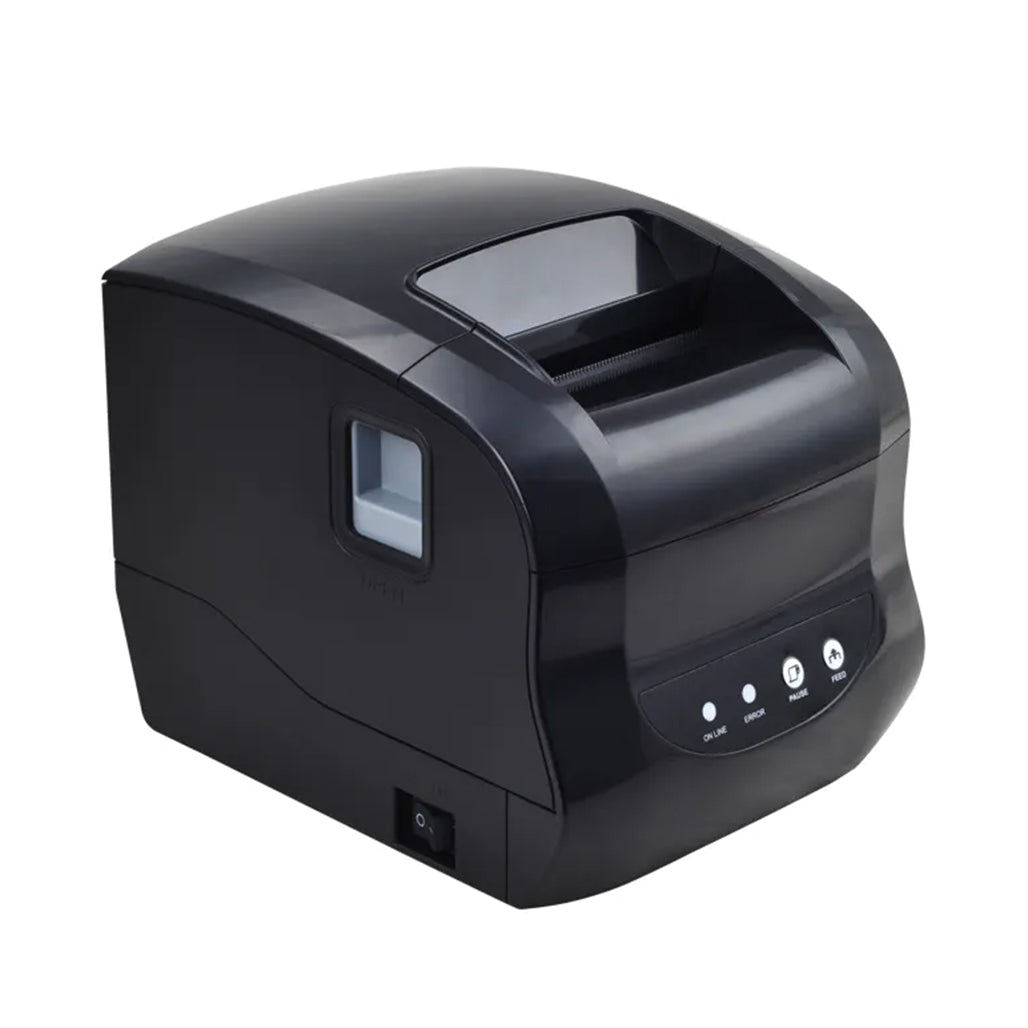

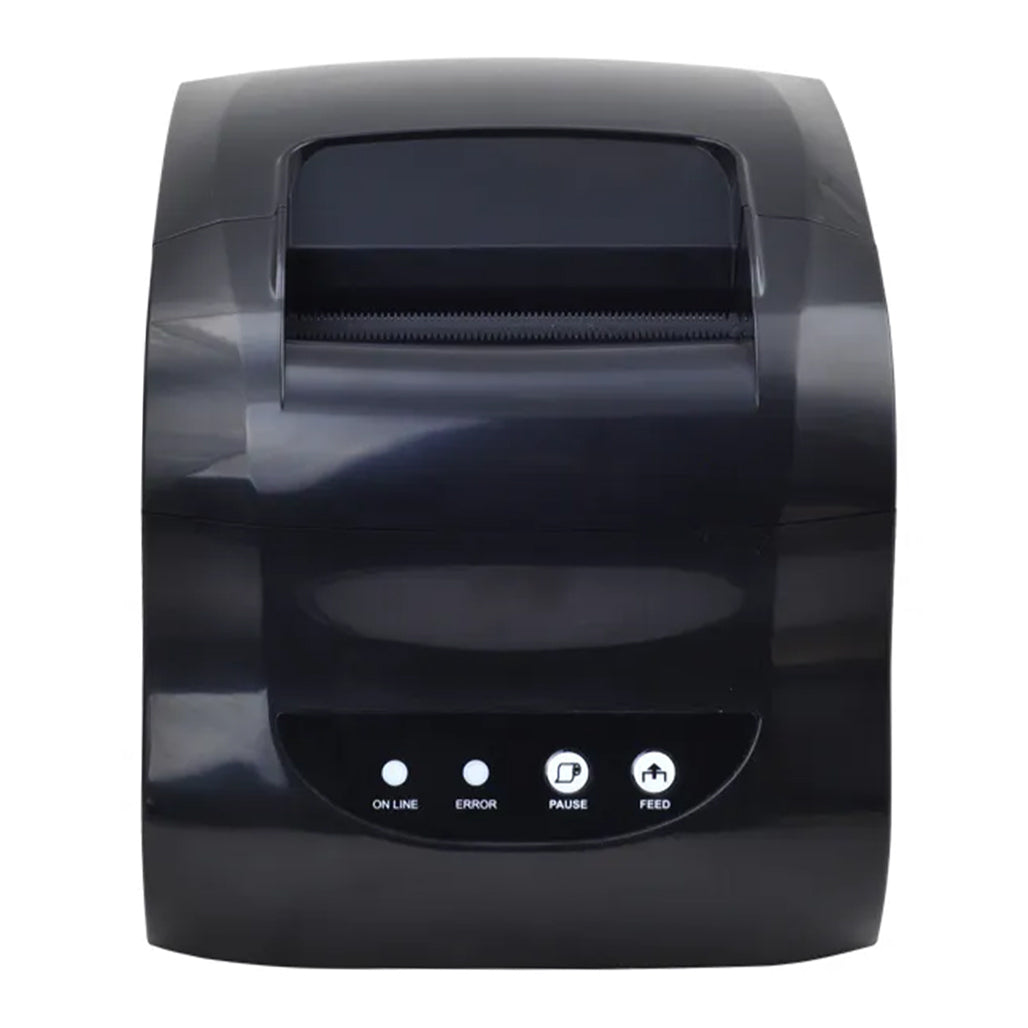

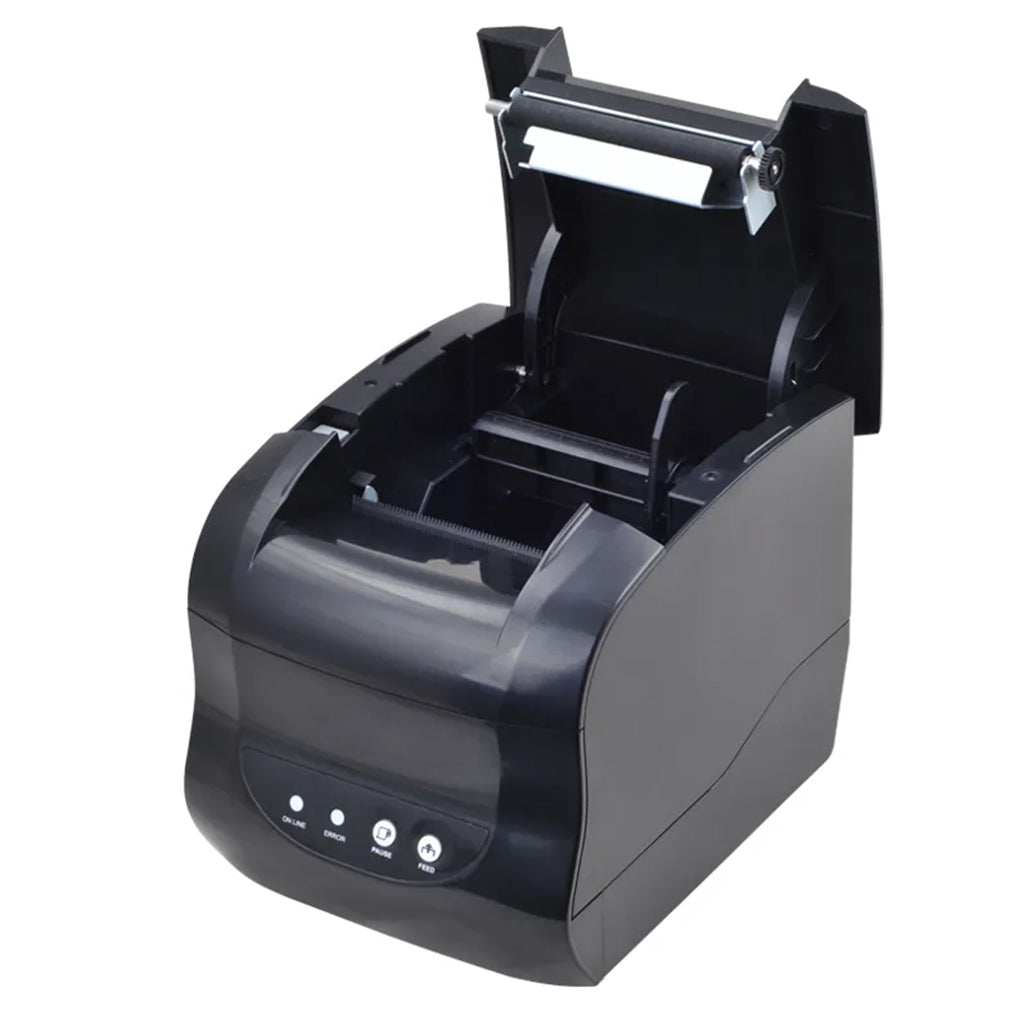

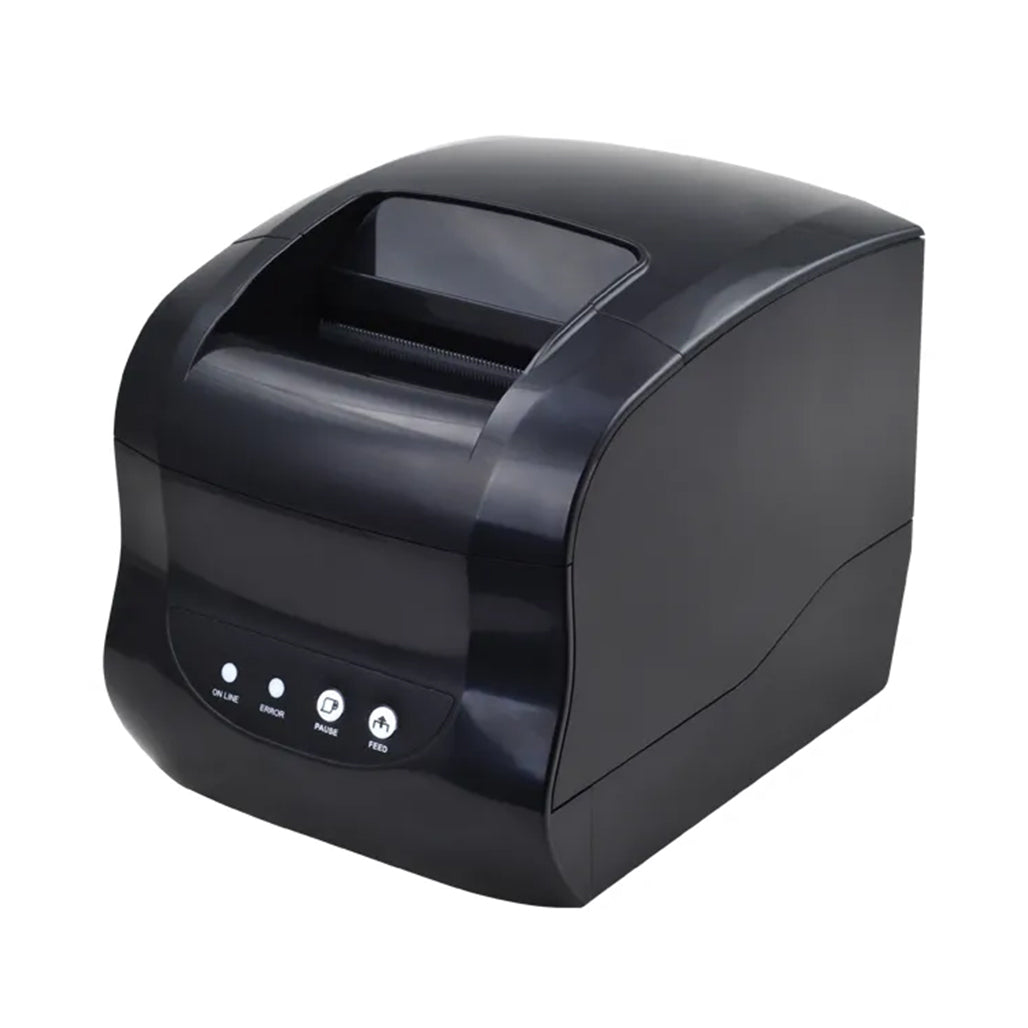

The Xprinter XP-365B Thermal Barcode Label Printer provides a reliable and efficient solution for printing high-quality barcode labels. Designed for various applications, this printer utilizes direct thermal printing technology to deliver clear and precise prints at a speed of up to 127 mm/second. With a maximum printing width of 76 mm and a resolution of 203 DPI, it ensures that every label is sharp and legible, making it an ideal choice for businesses that require fast and accurate labeling.
Equipped with a versatile range of features, the XP-365B supports multiple barcode formats, including CODE128, EAN128, and QR codes, among others. The printer's built-in fonts and scalability options offer flexibility in label design, while the photoelectric sensor for paper detection enhances printing accuracy. The device is compatible with various operating systems and supports USB connectivity for easy integration into existing systems. Its compact size and lightweight design, combined with robust performance, make it a valuable asset for efficient barcode labeling.
Key Features:
- Direct Thermal Printing Technology: Ensures high-quality prints without the need for ink or toner.
- High-Speed Printing: Capable of printing up to 127 mm/second for quick and efficient labeling.
- Resolution: 203 DPI for clear and detailed barcode labels.
- Barcode Compatibility: Supports a wide range of barcode formats, including CODE128, EAN128, and QR codes.
- Built-In Fonts: Includes FONT 0 to FONT 8, K, TST24.BF2, and TSS24.BF2 for flexible label design.
- Scaling & Rotation: Offers 1-10x enlargement and multiple rotation options (0°, 90°, 180°, 270°).
- Paper Detection: Utilizes a photoelectric sensor for accurate paper handling.
- Compact Design: Dimensions of 212 x 140 x 144 mm and a weight of 0.94 kg make it suitable for various workspaces.
- Connectivity: USB interface for seamless integration with computers.
- Memory: Equipped with 4M RAM and 4M FLASH for efficient data processing and storage.
- Emulation Modes: Supports ESC/POS/TSC for compatibility with different software systems.
Specifications:
- Model: XP-365B
- Printing Technology: Direct Thermal
- Resolution: 203 DPI
- Max Printing Width: 76 mm
- Speed: Up to 127 mm/second
- Print Head Sensor: Microswitch
- Supported Media: Thermal Paper
- Barcode Compatibility: Includes CODE128, EAN128, CODE39, EAN13, CODABAR, UPC-A, UPC-E, QRCODE, PDF417, DataMatrix, and more
- Max Paper Diameter: 82 mm
- Paper Tear-off Mode: Yes
- Built-in Fonts: Includes FONT 0 to FONT 8, K, TST24.BF2, TSS24.BF2
- Scaling & Rotation: 1-10x enlargement, 0°/90°/180°/270° rotation
- Weight: 0.94 kg
- Dimensions: 212 x 140 x 144 mm (Depth x Width x Height)
-
Operating Conditions:
- Work: 5 to 45°C, 20-80% RH
- Storage: -40 to 55°C, ≤93% RH at 40°C
- Drivers: Compatible with Win XP/Vista/7/8/8.1/10
- Power Input: DC 24V/2.5A
- Paper Detection: Photoelectric sensor
- Connectivity: USB
-
Memory:
- RAM: 4M
- FLASH: 4M
- Supported Image Files: Monochromatic PCX, BMP (can be loaded to FLASH)
- Emulation Modes: ESC/POS/TSC
Conclusion:
The Xprinter XP-365B Thermal Barcode Label Printer combines high-speed performance, versatile barcode compatibility, and user-friendly features to provide an efficient labeling solution. Its direct thermal printing technology and robust design ensure reliable operation in various environments. Ideal for businesses and offices, this printer offers both functionality and convenience, making it a valuable tool for accurate and efficient barcode printing.
