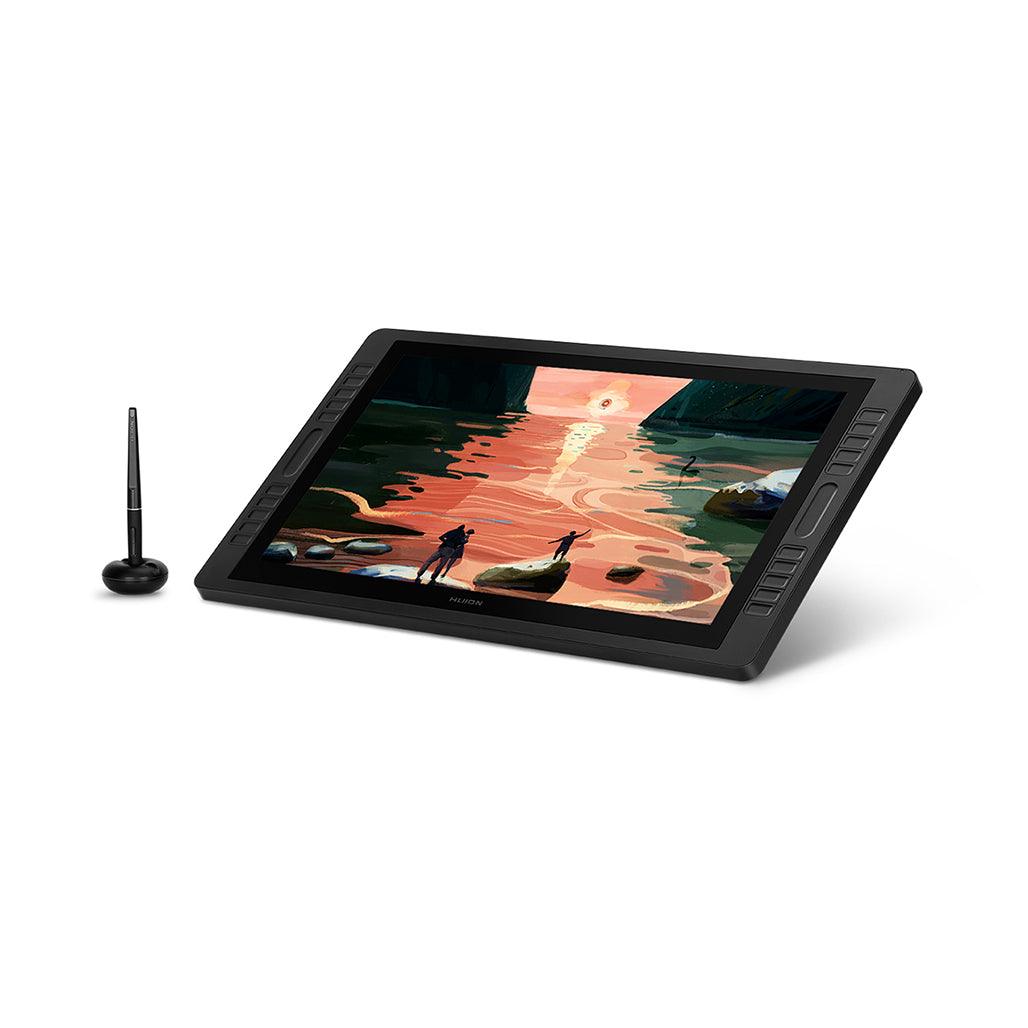

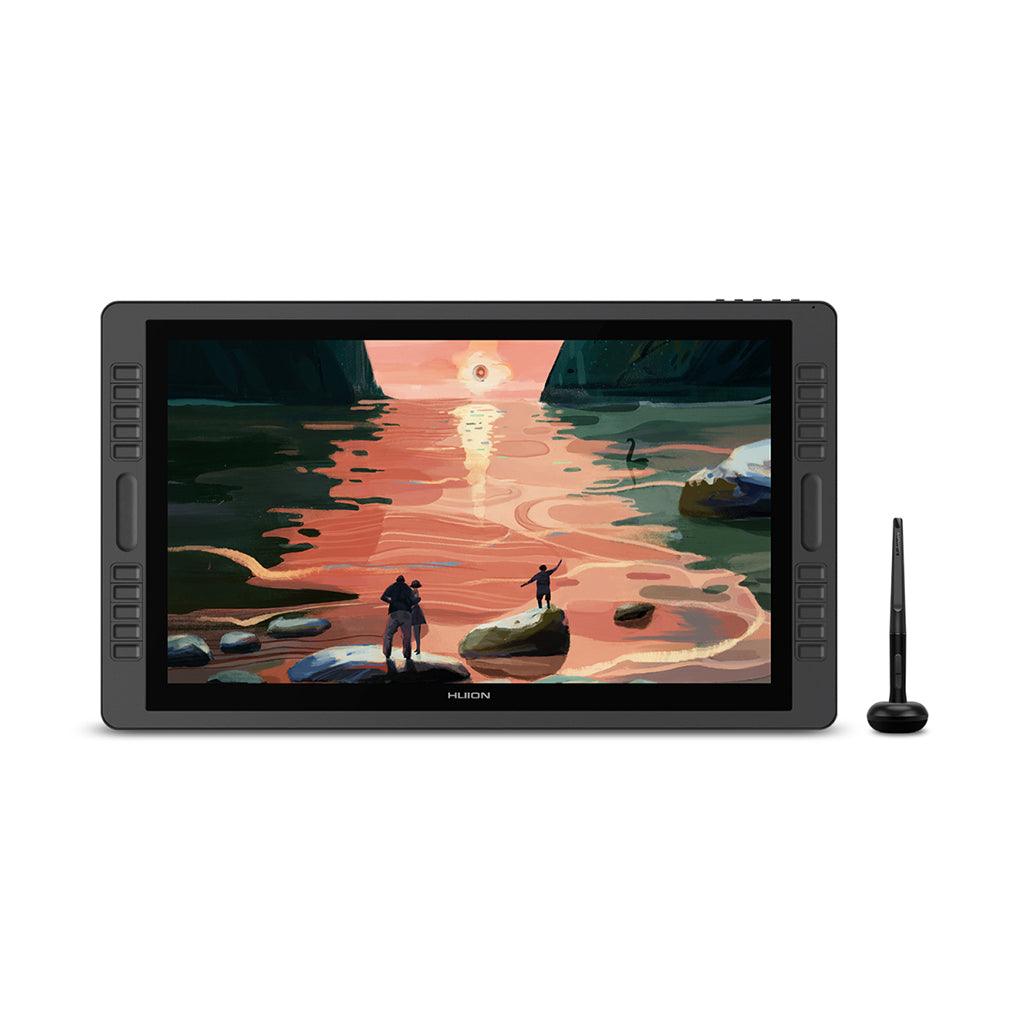

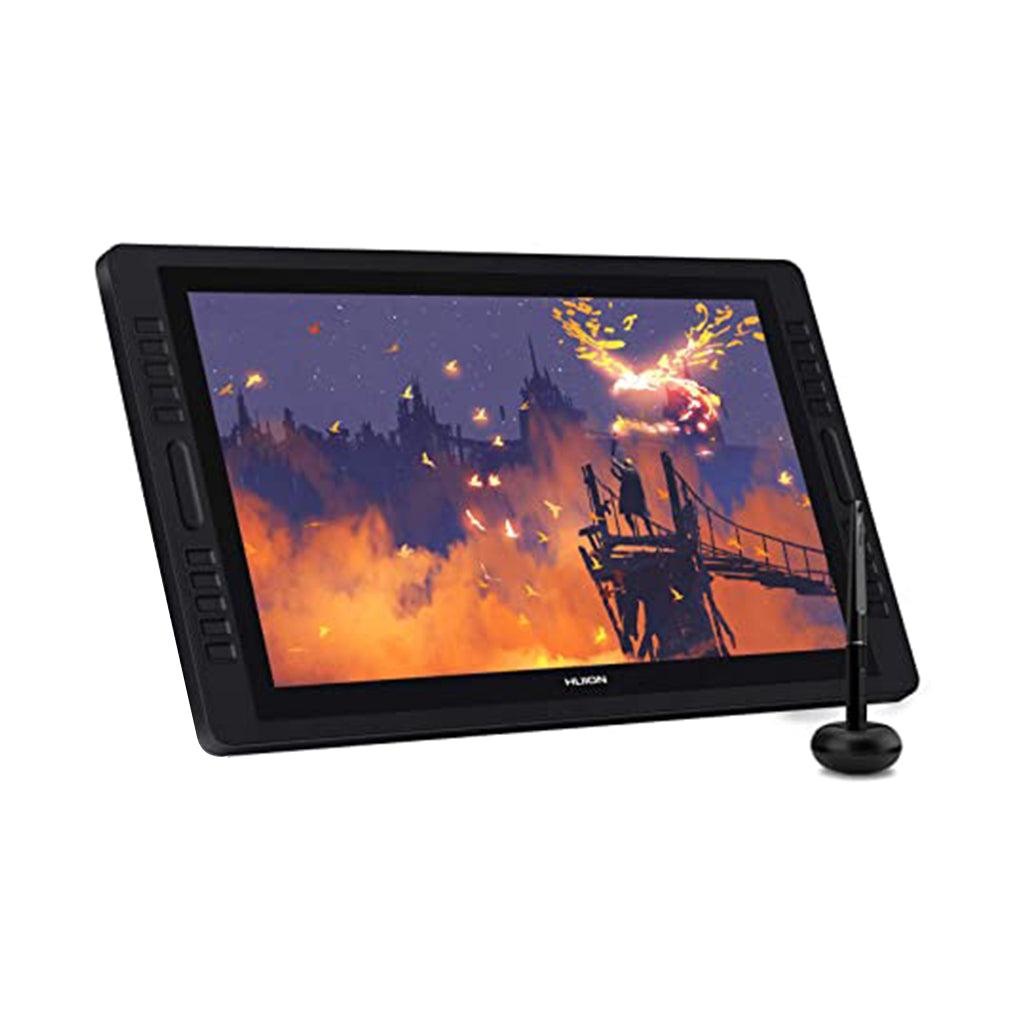

The Kamvas Pro 22 (2019) is a 21.5-inch professional drawing monitor designed to offer exceptional visual clarity and precise input for artists and designers. With a Full HD resolution of 1920 x 1080, this monitor features an IPS LCD panel that ensures vibrant color reproduction and wide viewing angles, making it ideal for detailed artwork and accurate color representation. The screen's active area measures 476.64 x 268.11 mm, and it boasts a contrast ratio of 1000:1 and a brightness of 250 cd/m², providing clear visibility under various lighting conditions.
Equipped with advanced pen technology, the Kamvas Pro 22 utilizes a Battery-Free Electromagnetic Resonance (EMR) system, offering 8192 levels of pressure sensitivity and a pen resolution of 5080 LPI. This technology ensures a natural and responsive drawing experience. The monitor supports tilt recognition up to ±60° and features dual-touch bars for intuitive finger input. The display is fully laminated and covered with AG Glass, enhancing durability and reducing glare. With comprehensive connectivity options including HDMI, DP, and VGA, and support for both Windows and macOS, the Kamvas Pro 22 is a versatile tool suited for professional creative work.
Key Features:
- Panel Size: 21.5 inches
- Resolution: 1920 x 1080 (16:9)
- LCD Type: IPS
- Active Area: 476.64 x 268.11 mm
- Contrast Ratio: 1000:1
- Brightness: 250 cd/m²
- Response Time: 8 ms
- Viewing Angle: 89°/89° (H)/89°/89° (V) (Typ.) (CR > 10)
- Gamut: 120% sRGB
- Display Color: 16.7M (8-bit)
- Pen Technology: Battery-Free Electromagnetic Resonance
- Pen Resolution: 5080 LPI
- Pressure Levels: 8192 Levels
- Accuracy: ±0.5 mm (Center), ±3 mm (Corner)
- Reading Height: 10 mm
- Tilt Recognition: ±60°
- Finger Touch: Dual Touch Bar
- Digital Pen: PW500
- Input Voltage: AC 100-240V, 50/60Hz
- Output Voltage: 12V 3A
- Video Interface: HDMI, DP, VGA
- Press Keys: 20 Programmable Press Keys
- Adjustable Stand: ST100
- OS Support: Windows 7 or later, macOS 10.12 or later
- AG Glass: Yes
- Full Lamination: Yes
- Power Consumption: ≤24W
- Standby Consumption: ≤0.3W
- Working Temp. and Humidity: 0-40°C, 20-80%
- Storage Temp. and Humidity: -20°C~60°C, 10-90%
- Dimension: 589 x 344 x 21 mm (Without Stand)
- Net Weight: 4.5 kg (With Stand)
The Kamvas Pro 22 (2019) combines high-resolution display quality with advanced pen technology to support a wide range of artistic and design needs. Its comprehensive feature set and durable construction ensure that it meets the demands of professional users, providing an efficient and effective tool for creative work.
