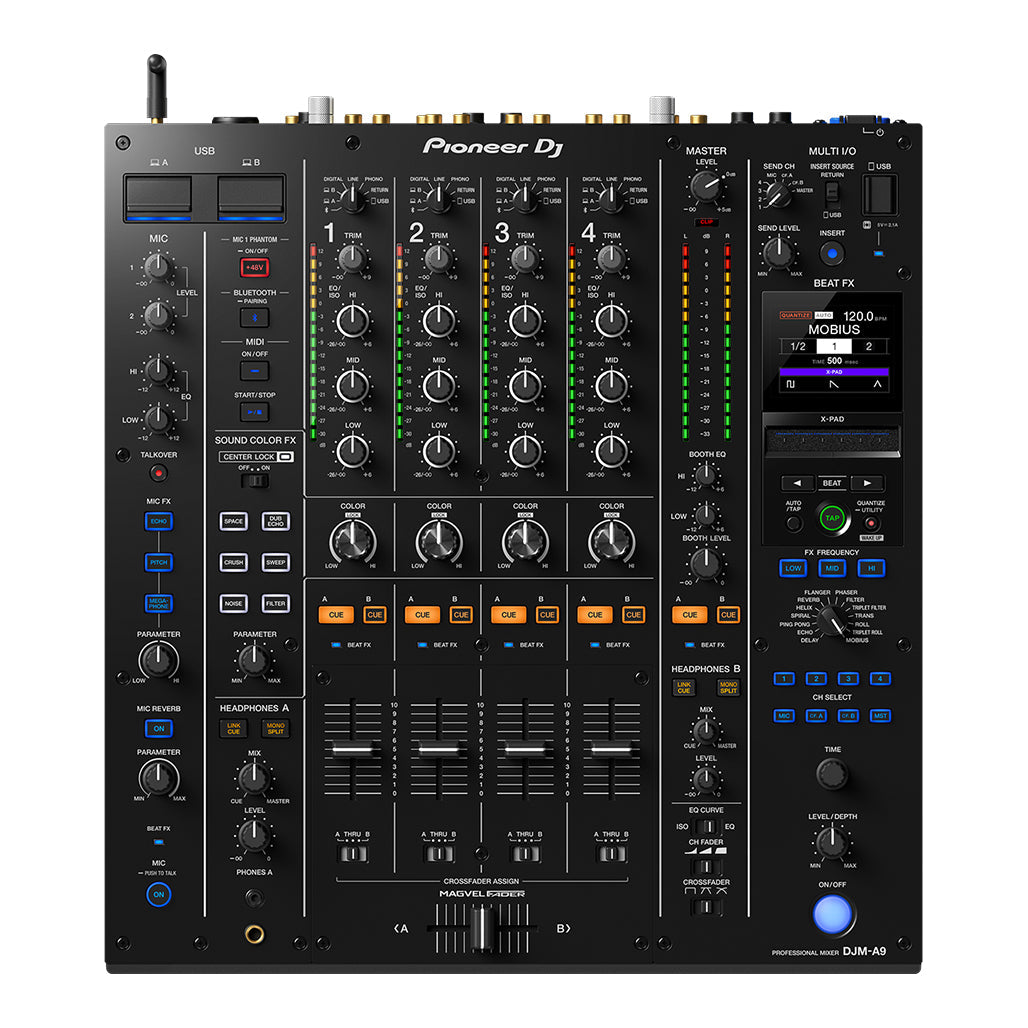

The Pioneer DJM-A9, a flagship 4-channel DJ mixer, introduces significant advancements over its predecessor, the DJM-900NXS2. This mixer is designed for professionals seeking exceptional sound clarity, advanced playability, and enhanced connectivity. The DJM-A9 integrates cutting-edge technology and design improvements to elevate the DJ experience, maintaining the familiar layout and functions that have set the standard in the industry.
The DJM-A9 delivers superior audio performance through its sophisticated technology. It is equipped with an ESS Technology 32-bit A/D converter for unparalleled sound resolution, and the master and booth output sections feature 32-bit D/A converters for consistent audio quality. Improvements in microphone and headphone output sound quality are achieved through advanced component selection and design optimization. The mixer’s playability is enhanced with optimized EQ knobs, bright LEDs for visual feedback, and an upgraded MAGVEL FADER crossfader, which ensures smooth mixing and precise control.
Key Features
-
Sound Color FX with Center Lock Knob: A world-first Center Lock knob feature allows the Sound Color FX to stop turning at the center position, enabling precise effect adjustments without accidental parameter changes.
-
Advanced Beat FX: The DJM-A9 includes a new color display and lighting for the Beat FX, with a dedicated X-Pad for intuitive control. Three new Beat FX (Mobius, Triplet Filter, Triplet Roll) expand creative possibilities.
-
Enhanced Mic Section: Features a phantom-powered input for high-quality condenser mics, three new microphone effects (Echo, Pitch, Megaphone), and a dedicated reverb effect. The Push To Talk button offers convenient mic control, and audio exclusion from recording is available.
-
Expanded Connectivity: Dual USB Type-B and USB Type-C ports enable simultaneous connection of two PC/Mac systems, facilitating seamless transitions between DJs. A Bluetooth® input and Multi I/O section with independent channel selector offer extensive connectivity options.
-
Dual Headphone Outputs and Booth EQ: Two headphone outputs with separate controls allow multiple DJs to monitor and cue tracks simultaneously. The 2-band booth EQ adjusts high and low frequencies to match the master output and improve booth sound.
-
Support for Stagehand App: Compatibility with the Stagehand app allows for remote management of the mixer, providing engineers with real-time monitoring and control over sound system settings.
Specifications
- Dimensions (W x D x H): 407.4 x 107.9 x 458.3 mm (407.4 x 140.7 x 458.3 mm when wireless antenna is upright)
- Sampling Rate: 96 kHz
- CH Input A/D Converter: 32 bit
- Weight: 10.2 kg
- MASTER, BOOTH, REC, SEND D/A Converter: 32 bit
- Signal-to-Noise Ratios: Line: 105 dB; Phono: 88 dB; Mic: 79 dB
- Distortion: Less than 0.005% (LINE)
- Channels EQ/ISO: 3 band
- EQ Range: Built-in, switchable 3-band equaliser: -26 dB to +6 dB
- Performance Control Channels: 4
- MULTI I/O: USB (Type A)
- Sound Color FX: Space, Dub Echo, Sweep, Noise, Crush, Filter
- Beat FX: Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Flanger, Phaser, Filter, Triplet Filter, Trans, Roll, Triplet Roll, Mobius
- Screen Display: Yes
- X-PAD: Yes
- rekordbox Quantize: Yes
- Crossfader Type: Magvel Fader
- Curve Assignable: Yes
- Fader Curve: 3
- Mic Connection: XLR / 1/4-inch combo jack; 1/4-inch TRS jack
- Mic EQ: 2 band
- Mic EQ Range: -12 dB to +12 dB
- Phantom Power: Yes
- Microphone Effects: Echo, Pitch, Megaphone, Reverb
- Push-to-Talk Function: Yes
- Talkover: Dedicated button
- Talkover Attenuator: Yes
- Inputs: 4 DIGITAL (Coaxial), 4 LINE (RCA), 4 PHONO (RCA)
- Send/Return: 1 SEND (1/4-inch TS jack), 1 RETURN (1/4-inch TS jack)
- LAN: 1

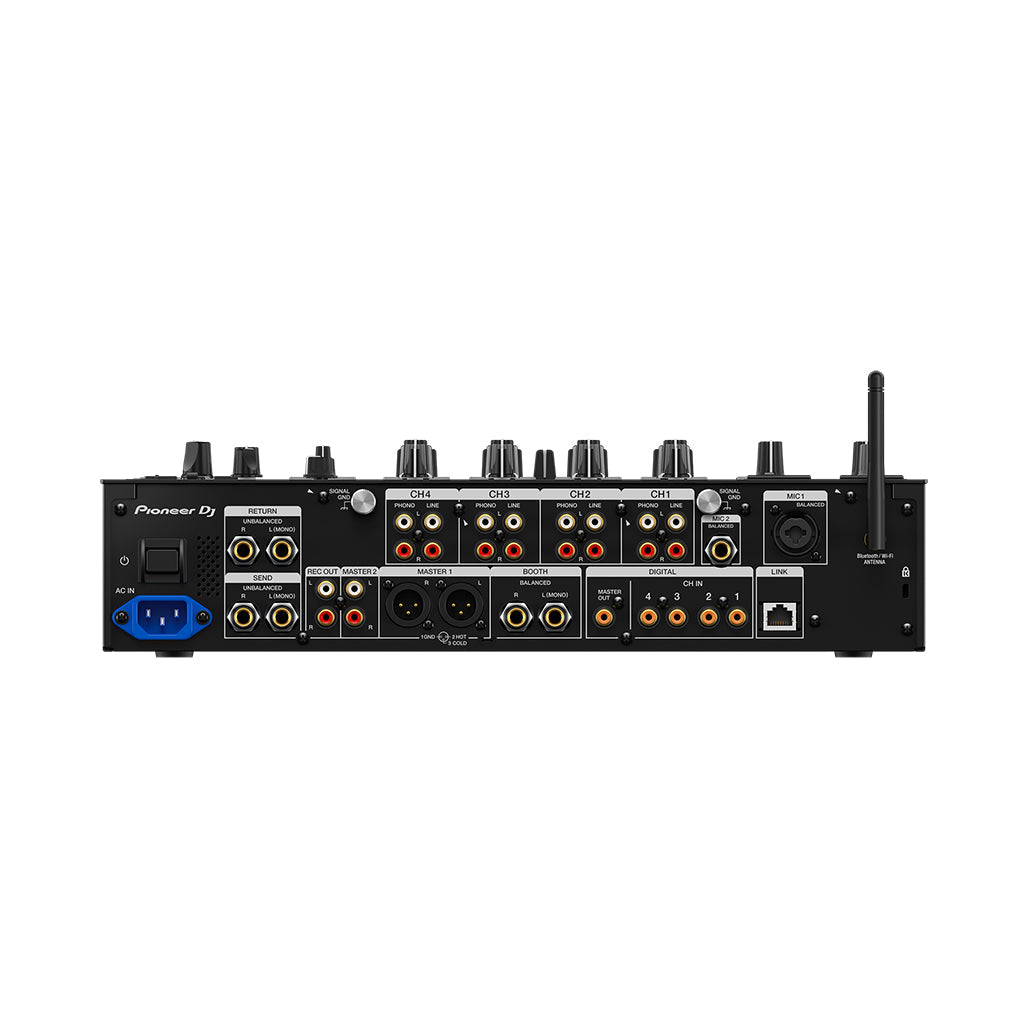

- Outputs: 1 MASTER (XLR, RCA), 1 BOOTH (1/4 inch TRS jack), 2 HEADPHONE MONITOR (1/4 inch jack, mini-jack), 1 REC OUT (RCA), 1 DIGITAL (Coaxial)
- USB: 1 USB A port, 2 USB B ports, 2 USB C ports
The Pioneer DJM-A9 stands as a powerful tool for DJs, combining high-resolution sound quality with advanced features and connectivity options. This mixer is designed to meet the needs of both live performances and studio sessions, offering precise control, enhanced sound effects, and seamless integration with modern technology.
