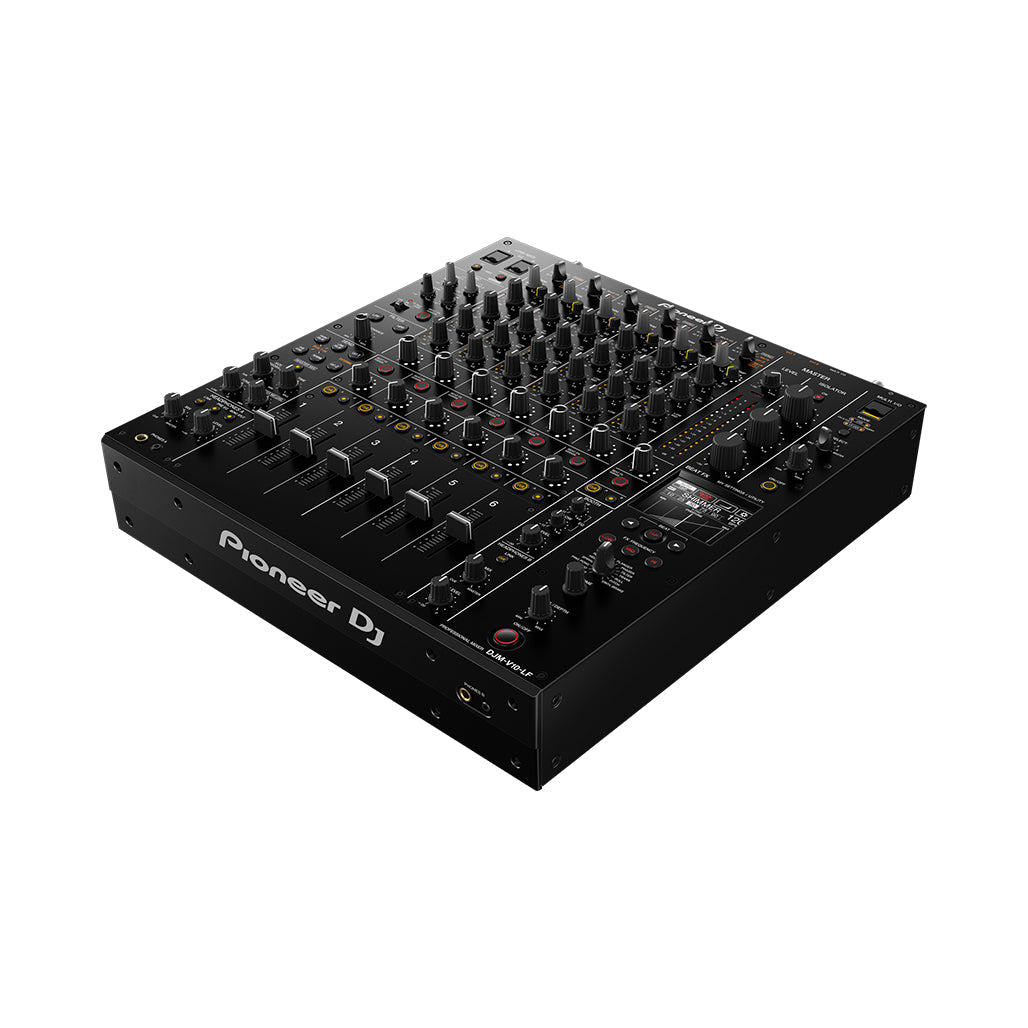

The Pioneer DJM-V10-LF represents an evolution in DJ mixing, featuring longer 60 mm shaft slide faders that enhance control and precision. Designed to meet the needs of discerning DJs, this mixer offers an exceptional level of detail and accuracy for smooth, expressive performances. The new long faders and optimized fader curves contribute to a superior mixing experience, allowing for finer adjustments and creative freedom.
The DJM-V10-LF is engineered with studio-quality audio components, including 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, and a low-jitter clock circuit. These features ensure that the mixer delivers a full, dynamic sound with deep lows, rich mids, and crisp highs. The 6-channel layout with diverse input options allows DJs to configure their setups to suit any performance style.
Key Features
-
60 mm Shaft Slide Faders: The DJM-V10-LF is equipped with extended 60 mm shaft slide faders that replace the standard 45 mm faders. This upgrade provides enhanced control over audio volume, allowing for smooth and detailed mixing.
-
Unique Fader Curve Presets: The mixer includes two classic fader curves optimized for the longer fader length, along with a new custom-designed curve preset. These options enable precise volume adjustments and fine control over the output sound.
-
Studio-Quality Audio Processing: Featuring 64-bit mixing and dithering processing, and 32-bit A/D and D/A converters, the DJM-V10-LF offers superior sound quality with a full low-end, vibrant mids, and accurate highs.
-
Advanced 4-Band EQ and Compressor: The newly developed 4-band EQ provides comprehensive control over your mix, while the built-in compressor allows for further loudness adjustments, refining your audio output.
-
Enhanced Effects Capabilities: The expanded send/return section supports the addition of external effects and their combination with built-in effects, offering extensive creative possibilities.
-
Multiple Connectivity Options: The mixer includes a variety of input and output options, including digital, line, and phono inputs, as well as multiple outputs for flexible setup configurations.
Specifications
- Dimensions: Width: 437.6 mm, Height: 107.9 mm, Depth: 467 mm
- Weight: 11.9 kg
- Sampling Rate: 96 kHz
- A/D Converter: 32 bit
- D/A Converter: 32 bit
- Signal-to-Noise Ratios: Line: 105 dB, Phono: 88 dB, Mic: 79 dB
- Frequency Range: 20 - 40,000 Hz
- Distortion: Less than 0.005% (LINE)
- Channels EQ: 4 band
- EQ Range: [Hi/Low]: -∞ to +6 dB, [Hi Mid/Low Mid]: -26 dB to +6 dB
- Performance Control Channels: 6
- Filter: HPF, LPF
- SEND Effects: Short Delay, Long Delay, Dub Echo, Reverb; 2 Externals (1/4-inch TS jack)
- MULTI I/O: 1/4-inch jack, USB (Type A)
- Beat FX: Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Shimmer, Flanger, Phaser, Filter, Trans, Roll, Pitch, Vinyl Brake
- Mic Connection: XLR / 1/4-inch combo jack, 1/4-inch TRS jack
- Talkover: 3 Position Switch
- Terminals: Inputs - 6 DIGITAL (Coaxial), 6 LINE (RCA), 4 PHONO (RCA); Send/Return - 3 SEND (1/4-inch TS jack), 3 RETURN (1/4-inch TS jack)
- LAN: 1
- Outputs: 2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch TRS jack), 4 HEADPHONE MONITOR (1/4 inch jack, mini-jack), 1 REC OUT (RCA), 1 DIGITAL (AES/EBU), 1 MIDI (DIN)
- USB: 2 USB B ports, 1 USB A port
The Pioneer DJM-V10-LF combines innovative fader technology with exceptional sound quality, making it a valuable tool for DJs seeking precision and versatility. Its longer faders and unique curve presets enhance mixing accuracy, while its comprehensive feature set and high-quality audio components ensure that every performance is both dynamic and expressive.
