PANEL
Type: Transmissive LCD, Poly-silicon TFT Active Matrix
Size and Number: 0.55” diagonal, 3 panels
Aspect Ratio: 4:3
Native Resolution: 1024 x 768 (XGA), 786432 pixels
OPTICS
Lamp Type: 215W NSHA
Lens F Number and Focal Length: F2.0 – F2.15; f=18.38 – 22.06mm
Zoom Magnification and Control: 1.2x Manual
Focus Control: Manual
Lens Shift: 6 : 1 (fixed)
IMAGE AND AUDIO
Brightness: 2200 lumens
Brightness Uniformity: 85%
Contrast Ratio: 500:1
Projection Distance Coverage: 1.3m – 11.8m (3.3m – 3.9m for 100” image)
Screen Size: 40” - 300” (813 x 610mm – 6096 x 4572mm)
Digital Zoom Magnification: 0.5x – 4x
Keystone Correction Range: Vertical: Manual +/- 30° ; Auto +/- 20°
Analogue RGB Compatibility: (WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA / MAC
Component Video Scan Systems: 1080i / 1035i / 720p / 575p / 575i / 480p / 480i
Video / S-Video Colour Systems: PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Display Modes: Presentation, Standard, High Contrast, Cinema, Blackboard (green), Colour board (red, blue, yellow, green), User 1 – 4

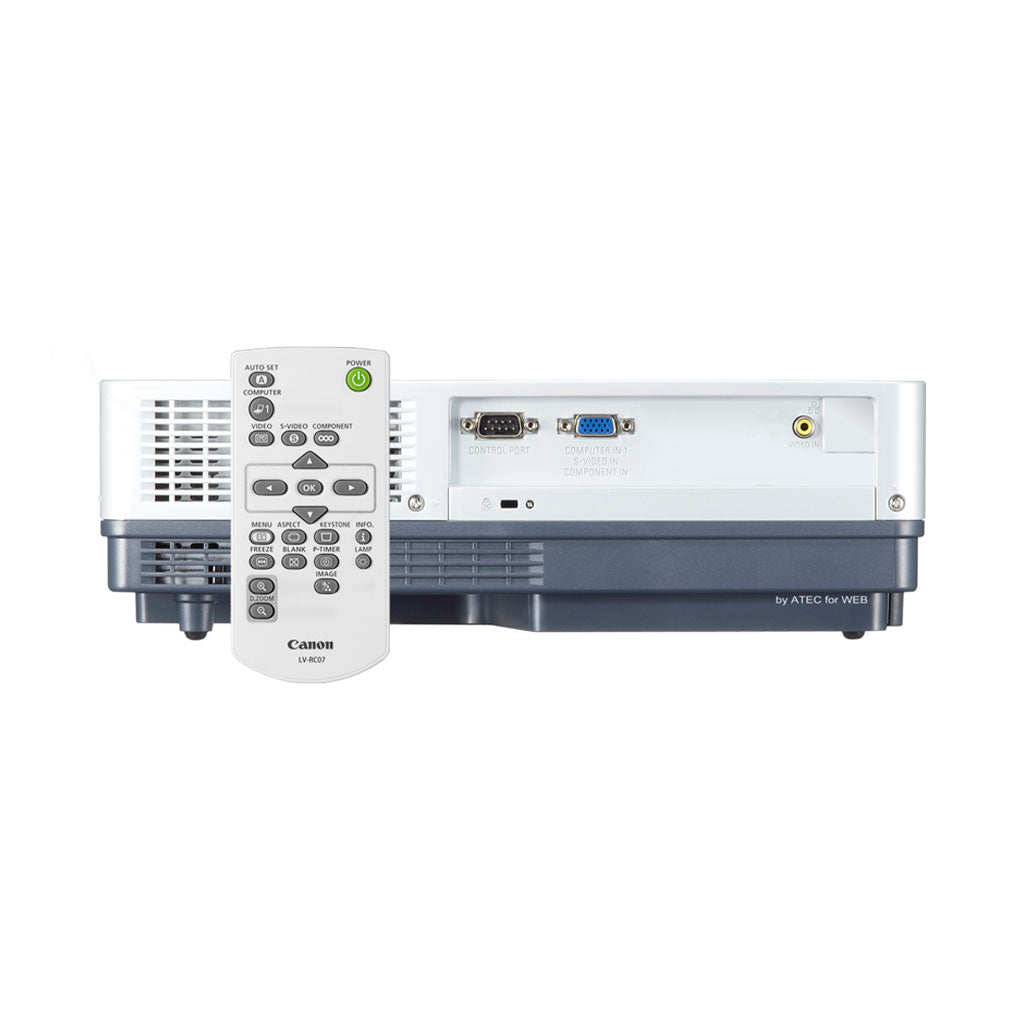

Digital Video and Audio Input
Analogue RGB Input 1: Mini D-Sub 15-pin (Component Video via optional cable / S-Video via optional cable / SCART-RGB via optional cable)
S-Video Input: Mini D-Sub 15-pin (Shared with RGB input 1, via optional cable)
Composite Video Input: RCA x1
Audio Output
Service Port / Projector Control: Mini D-Sub 9-pin (RS-232c)
MECHANISMS
Front Elevation Mechanism: 1x Mechanical foot, 10° maximum image elevation
Rear Adjustment Mechanism -
RATINGS
Dimensions (W x H x D): 334mm x 101mm x 247mm
Weight: 2.8kg
Power Source; 100V - 240V AC, 50/60Hz
Power Consumption: Lamp Mode – High / Normal / Eco: 243 W / 218 W / 175 W Standby in Eco Mode: 0.5 W
Noise Level: Lamp Mode - High / Normal / Eco: 36.4dBA / 34.4dBA / 29.0dBA
Operating Environment: +5°C to +35°C
Storage Environment: -10°C to +60°C
