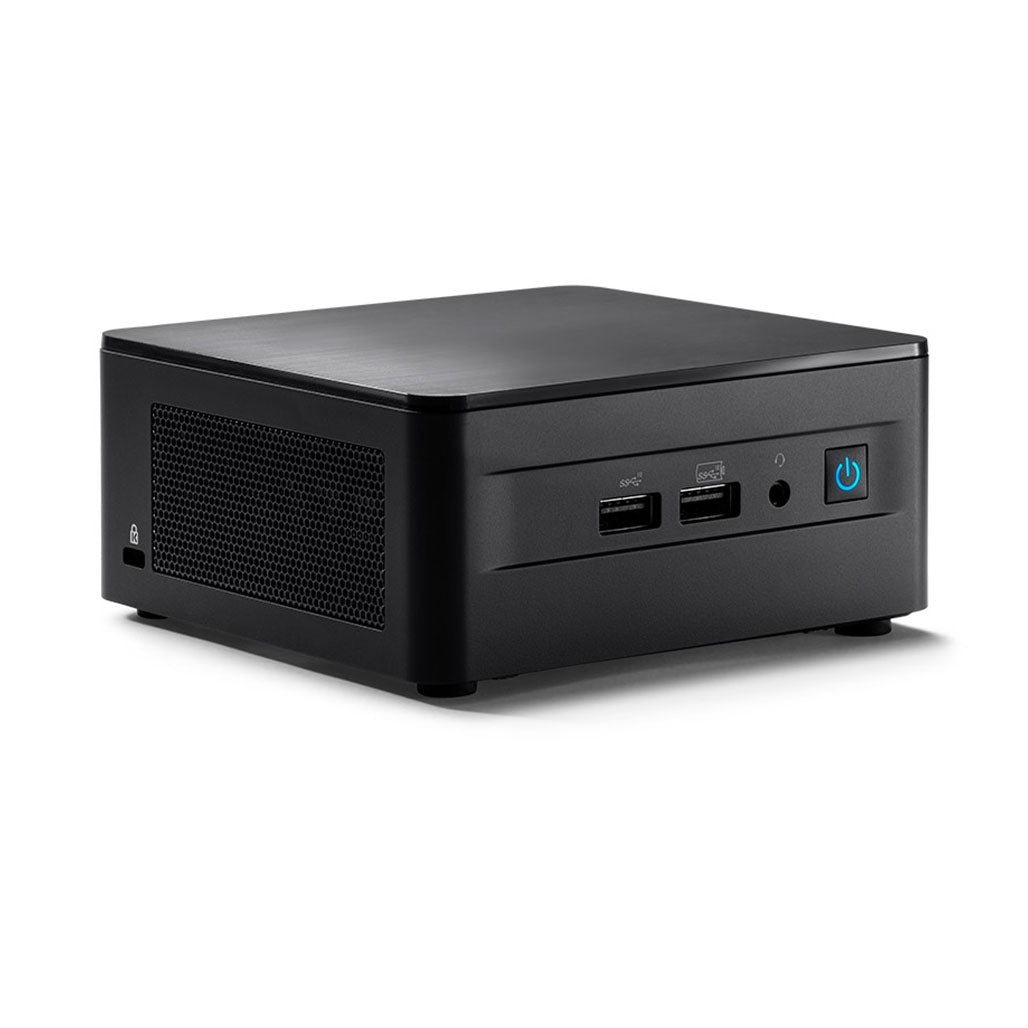

Intel NUC 12 Pro Kit Single Unit RNUC12WSHI7000 - Intel Core i7-1260P

Essentials

Product Collection

Intel® NUC Kit with 12th Generation Intel® Core™ Processors

Supported Operating Systems

Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro, Red Hat Linux, Ubuntu 20.04 LTS (not included)

Board Number

NUC12WSBi7

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

3

TDP

35 W

DC Input Voltage Supported

12-20 VDC

Processor Included

Intel® Core™ i7-1260P Processor (18M Cache, up to 4.70 GHz)

# of Cores

12

# of Threads

16

Lithography

Intel 7

Max Turbo Frequency

4.70 GHz

Memory & Storage

Max Memory Size (dependent on memory type)

64 GB (not included)

Memory Types

DDR4-3200 1.2V SODIMMs

Max # of Memory Channels

2

Max # of DIMMs

2

ECC Memory Supported*

No

Processor Graphics

Integrated Graphics*

Yes

Graphics Output

Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C

# of Displays Supported*

4

Expansion Options

PCI Express Revision

Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations*

PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)

M.2 Card Slot (wireless)

22x30 (E)

M.2 Card Slot (storage)

22x80 NVMe (M); 22x42 SATA (B)

Chassis Features and Size

Chassis Dimensions

117 x 112 x 54 mm

Chassis Features

Kensington lock with base security, 2.5” drive bay (15mm SATA), VESA mounting plate included

I/O Specifications

# of USB Ports

4

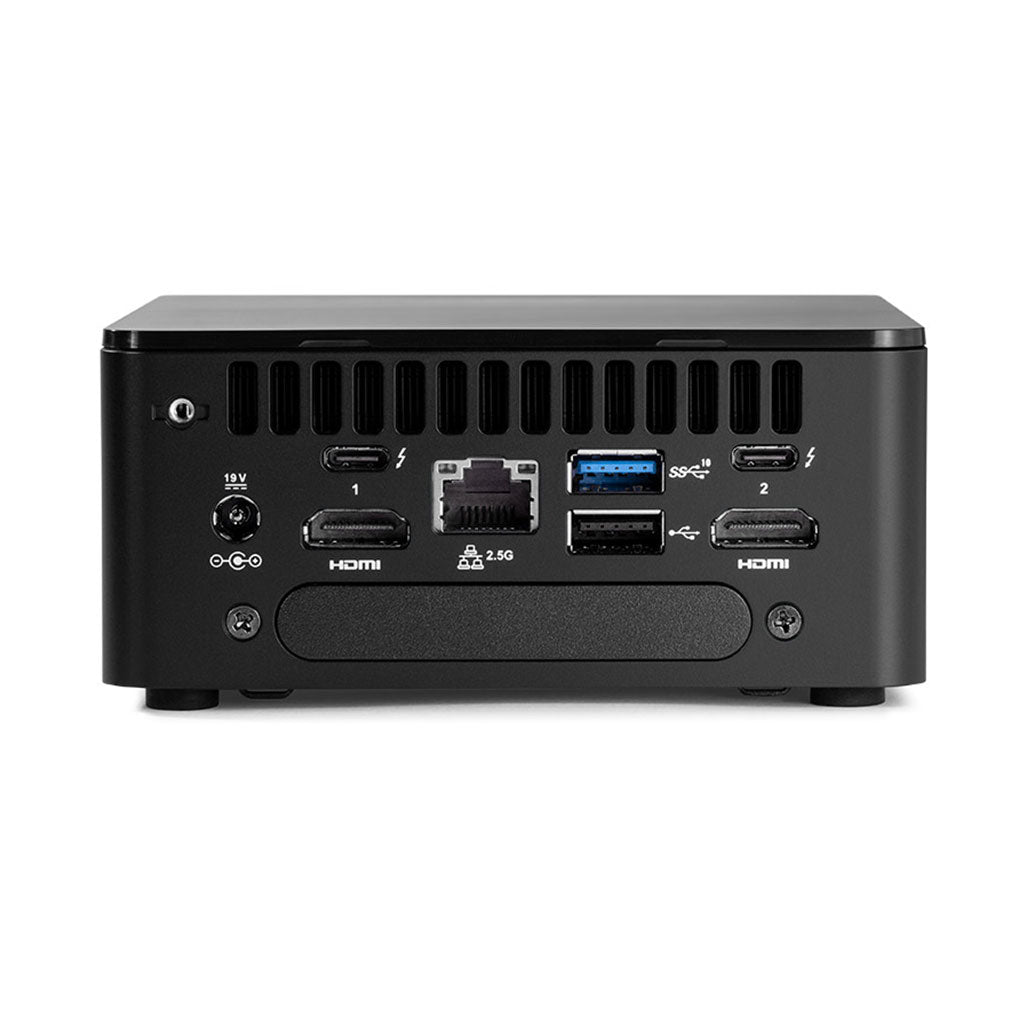

USB Configuration

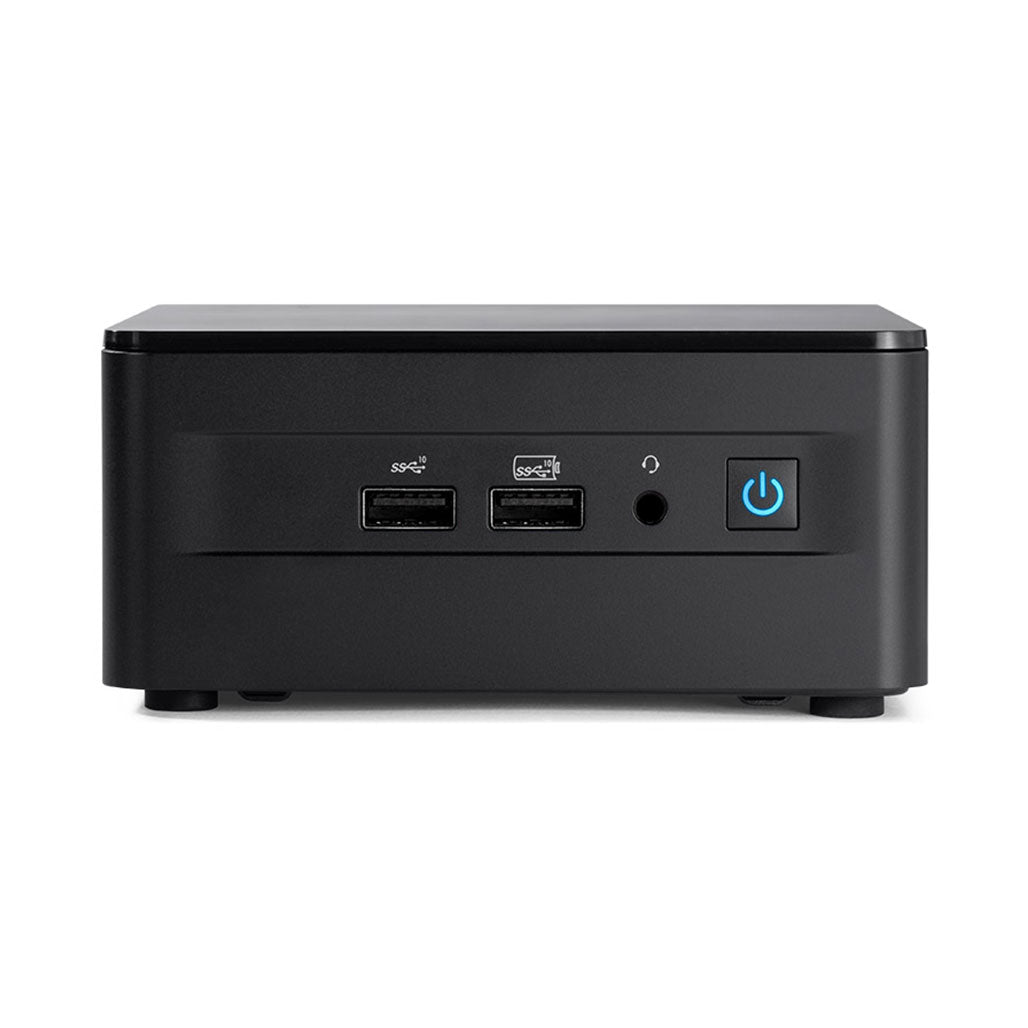

Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)

Total # of SATA Ports

1

Serial Port via Internal Header

No

Audio (back channel + front channel)

Front panel: 3.5mm headphone/mic jack

Integrated LAN

Intel® Ethernet Controller i225-V

Integrated Wireless*

Intel® Wi-Fi 6E AX211(Gig+)

Integrated Bluetooth

Yes

# of Thunderbolt™ Ports

2x Thunderbolt™ 4

Advanced Technologies

Intel® Optane™ Memory Supported*

No

Intel® Virtualization Technology for Directed I/O (VT-d)*

Yes

Intel® ME Firmware Version

16

Intel® HD Audio Technology

Yes

Intel® Virtualization Technology (VT-x)*

Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes

Advanced Technologies

Intel® AES New Instructions

Yes
