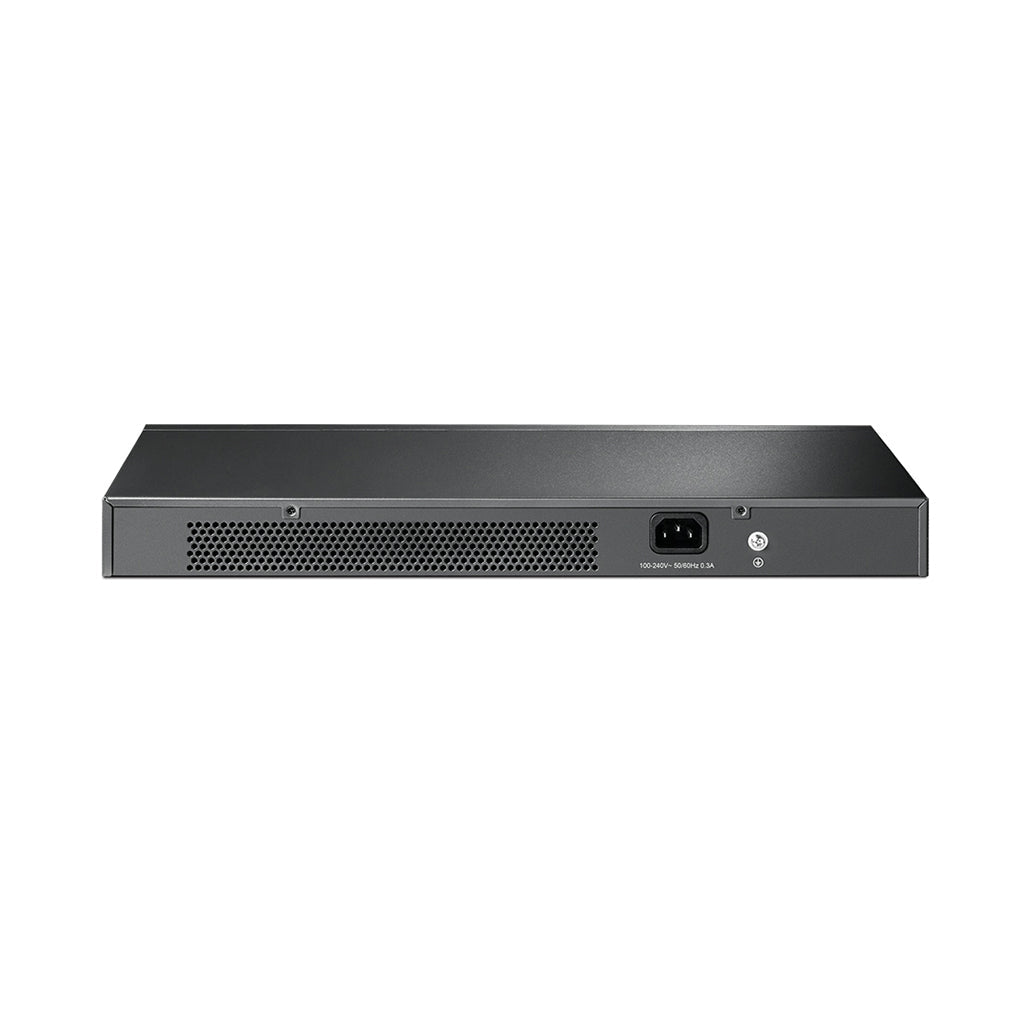

The TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch is engineered to enhance network performance while providing an eco-friendly solution. Designed for easy integration into existing networks, this switch supports 16 Gigabit RJ45 ports, all of which offer auto MDI/MDIX functionality for a hassle-free setup. With its ability to handle speeds up to 1000 Mbps, it is an ideal upgrade for businesses looking to improve their network infrastructure.
Equipped with innovative energy-efficient technology, the TL-SG1016 optimizes power consumption, reducing operational costs and minimizing environmental impact. It automatically adjusts its power usage based on link status, making it a cost-effective and environmentally responsible choice. Additionally, 80% of its packaging material is recyclable, further supporting sustainability efforts.
Key Features
- 16 Gigabit Ports: Features 16× 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, allowing for simple plug-and-play installation.
- Energy Efficiency: Utilizes advanced energy-efficient technology to lower power consumption, with up to 80% of packaging material being recyclable.
- High Performance: Delivers high-speed data transfers with a switching capacity of 32 Gbps and supports Jumbo Frames of up to 10KB. The switch handles full and half-duplex modes efficiently, alleviating traffic congestion.
- Rack-Mountable Design: Comes with a standard 19-inch rack-mountable steel case, suitable for integration into server racks and data centers.
- Ease of Use: Auto MDI/MDIX and auto-negotiation features simplify installation, eliminating the need for crossover cables and ensuring optimal performance across network devices.
Specifications
Hardware Features
-
Standards and Protocols:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
-
Interface:
- 16× 10/100/1000 Mbps RJ45 Ports
- Auto Negotiation/Auto MDI/MDIX
-
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Power Consumption: Maximum: 9.26W (220V/50Hz)
- Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
- Mounting: Rack Mountable
- Max Power Consumption: 10.4W
- Max Heat Dissipation: 35.6 BTU/h
Performance
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.8 Mpps
- MAC Address Table: 8K
-
Advanced Functions:
- Isolation Mode: Ports 1-14
- Loop Prevention: Ports 1-16
- Jumbo Frame: 10KB
- QoS: 802.1p/DSCP QoS (Applicable to V12 and later versions)
- Green Technology: Yes
- Transfer Method: Store-and-Forward
Others
- Certification: FCC, RoHS
-
Package Contents:
- 16-Port Gigabit Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
-
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Conclusion
The TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch offers an effective solution for upgrading to a high-performance network infrastructure. With its energy-efficient features, robust performance, and flexible rack-mountable design, it meets the demands of growing businesses while supporting sustainability. This switch is an excellent choice for those seeking to enhance their network capabilities while minimizing their environmental impact.
