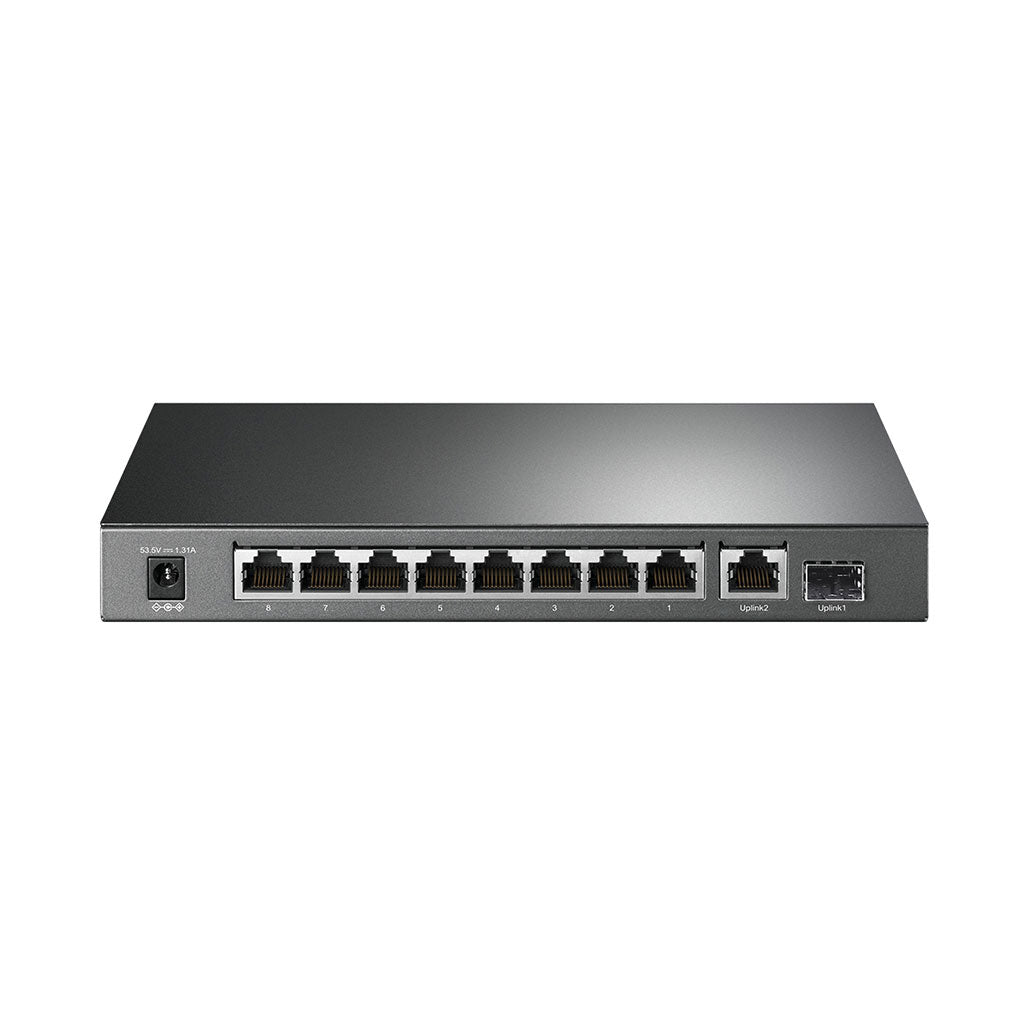

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8 PoE+ Ports - High Power and Performance

The TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8 PoE+ ports is designed to enhance your network with reliable power and data transmission over a single cable. Featuring 9 Gigabit RJ45 ports and 1 Gigabit SFP port, this switch ensures seamless integration into your existing network infrastructure. With 8 PoE+ ports, it delivers up to 30W per port and a total power budget of 63W, making it ideal for connecting PoE-enabled devices such as IP cameras, access points, and VoIP phones. The switch supports IEEE 802.3af/at standards and includes advanced features like 802.1p/DSCP QoS for prioritizing latency-sensitive traffic, ensuring smooth and efficient performance for your critical applications.

Designed for ease of use, the TP-Link TL-SG1210P requires no configuration or installation, offering a true plug-and-play experience. The fanless design ensures silent operation, making it suitable for any home or office environment. Its robust metal casing provides durability, while the compact form factor allows for flexible placement options. With a switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps, this switch handles high volumes of network traffic with ease, delivering reliable and uninterrupted connectivity.

Key Features:

1. 10-Port Gigabit Switch: Includes 9 RJ45 Gigabit ports and 1 Gigabit SFP slot, offering versatile connectivity options for high-speed network expansion.

2. 8 PoE+ Ports: Equipped with 8 PoE+ ports, the switch supports IEEE 802.3af/at standards, providing up to 30W per port and a total power budget of 63W, ideal for powering IP cameras, access points, and other PoE devices.

3. High Performance: With a switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps, the switch ensures efficient data handling, reducing latency and enhancing overall network performance.

4. Plug-and-Play Installation: The switch offers hassle-free deployment with no configuration required, making it perfect for users who need quick and straightforward network setup.

5. Silent and Durable Design: The fanless construction ensures quiet operation, while the sturdy metal casing provides durability and protection in various environments.

6. Advanced Network Features: Supports 802.1p/DSCP QoS for prioritizing important traffic, IGMP snooping for optimized multicast applications, and 802.3x flow control for smooth data transmission.

7. Energy-Efficient Operation: Designed to minimize power consumption, the switch operates efficiently, with a maximum power consumption of 78.13 W when all PoE devices are connected.

Rewritten Specifications:

Hardware Features

• Interface: 8 PoE+ 10/100/1000Mbps RJ45 Ports, 1 10/100/1000Mbps RJ45 Port, 1 Gigabit SFP Slot
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
  • 1000BASE-X MMF, SMF
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate: 14.88 Mpps
• PoE+ Ports: Standard: 802.3at/802.3af compliant, Ports: 1-8, PoE Power Budget: 63W
• MAC Address Table: 4K
• Jumbo Frame: 16 KB
• Switching Capacity: 20 Gbps
• Dimensions (W x D x H): 209 × 126 × 26 mm
• Max Power Consumption: 7.11 W (no PD connected), 78.13 W (with 63W PD connected)
• Max Heat Dissipation: 24.25 BTU/h (no PD connected), 266.42 BTU/h (with 63W PD connected)

Software Features

• Advanced Features: Compatible with IEEE 802.3af/at Compliant PDs, EEE802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping
• Transmission Method: Store-and-Forward

Others

• Certification: CE, FCC, RoHS
• Package Contents: TL-SG1210P, Power Adapter, Installation Guide
• Environment: Operating Temperature: 0°C40°C (32°F104°F), Storage Temperature: -40°C70°C (-40°F158°F), Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5%~90% non-condensing

Conclusion:

The TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8 PoE+ ports offers a robust and reliable solution for expanding your network with high-speed connections and PoE capabilities. Its plug-and-play design, advanced features, and durable construction make it a perfect choice for enhancing connectivity in both home and professional settings.
