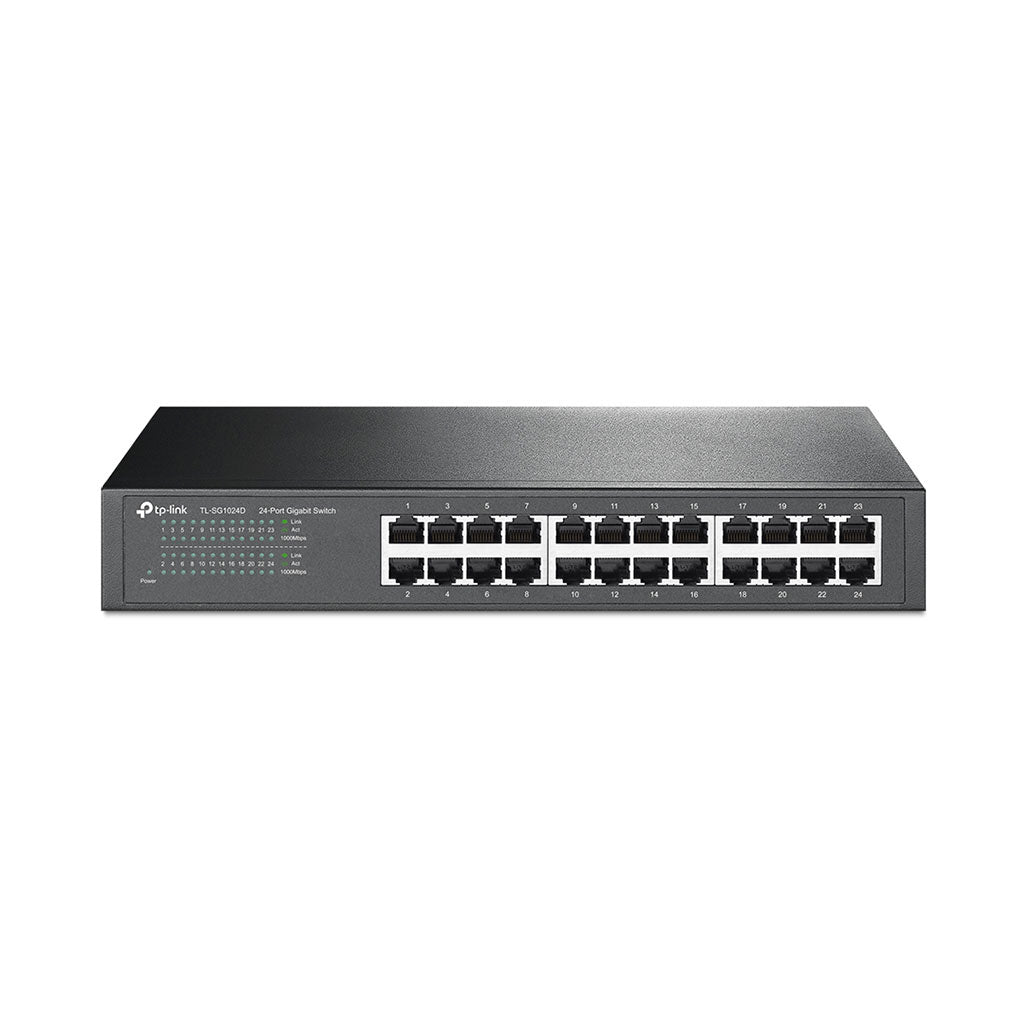

The TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch provides an efficient and reliable solution for expanding your network with high-speed connectivity. Featuring 24 auto-negotiation RJ45 ports, this switch is designed to deliver seamless data transfers at gigabit speeds, making it an ideal choice for small to medium-sized businesses looking to enhance their network performance. With its plug-and-play design, no complex configurations are needed—just connect your devices and start enjoying a high-performance network immediately.
This switch incorporates innovative energy-efficient technology, adjusting power consumption based on link status and cable length, which helps reduce energy costs and the environmental impact of your network. The fanless design ensures quiet operation, while the compact steel case allows for both desktop and rack-mount installations, providing flexibility to suit various network setups.
Key Features
- 24 Gigabit Ports: Equipped with 24× 10/100/1000 Mbps RJ45 ports that support Auto MDI/MDIX, allowing for easy, plug-and-play connectivity without the need for crossover cables.
- Energy-Efficient Technology: TP-Link Green Technology reduces power consumption by adjusting based on link status and cable length, providing a cost-effective and eco-friendly networking solution.
- High Performance: With a 48 Gbps switching capacity, 35.7 Mpps packet forwarding rate, and support for 10KB Jumbo Frames, this switch ensures optimal performance for large file transfers and high-demand applications.
- Flexible Installation: The compact design supports both desktop and rack-mount installations, offering versatility for various networking environments. The included rackmount kits and rubber feet make setup simple and straightforward.
- User-Friendly Design: Auto-negotiation on each port senses the link speed of connected devices, optimizing for compatibility and performance without manual adjustments.
Specifications
Hardware Features
-
Standards and Protocols:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
-
Interface:
- 24× 10/100/1000 Mbps RJ45 Ports
- Auto Negotiation/Auto MDI/MDIX
-
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (maximum 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions (W x D x H): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
- Mounting: Rack Mountable
- Max Power Consumption: 13.62W
- Max Heat Dissipation: 46.44 BTU/h
Performance
- Switching Capacity: 48 Gbps
- Packet Forwarding Rate: 35.7 Mpps
- MAC Address Table: 8K
- Jumbo Frame: 10KB
- Green Technology: Yes
- Transfer Method: Store-and-Forward
Others
- Certification: FCC, RoHS
-
Package Contents:
- 24-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet
-
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Conclusion
The TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch offers a high-performance, energy-efficient solution for expanding your network's capacity. Its user-friendly plug-and-play design, combined with advanced features and flexible installation options, makes it an excellent choice for enhancing your network infrastructure with minimal effort.
