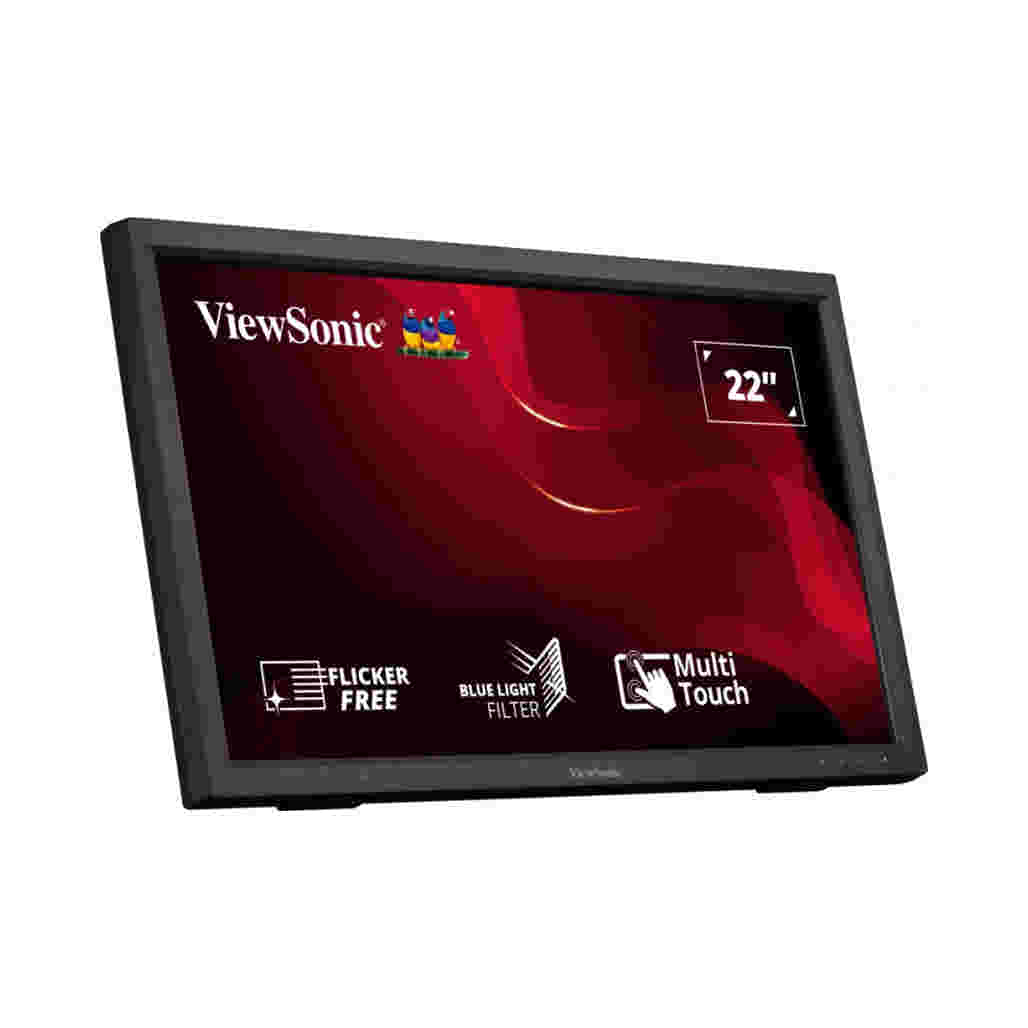

The ViewSonic® TD2223 is a 22-inch infrared (IR) touchscreen monitor designed to deliver a responsive multi-touch experience. The IR technology supports up to 10 simultaneous touch points, allowing for precise and fluid interaction with various applications. This monitor is well-suited for diverse environments such as interactive kiosks, educational settings, and collaborative workspaces, providing an efficient and engaging user experience.
Featuring a Full HD resolution of 1920 x 1080 pixels, the TD2223 ensures crisp and clear image quality for detailed visual content. The display is protected by a scratch-resistant 7H hardness screen, which enhances durability and maintains the monitor's pristine condition. The adjustable tilt functionality allows users to set the monitor at an optimal angle, accommodating different viewing preferences and enhancing comfort during extended use.
Key Features:
-
IR Touch Technology: Utilizing infrared technology, this monitor can detect up to 10 touch points simultaneously, providing an accurate and responsive touch experience. It supports interaction with styluses, fingers, and gloved hands, making it suitable for various applications and environments.
-
Wide Operating System Compatibility: The TD2223 supports major operating systems, including Windows, macOS, Android, Chrome OS, Linux, and Raspberry Pi, offering broad compatibility for diverse user needs.
-
Anti-Scratch Touchscreen: The monitor features a 7H hardness screen, which resists damage from sharp objects and extends the monitor’s longevity.
-
Adjustable Tilt: The monitor includes a tilt adjustment feature that allows for a 40-degree tilt range, ensuring comfortable viewing angles for users of different heights and preferences.
-
Full HD Resolution: With a resolution of 1920 x 1080, the TD2223 delivers high-definition images, enhancing clarity and detail for an improved viewing experience.
-
Dual Integrated Speakers: Built-in 2-watt speakers provide a better audiovisual experience by integrating sound directly into the monitor without requiring external speakers.
-
Enhanced Viewing Comfort: Equipped with Flicker-Free technology and a Blue Light Filter, the monitor helps to reduce eye strain and fatigue during prolonged use.
-
Versatile Connectivity Options: The TD2223 offers multiple connectivity options including VGA, HDMI, DVI, and USB ports, facilitating easy connection to various devices and peripherals.
Specifications:
- Display Size: 22 inches
- Viewable Area: 21.5 inches
- Panel Type: TN Technology
- Resolution: 1920 x 1080
- Resolution Type: FHD (Full HD)
- Static Contrast Ratio: 1,000:1 (typ)
- Dynamic Contrast Ratio: 20M:1
- Light Source: LED
- Brightness: 250 cd/m² (typ)
- Colors: 7M
- Color Space Support: 8 bit (6 bit + Hi-FRC)
- Aspect Ratio: 16:9
- Response Time (Typical GTG): 5ms
- Response Time (GTG w/OD): 5ms
- Response Time (Typical Tr+Tf): 5ms
- Viewing Angles: 170º horizontal, 160º vertical
- Backlight Life (Hours): 30,000 Hrs (Min)
- Curvature: Flat
- Refresh Rate (Hz): 75
- Blue Light Filter: Yes
- Flicker-Free: Yes
- Color Gamut: NTSC: 72% (typ), sRGB: 103% (typ)
- Pixel Size: 0.248 mm (H) x 0.248 mm (V)
- Touch Screen: IR, 10-point multi-touch
- Surface Treatment: Glossy, Hard Coating (7H)
- Cover Glass Thickness: 2mm
Compatibility:
- PC Resolution (max): 1920x1080
- Mac® Resolution (max): 1920x1080
- PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
- Mac® Resolution (min): 1920x1080
Connector:
- VGA: 1
- USB 2.0 Type A: 2
- USB 2.0 Type B: 1
- 5mm Audio In: 1
- 5mm Audio Out: 1
- HDMI 1.4: 1
- DVI-D: 1
- Power in: 3-pin Socket (IEC C14 / CEE22)
Audio:
- Internal Speakers: 2 Watts x 2
Power:
- Eco Mode (Conserve): 5W
- Eco Mode (optimized): 5W
- Consumption (typical): 5W
- Consumption (max): 14W
- Voltage: AC 100-240V
- Stand-by: 5W
- Power Supply: Internal Power Supply
Additional Hardware:
- Kensington Lock Slot: 1
- Cable Organization: Yes
Controls:
- Physical Controls: 1, 2, Up, Down, Power
- On-Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions:
- Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity (non-condensing): 20% to 90%
Wall Mount:
- VESA Compatible: 100 x 100 mm
Input Signal:
- Frequency Horizontal: 24 ~ 82KHz
- Frequency Vertical: 50 ~ 75Hz
Video Input:
- Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
- Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics:
- Tilt (Forward/Back): 20º / 40º
Weight:
- Net: 9 lbs (5 kg)
- Net Without Stand: 6 lbs (2.7 kg)
- Gross: 12 lbs (5.4 kg)
Dimensions:
-
Packaging (in.): 8 x 15.9 x 6.5
-
Physical (in.): 5 x 13.1 x 4
-
Physical Without Stand (in.): 5 x 12.5 x 2.4
-
Packaging (mm): 580 x 405 x 164
-
Physical (mm): 521 x 334 x 101
-
Physical Without Stand (mm): 521 x 318 x 61
General:
- Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, VCCI, PSE, BIS, CCC, China RoHS, China Energy Label, CECP
- Package Contents: TD2223 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Power Management: Energy Star standards, EPEAT
The ViewSonic® TD2223 offers a high level of touch accuracy and durability combined with multiple connectivity options and adjustable viewing angles, making it a strong choice for environments that demand both reliability and flexibility.
